AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

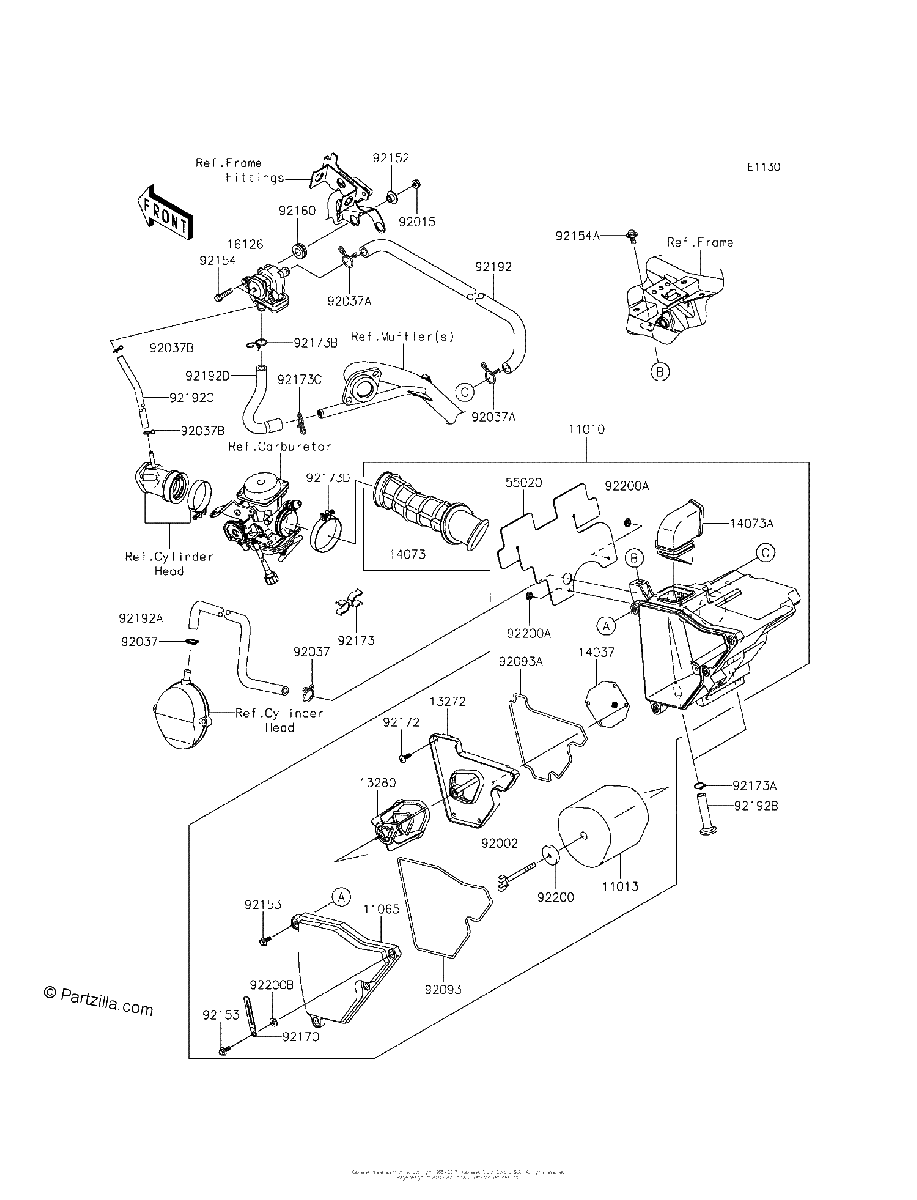

Diagrama de AIR CLEANER

Repuestos

#11010
11010-0803
FILTER Assembly AIR
$235.88¢117 938
1
#11013
11013-0025
ELEMENT-AIR FILTER
$9.40¢4 700
1
#11065
11065-0845
CAP
$20.02¢10 013
1
#13272
13272-0028
PLATE
$56.25¢28 125
1
#13280
13280-0253
HOLDER
$36.89¢18 444
1
#14037
14037-0074
SCREEN
$9.90¢4 950
1
#14073
14073-0224
DUCT,CARBURETOR
$24.82¢12 413
1
#14073A
14073-0791
DUCT,INTAKE
$29.54¢14 769
1
#16126
16126-0715
VALVE,AIR SWITCH
$147.91¢73 956
1
#55020
55020-0541
GUARD
$20.36¢10 181
1
#92002
92002-1904
BOLT
$9.83¢4 913
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92037
92037-1271
CLAMP,12.5MM
$2.25¢1 125
1
#92037B
92037-1712
CLAMP
$4.96¢2 481
1
#92037A
92037-1593
CLAMP
$6.35¢3 175
1
#92093
92093-0094
SEAL,L=620
$11.55¢5 775
1
#92093A
92093-0103
SEAL,L=520
$9.83¢4 913
1
#92152
92152-0854
COLLAR
$2.48¢1 238
1
#92153
92153-1882
BOLT,WP,5X14
$3.89¢1 944
1
#92154
92154-1156
BOLT,FLANGED,6X25
$1.96¢981
1
#92154A
92154-1231
BOLT,FLANGED,6X14
$2.73¢1 363
1
#92160
92160-1278
DAMPER
$4.36¢2 181
1
#92170
92170-1514
CLAMP
$4.29¢2 144
1
#92172
92172-0177
SCREW,5X16
$2.41¢1 206
1
#92173C
92173-0765
CLAMP
$1.72¢862
1
#92173D
92173-1104
CLAMP
$3.56¢1 781
1
#92173A
92173-0179
CLAMP,11.6MM
$1.29¢644
1
#92173B
92173-0192
CLAMP,14MM | [CA]
$3.85¢1 925
1
#92173
92173-0081
CLAMP
$5.55¢2 775
1
#92192B
92192-0943
TUBE,A/C-DRAIN
$3.04¢1 519
1
#92192A
92192-0839
TUBE,BREATHER
$21.19¢10 594
1
#92192C
92192-1242
TUBE,CARB. HOLDER-ASV
$17.10¢8 550
1
#92192D
92192-1337
TUBE,ASV-EX PIPE
$12.52¢6 262
1
#92192
92192-0474
TUBE,ASV-AIR CLEANER
$15.70¢7 850
1
#92200A
92200-0529
WASHER
$1.99¢994
1
#92200
92200-0394
WASHER,6.5X26X2
$3.17¢1 588
1
#92200B
92200-0562
WASHER,6.5X13X2.0
$5.79¢2 894
1
