CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

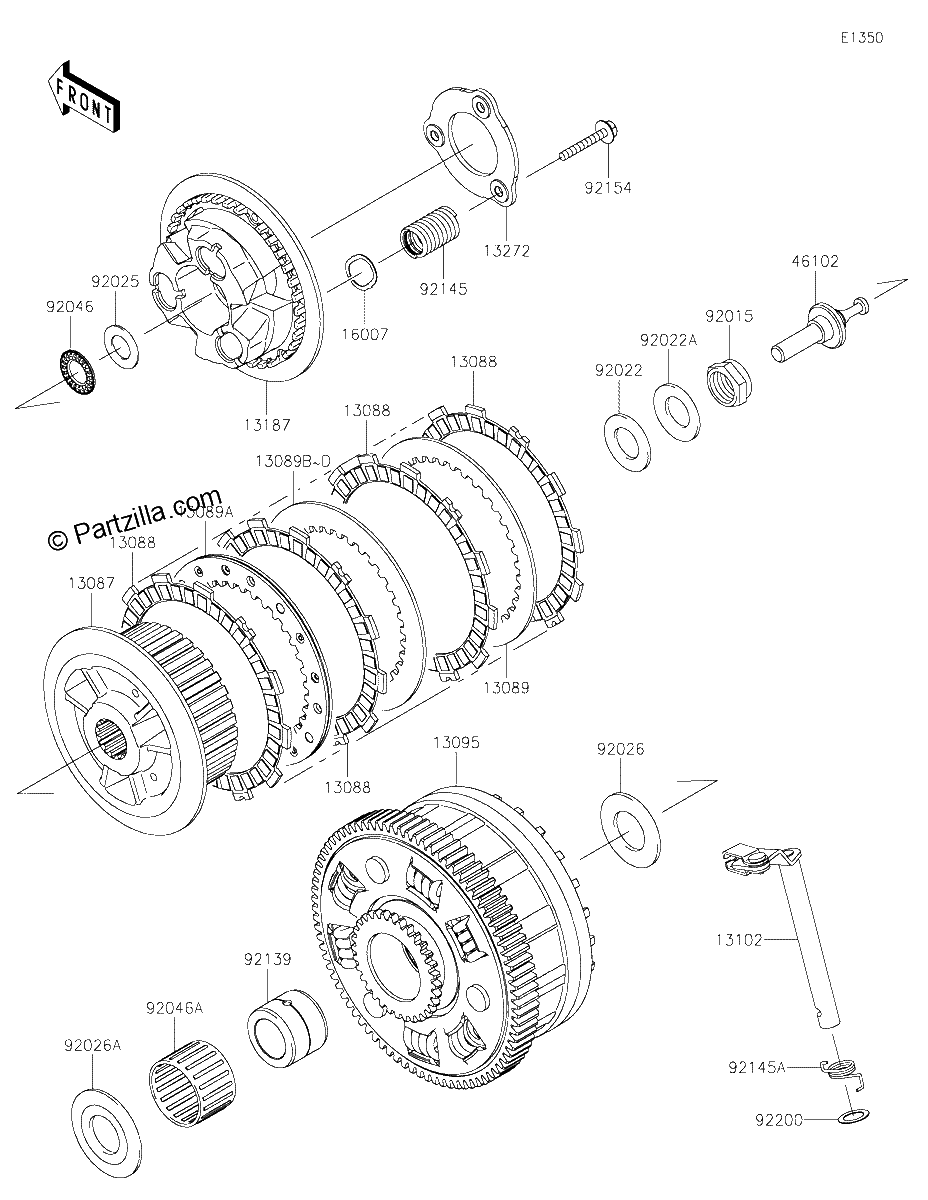

Diagrama de CLUTCH

Repuestos

#13087
13087-0583
HUB-CLUTCH
$304.75¢152 375
1
#13088
13088-0568
PLATE-FRICTION
$21.76¢10 879
1
#13089
13089-0023
PLATE-CLUTCH,T=2.3
$13.22¢6 613
1
#13089B
13089-1115
PLATE CLUTCH,T=2.6
$11.72¢5 859
1
#13089B
13089-1084
PLATE-CLUTCH,T=2.3
$11.66¢5 831
1
#13089B
13089-1073
PLATE-CLUTCH,T=2.0
$11.66¢5 831
1
#13089A
13089-0024
PLATE-CLUTCH,SPG COMP
$55.80¢27 899
1
#13095
13095-0601
HOUSING-COMP-CLUTCH
$607.31¢303 657
1
#13102
13102-0075
RELEASE-COMP-CLUTCH
$66.42¢33 212
1
#13187
13187-0031
PLATE-CLUTCH OPERATING
$132.62¢66 309
1
#13272
13272-1413
PLATE
$15.23¢7 613
1
#16007
16007-0711
SEAT SPRING
$3.71¢1 857
1
#46102
46102-0621
ROD
$56.18¢28 089
1
#92015
92015-1555
NUT,20MM
$11.93¢5 963
1
#92022A
92022-1868
WASHER,20.3X36X3.7
$8.68¢4 341
1
#92022
92022-1116
WASHER,20.3X36X2.3
$7.84¢3 922
1
#92025
92025-1137
SHIM,15.3X27.5X1.20
$7.84¢3 922
1
#92026A
92026-1497
SPACER
$11.66¢5 831
1
#92026
92026-022
SPACER,25.5X47X2.5
$10.32¢5 158
1
#92046A
92046-1263
BEARING NEEDLE,K38X43X28.8X
$30.42¢15 209
1
#92046
92046-1052
BEARING-NEEDLE,AXK1102
$13.17¢6 584
1
#92139
92139-0067
BUSHING,25X38X29.05
$38.82¢19 412
1
#92145A
92145-1769
SPRING,RELEASE-COMP
$3.76¢1 880
1
#92145
92145-1745
SPRING
$7.93¢3 968
1
#92154
92154-1116
BOLT,FLANGED,6X35
$9.67¢4 836
1
#92200
92200-1487
WASHER,12X18.5X0.5
$2.33¢1 167
1
