GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

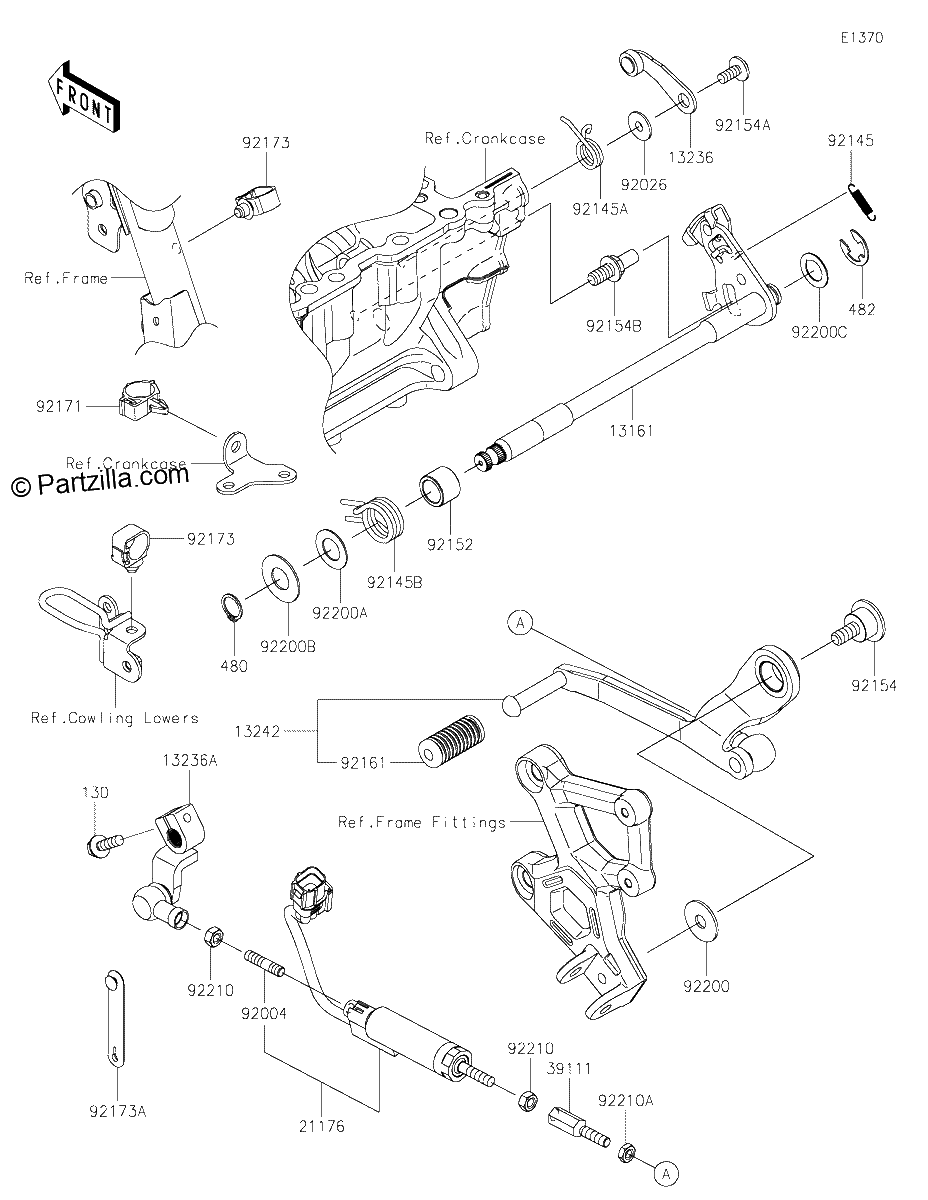

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#130
130CB0620
BOLT-FLANGED,6X20
$7.00¢3 502
1
#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$3.79¢1 897
1
#13161
13161-0609
LEVER COMP CHANGE SHAFT
$81.45¢40 727
1
#13236
13236-0794
LEVER-COMP,POSITION
$10.78¢5 388
1
#13236A
13236-0858
LEVER COMP
$54.65¢27 324
1
#13242
13242-0173
LEVER Assembly CHANGE
$51.82¢25 909
1
#21176
21176-0992
SENSOR,QUICK SHIFTER
$247.70¢123 849
1
#39111
39111-0382
ROD TIE
$9.23¢4 617
1
#92004
92004-0793
STUD,6X20
$4.88¢2 438
1
#92026
92026-1217
SPACER
$5.01¢2 507
1
#92145
92145-1813
SPRING,PAWL RETURN
$0.95¢477
1
#92145B
92145-1958
SPRING,RETURN
$7.89¢3 944
1
#92145A
92145-1814
SPRING,DRUM POSITION
$0.95¢477
1
#92152
92152-2370
COLLAR,14.2X19.9X14.3
$4.40¢2 202
1
#92154B
92154-4400
BOLT,RETURN SPRING
$2.92¢1 461
1
#92154A
92154-2731
BOLT,SOCKET,6X14
$1.95¢977
1
#92154
92154-1884
BOLT
$31.02¢15 508
1
#92161
92161-1466
DAMPER,CHANGE PEDAL
$2.77¢1 386
1
#92171
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92173A
92173-2199
CLAMP
$1.43¢713
1
#92173
92173-0868
CLAMP,HOLDER CLIP
$2.53¢1 265
1
#92200C
92200-2559
WASHER,CHANGE SHAFT
$1.15¢575
1
#92200B
92200-2295
WASHER,14.3X30X1.2
$2.28¢1 138
1
#92200A
92200-1933
WASHER,14.2X25X1
$0.75¢374
1
#92200
92200-1446
WASHER
$1.76¢880
1
#92210
92210-1596
NUT,6MM
$2.08¢1 041
1
#92210A
92210-1597
NUT,LEFT HANDED,6MM
$2.63¢1 317
1
