CHASSIS ELECTRICAL EQUIPMENT CN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

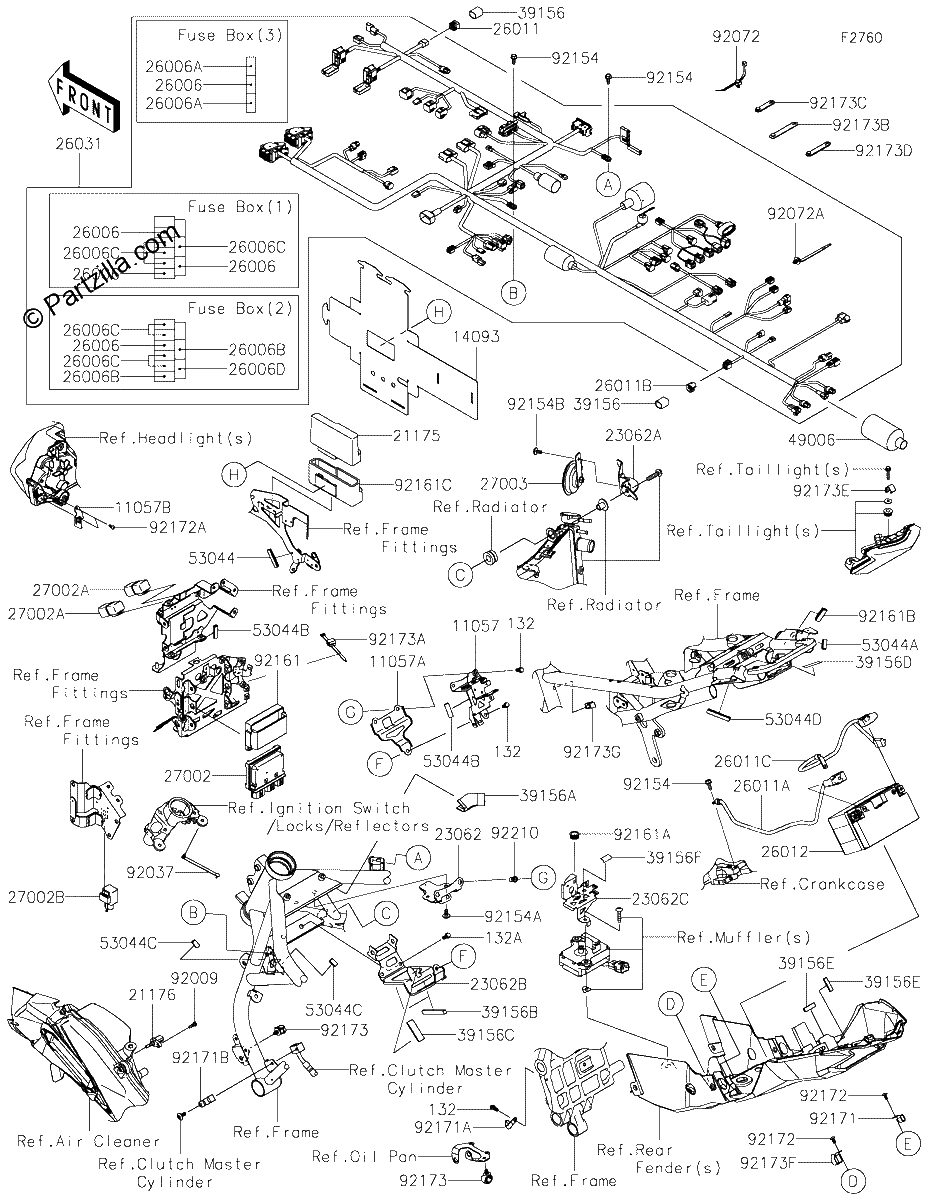

Diagrama de CHASSIS ELECTRICAL EQUIPMENT CN

Repuestos

#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#132A
132BA0616
BOLT FLANGED SMALL,6X16
$1.39¢696
1
#11057
11057-2939
BRACKET,HARNESS CONNECTOR
$19.15¢9 574
1
#11057A
11057-2972
BRACKET,CANISTER,UPP
$7.76¢3 881
1
#11057B
11057-4159
BRACKET,FR SIGNAL CONNECTOR
$5.28¢2 639
1
#14093
14093-1216
COVER,KECS ECU
$179.05¢89 527
1
#21175
21175-1670
CONTROL UNIT-ELECTRONIC,KECS
$1148.69¢574 344
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#23062
23062-1272
BRACKET COMP
$13.45¢6 727
1
#23062A
23062-1290
BRACKET COMP,HORN
$34.06¢17 031
1
#23062B
23062-1293
BRACKET COMP,CANISTER
$23.69¢11 845
1
#23062C
23062-1352
BRACKET-COMP
$24.30¢12 150
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006B
26006-0052
FUSE,MINI BLADE,2A,GRAY
$6.15¢3 076
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
1
#26011A
26011-0908
WIRE LEAD,BATTERY( )
$54.49¢27 244
1
#26011B
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
1
#26011C
26011-1906
WIRE LEAD,BATTERY(+)
$66.36¢33 178
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-3780
HARNESS,MAIN
No Disponible
1
#27002
27002-0050
RELAY Assembly
$149.93¢74 963
1
#27002A
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
1
#27003
27003-0156
HORN
$78.18¢39 088
1
#39156F
39156-2591
PAD,22X13X0.2
$0.90¢448
1
#39156E
39156-2495
PAD,30X15X1
$0.95¢477
1
#39156D
39156-2449
PAD,35X25X0.2
$1.44¢719
1
#39156
39156-1886
PAD,DIAG. CONNECTOR
$1.93¢966
1
#39156A
39156-2235
PAD,50X50X2
$1.66¢828
1
#39156B
39156-2269
PAD,7X70X7
$1.66¢828
1
#39156C
39156-2286
PAD,16X47X3
$1.15¢575
1
#49006
49006-0573
BOOT
$13.98¢6 992
1
#53044
53044-0012
TRIM,L=40
$2.61¢1 305
1
#53044A
53044-0596
TRIM,9X20
$3.96¢1 978
1
#53044B
53044-0632
TRIM,9X6.5X30
$4.27¢2 133
1
#53044C
53044-0657
TRIM,L=16
$12.06¢6 032
1
#53044D
53044-0699
TRIM,L=50
$4.54¢2 271
1
#92009
92009-1984
SCREW,TAPPING,5X16
$2.18¢1 092
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92072
92072-0066
BAND
$2.92¢1 461
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92154A
92154-0907
BOLT,SOCKET,6X14
$1.72¢862
1
#92154B
92154-4100
BOLT,SOCKET,6X12
$2.28¢1 138
1
#92161A
92161-0570
DAMPER
$1.59¢793
1
#92161
92161-0203
DAMPER,RELAY BOX
$10.79¢5 394
1
#92161B
92161-0833
DAMPER,30X20X2
$1.55¢776
1
#92161C
92161-2137
DAMPER,ECU
$24.40¢12 201
1
#92171
92171-0766
CLAMP
$5.32¢2 662
1
#92171A
92171-0813
CLAMP
$9.11¢4 554
1
#92171B
92171-0926
CLAMP
$7.93¢3 968
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92172A
92172-1248
SCREW,CROS,4X10
$1.28¢638
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173A
92173-0791
CLAMP
$11.56¢5 779
1
#92173B
92173-2194
CLAMP
$1.68¢839
1
#92173C
92173-2198
CLAMP
$1.43¢713
1
#92173D
92173-2199
CLAMP
$1.43¢713
1
#92173E
92173-2303
CLAMP
$9.66¢4 830
1
#92173F
92173-2308
CLAMP
$6.34¢3 168
1
#92173G
92173-2345
CLAMP
$2.46¢1 231
1
#92210
92210-1397
NUT,POP,6MM,L=15
$5.19¢2 593
1
