CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

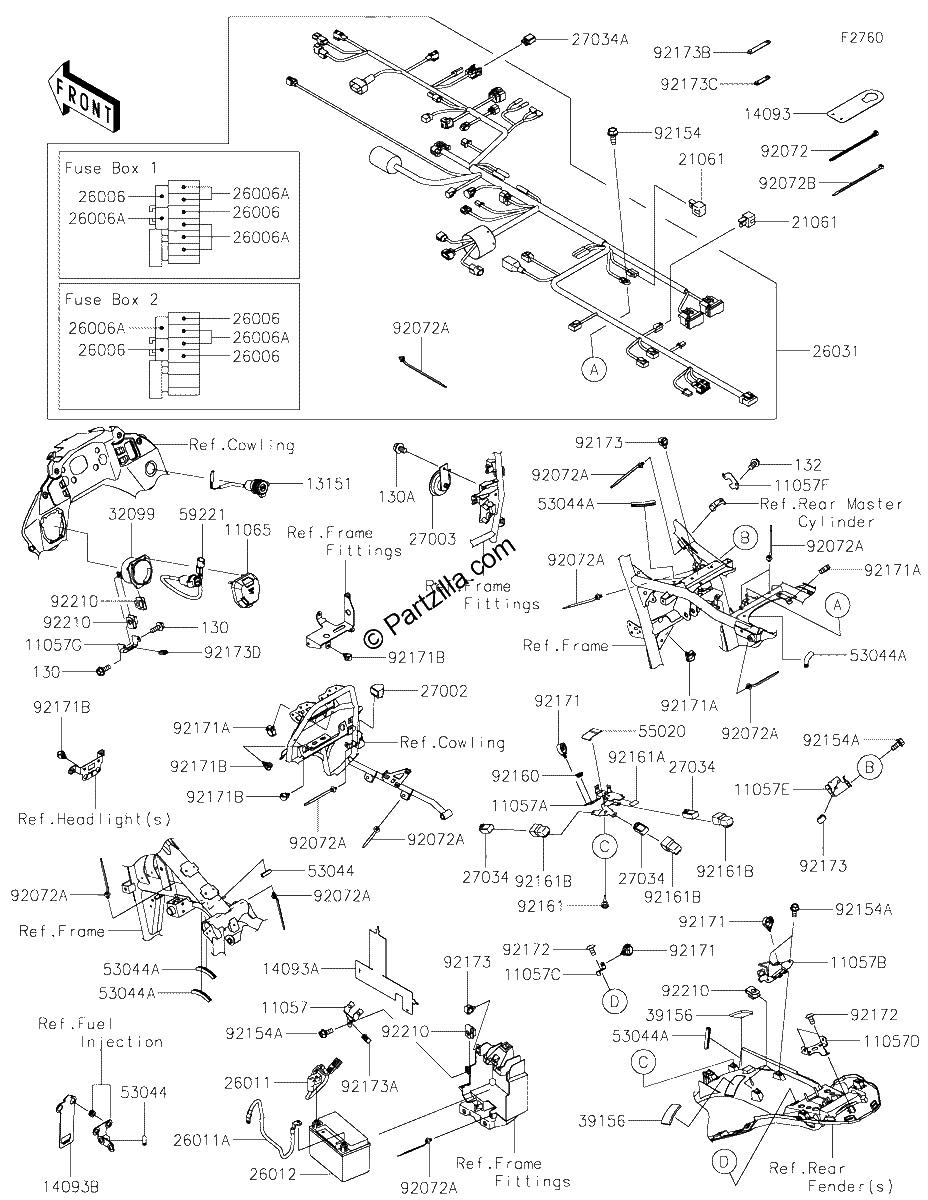

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0514
BOLT-FLANGED,5X14
$1.94¢969
1
#130A
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#132
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.94¢969
1
#11057
11057-4292
BRACKET,MAGNETIC SWITCH
$5.47¢2 738
1
#11057A
11057-4295
BRACKET,FUSE BOX
$6.89¢3 444
1
#11057B
11057-4298
BRACKET,RR HARNESS
$13.85¢6 925
1
#11057C
11057-4301
BRACKET,HARNESS GUIDE
$1.42¢712
1
#11057D
11057-4302
BRACKET,ECU
$4.56¢2 281
1
#11057E
11057-4378
BRACKET,RR SPEED SENSOR
$5.70¢2 850
1
#11057F
11057-4379
BRACKET,OXYGEN SENSOR
$2.48¢1 238
1
#11057G
11057-4390
BRACKET
$3.65¢1 825
1
#11065
11065-1425
CAP,USB
$20.14¢10 069
1
#13151
13151-0566
SWITCH-COMP,DC SOCKET
$189.34¢94 669
1
#14093
14093-1044
COVER,IGNITION SWITCH
$11.43¢5 713
1
#14093A
14093-1197
COVER,MAGNETIC SWITCH
$15.26¢7 631
1
#14093B
14093-1214
COVER
$11.43¢5 713
1
#21061
21061-1003
RECTIFIER
$35.54¢17 769
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-1935
WIRE LEAD,BATTERY(+)
$56.51¢28 256
1
#26011A
26011-1937
WIRE LEAD,BATTERY( )
$48.83¢24 413
1
#26012
26012-0608
BATTERY,FTX9-BS,12V 8AH
No Disponible
1
#26031
26031-3899
HARNESS,MAIN
$1089.56¢544 781
1
#27002
27002-0031
RELAY-ASSY,TURN SIGNAL
$28.38¢14 188
1
#27003
27003-0163
HORN
$84.98¢42 488
1
#27034A
27034-0014
RELAY
$43.79¢21 894
1
#27034
27034-0012
RELAY
$44.74¢22 369
1
#32099
32099-0822
CASE,USB
$15.74¢7 869
1
#39156
39156-2694
PAD,30X55X5
$1.52¢763
1
#53044
53044-0001
TRIM,L=30
$2.68¢1 338
1
#53044A
53044-0032
TRIM,L=60
$8.69¢4 344
1
#55020
55020-2334
GUARD,50X30
$3.28¢1 638
1
#59221
59221-0021
CONNECTOR CORD,USB
$163.14¢81 569
1
#92072
92072-1293
BAND,L=140
$6.85¢3 425
1
#92072A
92072-1414
BAND
$3.70¢1 850
1
#92072B
92072-3874
BAND,L=152
$4.39¢2 194
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92154A
92154-2893
BOLT,FLANGED,5X12
$0.78¢388
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92161
92161-0901
DAMPER
$3.60¢1 800
1
#92161A
92161-1367
DAMPER,12X23
$1.24¢619
1
#92161B
92161-2290
DAMPER
$6.18¢3 088
1
#92171
92171-0069
CLAMP,20MM DIA.
$2.68¢1 338
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.81¢1 906
1
#92171B
92171-1415
CLAMP,13MM DIA.
$1.99¢994
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173A
92173-0868
CLAMP,HOLDER CLIP
$2.75¢1 375
1
#92173B
92173-2194
CLAMP
$1.82¢913
1
#92173C
92173-2198
CLAMP
$1.55¢775
1
#92173D
92173-2464
CLAMP
$4.09¢2 044
1
#92210
92210-0935
NUT,PLATE,5MM
$1.88¢938
1
