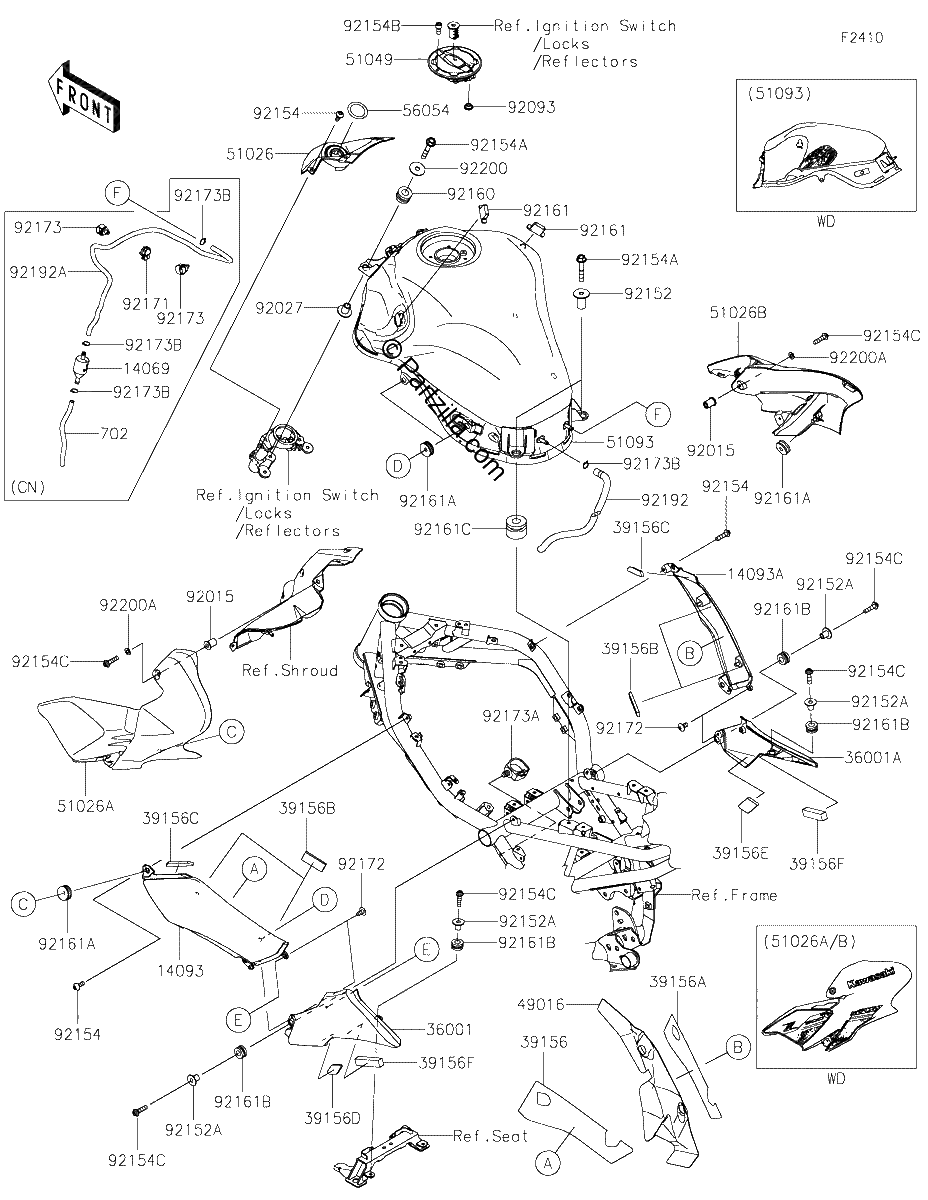

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#702
TUBE RUBBER,6X9X300
$5.41¢2 706
#14069
BREATHER,TANK
$6.71¢3 356
#14093
COVER,KNEE GRIP,LH
$26.35¢13 175
#14093A
COVER,KNEE GRIP,RH
$26.35¢13 175
#36001
COVER-SIDE,SEAT,LH,M.S.BLACK
$24.63¢12 313
#36001A
COVER SIDE,SEAT,Right Hand,M S BLACK
$24.63¢12 313
#39156
PAD,KNEE GRIP COVER,LH
$8.71¢4 356
#39156B
PAD,20X50X5
$1.38¢688
#39156A
PAD,KNEE GRIP COVER,RH
$8.71¢4 356
#39156C
PAD,10X76X5
$1.51¢756
#39156D
PAD,20X20X5
$1.38¢688
#39156E
PAD,25X50X5
$2.78¢1 388
#39156F
PAD,15X66X10
$2.09¢1 044
#49016
COVER-SEAL
$23.82¢11 913
#51026
COVER TANK,CNT
$19.88¢9 938
#51026A
COVER TANK,Left Hand,M S BLACK
$494.83¢247 413
#51026B
COVER TANK,Right Hand,M S BLACK
$494.83¢247 413
#51049
CAP-TANK
$173.96¢86 981
#51093
TANK COMP FUEL,M S BLACK
$1331.55¢665 775
#56054
MARK,IG. SWITCH
$18.54¢9 269
#92015
NUT,WELL,5MM
$7.26¢3 631
#92027
COLLAR,6.5X10X14.1
$5.45¢2 725
#92093
SEAL,FUEL TANK CAP
$7.72¢3 863
#92152A
COLLAR,5.6X8X11.2
$2.58¢1 288
#92152
COLLAR,6.3X12X22.6
$3.24¢1 619
#92154B
BOLT SOCKET,5X12
$1.61¢806
#92154A
BOLT-FLANGED,6X35
$1.09¢544
#92154C
BOLT,SOCKET,5X20
$2.00¢1 000
#92154
BOLT,SOCKET,5X12
$1.05¢525
#92160
DAMPER,10X20X12
$4.65¢2 325
#92161A
DAMPER
$3.93¢1 963
#92161B
DAMPER,8X16X8.6
$6.46¢3 231
#92161C
DAMPER,12X28X21
$4.60¢2 300
#92161
DAMPER
$5.26¢2 631
#92171
CLAMP,EDGE CLIP
$9.25¢4 625
#92172
SCREW,5X10
$1.35¢675
#92173A
CLAMP
$2.75¢1 375
#92173B
CLAMP,TUBE
$0.63¢313
#92173
CLAMP,12MM DIA.
$5.01¢2 506
#92192A
TUBE,6X9X670/30,BLUE
$14.74¢7 369
#92192
TUBE,6X9X670/30
$14.74¢7 369
#92200
WASHER,6.5X22X1.6
$3.93¢1 963
#92200A
WASHER,5.2X10X1
$0.55¢275
