FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

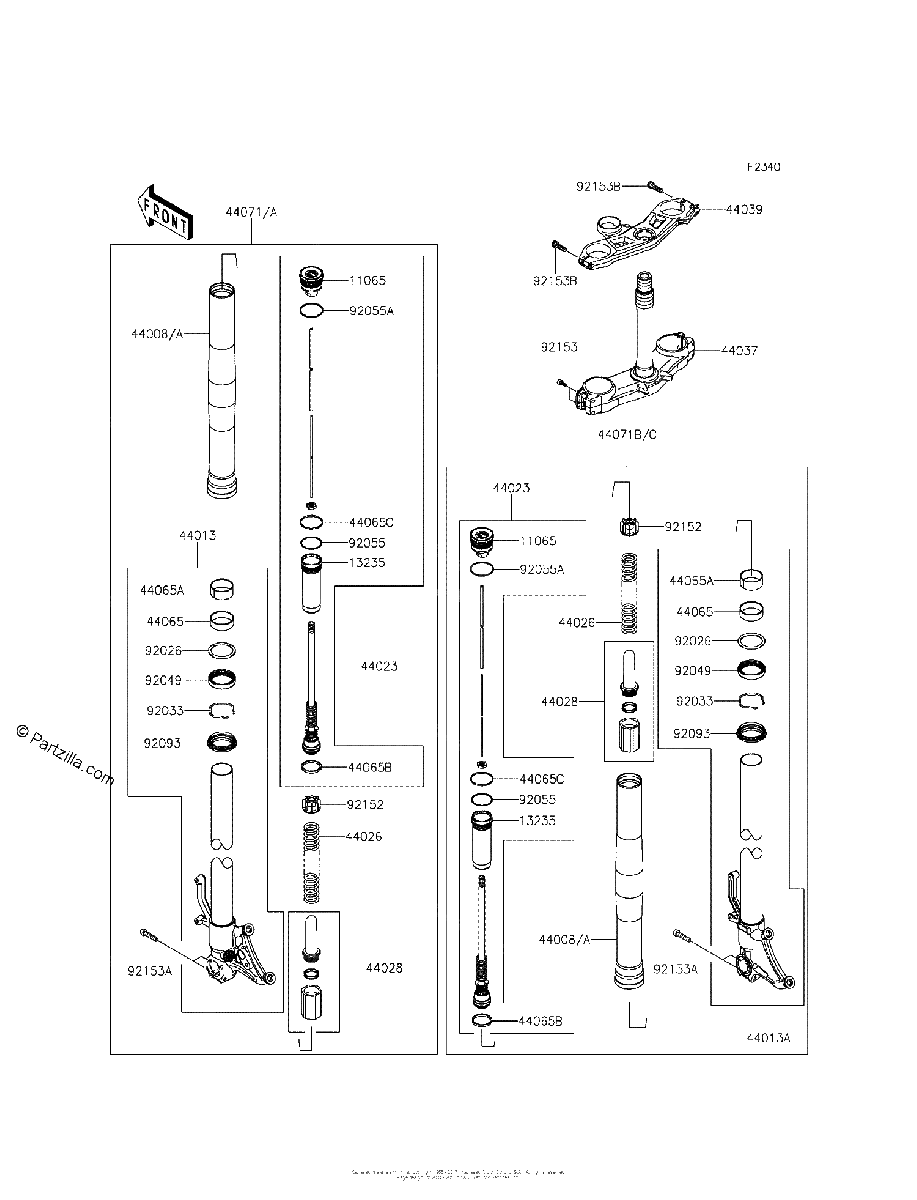

Diagrama de FRONT FORK

Repuestos

#11065
11065-0379-48W
CAP,FORK BOLT COMP,G B GREEN
$158.03¢79 013
1
#13235
13235-0006
GUIDE COMP
$148.28¢74 138
1
#44008
44008-0054-499
PIPE FORK OUTER,A BLACK
$558.71¢279 356
1
#44008
44008-0054-484
PIPE FORK OUTER,R GOLD
$558.71¢279 356
1
#44013A
44013-0163-48W
PIPE FORK INNER,Right Hand,G B GREEN
$696.38¢348 188
1
#44013
44013-0162-48W
PIPE FORK INNER,Left Hand,G B GREEN
$696.38¢348 188
1
#44023
44023-0092-48W
CYLINDER SET FORK,G B GREEN
$616.06¢308 031
1
#44026
44026-0154
SPRING FRONT FORK
$89.16¢44 581
1
#44028
44028-0005
GUIDE-FORK SPRING
$80.89¢40 444
1
#44037
44037-0114
HOLDER FORK UNDER
$695.71¢347 856
1
#44039
44039-0104-499
HOLDER FORK UPPER,A BLACK
$265.64¢132 819
1
#44065C
44065-0040
BUSHING-FRONT FORK
$20.96¢10 481
1
#44065B
44065-0039
BUSHING FRONT FORK
$6.69¢3 344
1
#44065A
44065-0038
BUSHING FRONT FORK,SLIDE
$9.56¢4 781
1
#44065
44065-0026
BUSHING FRONT FORK
$26.92¢13 462
1
#44071
44071-0699-50D
DAMPER-ASSY,FORK,LH,R.GOLD
$1685.86¢842 931
1
#44071B
44071-0700-50Q
DAMPER Assembly,FORK,Right Hand,A BLACK
$1614.90¢807 450
1
#44071B
44071-0700-50D
DAMPER Assembly,FORK,Right Hand,R GOLD
$1685.86¢842 931
1
#44071
44071-0699-50Q
DAMPER Assembly,FORK,Left Hand,A BLACK
$1614.90¢807 450
1
#92026
92026-0165
SPACER
$3.75¢1 875
1
#92033
92033-1222
RING-SNAP
$6.36¢3 181
1
#92049
92049-0064
SEAL-OIL
$26.63¢13 313
1
#92055A
92055-1497
RING-O,FORK CAP
$5.83¢2 913
1
#92055
92055-0215
RING-O
$5.26¢2 631
1
#92093
92093-0042
SEAL,DUST
$26.40¢13 200
1
#92152
92152-0930
COLLAR
$11.96¢5 981
1
#92153A
92153-0854
BOLT,SOCKET,8X35
$7.79¢3 894
1
#92153
92153-0853
BOLT
$7.79¢3 894
1
#92153B
92153-1625
BOLT,SOCKET,8X25
$4.61¢2 306
1
