MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

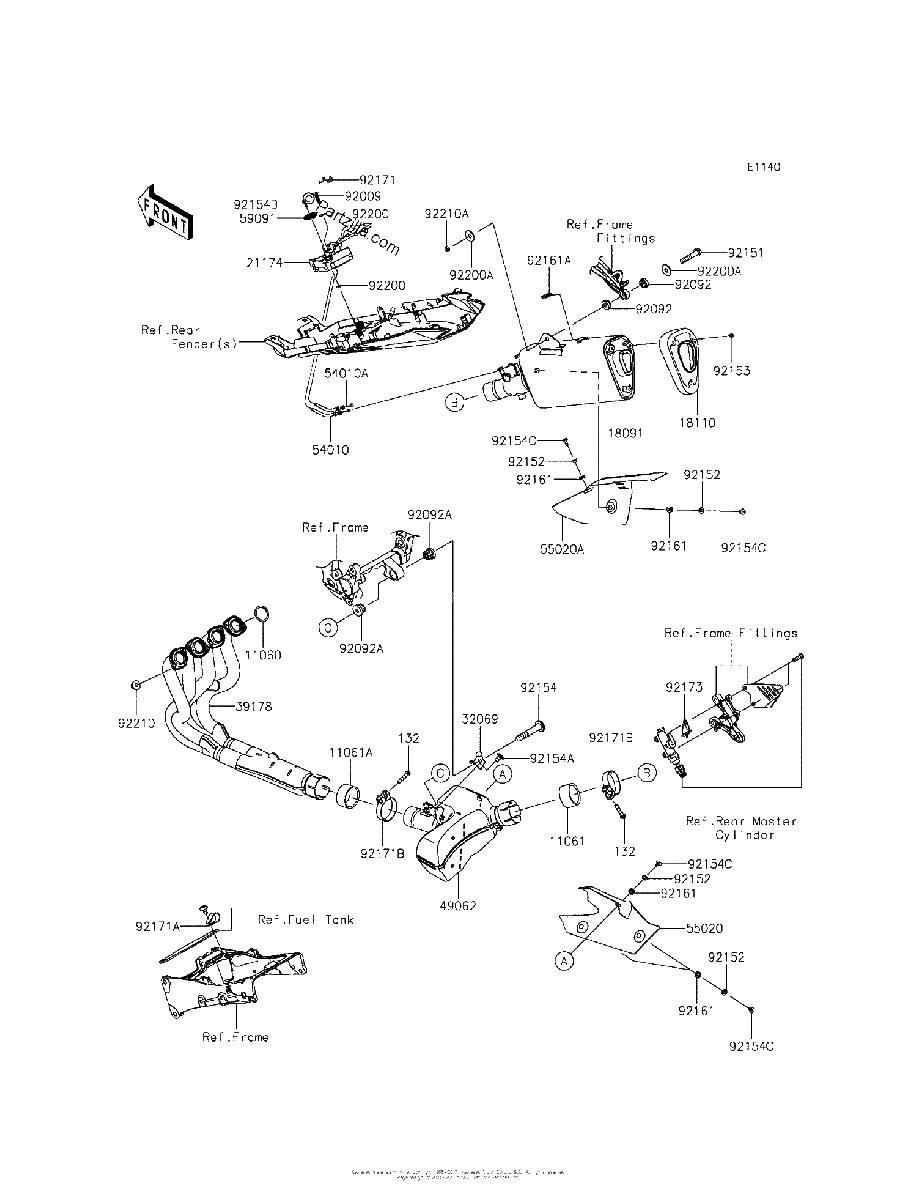

Diagrama de MUFFLER S

Repuestos

#132
132BC0840
BOLT FLANGED SMALL,8X40
$3.67¢1 838
1
#11060
11060-1203
GASKET,EXHAUST PIPE
$10.70¢5 350
1
#11061
11061-0447
GASKET,50.8X62X30
$26.91¢13 456
1
#11061A
11061-0448
GASKET,54X62X30
$23.04¢11 519
1
#18091
18091-0909
BODY-COMP-MUFFLER
$1299.54¢649 769
1
#18110
18110-0185
BODY END-MUFFLER
$159.71¢79 856
1
#21174
21174-0005
MOTOR-ELECTRIC
$430.91¢215 456
1
#32069
32069-0340
BRACKET MUFFLER
$11.38¢5 688
1
#39178
39178-0207
MANIFOLD-COMP-EXHAUST
$1673.11¢836 556
1
#49062
49062-0713
PIPE COMP EXHAUST
$1119.39¢559 694
1
#54010
54010-0592
CABLE,CLOSE
$100.57¢50 287
1
#54010A
54010-0595
CABLE,OPEN
No Disponible
1
#55020
55020-0864
GUARD,CHAMBER
$152.90¢76 450
1
#55020A
55020-0901
GUARD,FRONT COVER
$344.72¢172 362
1
#59091
59091-0007
PULLEY
$24.45¢12 225
1
#92009
92009-1481
SCREW,TAPPING,6X30
$4.65¢2 325
1
#92092A
92092-1087
BUSHING RUBBER,MUFFLER
$20.89¢10 444
1
#92092
92092-0018
BUSHING RUBBER
$11.44¢5 719
1
#92151
92151-1532
BOLT,FLANGED,8X40
$2.46¢1 231
1
#92152
92152-0286
COLLAR,6.3X8.3X16
$5.56¢2 781
1
#92153
92153-1758
BOLT,HEX HEAD,6X8
$2.13¢1 063
1
#92154A
92154-0126
BOLT,SOCKET,10X16
$8.75¢4 375
1
#92154B
92154-0217
BOLT,TORX,5X18
$3.83¢1 913
1
#92154C
92154-0907
BOLT,SOCKET,6X14
$1.88¢938
1
#92154
92154-0125
BOLT,SOCKET,10X61
$13.04¢6 519
1
#92161A
92161-1228
DAMPER
$8.79¢4 394
1
#92161
92161-0308
DAMPER
$4.11¢2 056
1
#92171A
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92171B
92171-1668
CLAMP,64.5MM
$22.88¢11 438
1
#92171
92171-0292
CLAMP
$11.43¢5 713
1
#92173
92173-1053
CLAMP
$13.45¢6 725
1
#92200
92200-0078
WASHER
$2.00¢1 000
1
#92200A
92200-0174
WASHER,8.0X22.0X1.5
$2.41¢1 206
1
#92210
92210-0076
NUT,8MM
$5.41¢2 706
1
#92210A
92210-0173
NUT,8MM
$2.00¢1 000
1
