SADDLEBAGS SIDE BAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

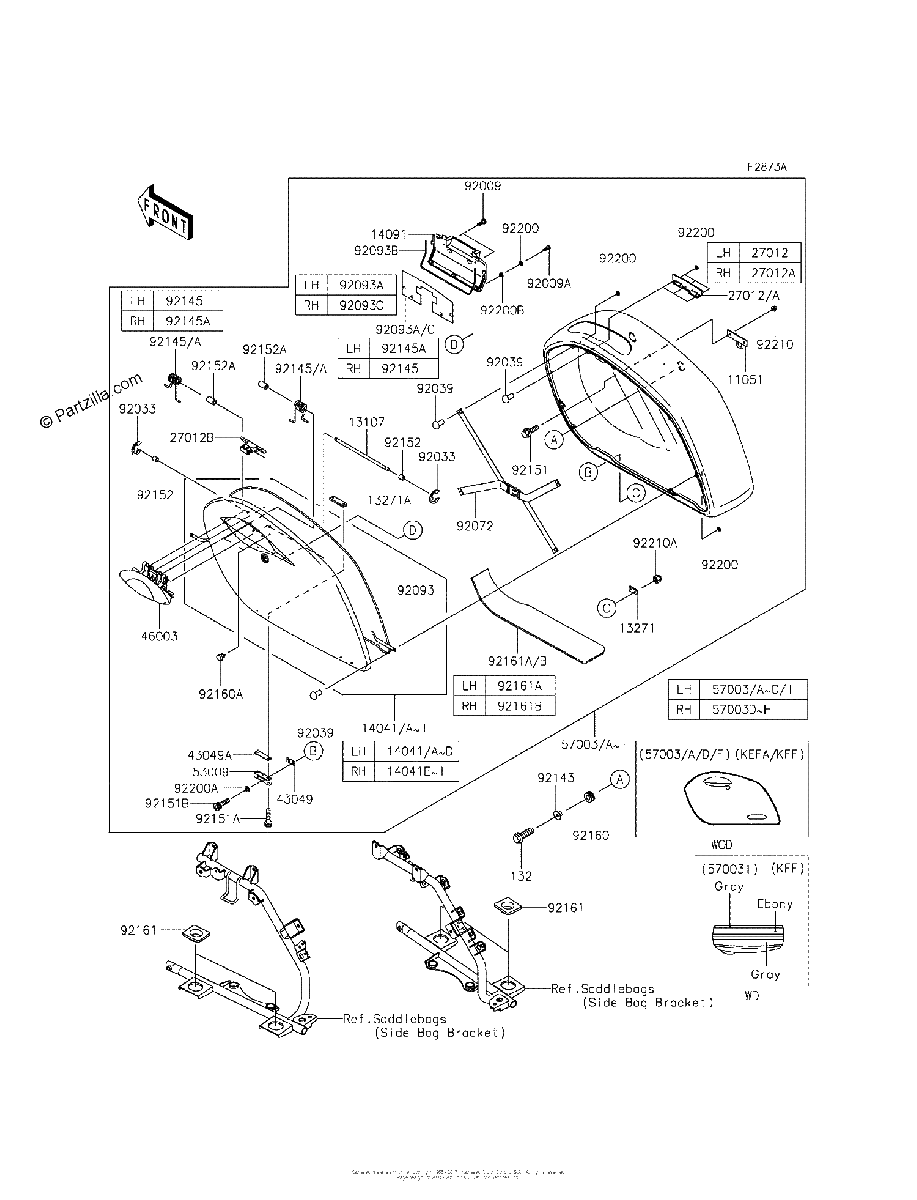

Diagrama de SADDLEBAGS SIDE BAG

Repuestos

#132
132BB0825
BOLT FLANGED SMALL,8X25
$3.77¢1 886
1
#11051
11051-1104
BRACKET,SIDE BAG BODY
$11.04¢5 520
1
#13107
13107-1403
SHAFT
$4.48¢2 242
1
#13271
13271-1146
PLATE
$4.04¢2 018
1
#13271A
13271-1147
PLATE
$8.39¢4 198
1
#14041
14041-0057-17L
COVER COMP,BAG,Right Hand,C B ORANGE
$300.94¢150 472
1
#14041
14041-0056-660
COVER COMP,BAG,Left Hand,M S BLACK
$286.14¢143 072
1
#14041
14041-0057-660
COVER COMP,BAG,Right Hand,M S BLACK
$286.14¢143 072
1
#14041
14041-0057-51P
COVER COMP,BAG,Right Hand,C L GREEN
$300.94¢150 472
1
#14041
14041-0057-51A
COVER-COMP,BAG,RH,M.C.GRAY
$300.54¢150 270
1
#14041
14041-0056-17L
COVER COMP,BAG,Left Hand,C B ORANGE
$300.94¢150 472
1
#14041
14041-0056-51A
COVER COMP,BAG,Left Hand,M C GRAY
$300.54¢150 270
1
#14041
14041-0056-51P
COVER COMP,BAG,Left Hand,C L GREEN
$300.94¢150 472
1
#14041C
14041-0056-660
COVER COMP,BAG,Left Hand,M S BLACK
$286.14¢143 072
1
#14041H
14041-0057-660
COVER COMP,BAG,Right Hand,M S BLACK
$286.14¢143 072
1
#14091
14091-1069
COVER,LID MAINTENANCE
$19.43¢9 717
1
#27012
27012-1572
HOOK,LOCK PLATE,RH
$15.11¢7 555
1
#27012
27012-1571
HOOK,LOCK PLATE,LH
$13.45¢6 727
1
#27012A
27012-1572
HOOK,LOCK PLATE,RH
$15.11¢7 555
1
#27012B
27012-1575
HOOK,HANDLE
$19.68¢9 838
1
#43049
43049-1084
PACKING
$2.17¢1 087
1
#43049A
43049-1086
PACKING
$2.08¢1 041
1
#46003
46003-1505
HANDLE,SIDE BAG
$220.58¢110 291
1
#53009
53009-1104
HINGE,SIDE BAG
$26.12¢13 058
1
#57003
57003-0061-660
BAG Assembly,Right Hand,M S BLACK
$1320.75¢660 376
1
#57003
57003-0060-51P
BAG Assembly,Left Hand,C L GREEN
$1371.74¢685 871
1
#57003
57003-0060-17L
BAG Assembly,Left Hand,C B ORANGE
$1451.17¢725 587
1
#57003B
57003-0060-660
BAG Assembly,Left Hand,M S BLACK
$1320.75¢660 376
1
#57003
57003-5420-51W
BAG Assembly,Left Hand,GRAY/EBONY+GRAY
$1595.38¢797 692
1
#57003
57003-0060-660
BAG Assembly,Left Hand,M S BLACK
$1320.75¢660 376
1
#57003
57003-0061-17L
BAG Assembly,Right Hand,C B ORANGE
$1451.17¢725 587
1
#57003
57003-0061-51A
BAG Assembly,Right Hand,M C GRAY
$1320.75¢660 376
1
#57003
57003-0061-51P
BAG Assembly,Right Hand,C L GREEN
$1371.74¢685 871
1
#57003G
57003-0061-660
BAG Assembly,Right Hand,M S BLACK
$1320.75¢660 376
1
#92009A
92009-1871
SCREW,TAPPING,3X8
$1.44¢719
1
#92009
92009-1870
SCREW,TAPPING,4X12
$1.49¢747
1
#92033
92033-1300
RING-SNAP
$1.49¢747
1
#92039
92039-1236
RIVET
$2.10¢1 052
1
#92072
92072-1368
BAND
$55.00¢27 502
1
#92093A
92093-1487
SEAL,SIDE BAG,LH
$5.82¢2 909
1
#92093B
92093-1488
SEAL
$3.39¢1 696
1
#92093A
92093-1489
SEAL,SIDE BAG,RH
$5.82¢2 909
1
#92093C
92093-1489
SEAL,SIDE BAG,RH
$5.82¢2 909
1
#92093
92093-1486
SEAL,SIDE BAG COVER
$12.58¢6 290
1
#92143
92143-1450
COLLAR
$9.04¢4 520
1
#92145A
92145-1200
SPRING
$8.34¢4 169
1
#92145
92145-1200
SPRING
$8.34¢4 169
1
#92145
92145-1175
SPRING
$8.34¢4 169
1
#92151A
92151-1436
BOLT,SOCKET,4X22
$2.18¢1 092
1
#92151B
92151-1437
BOLT,SOCKET,4X18
$2.18¢1 092
1
#92151
92151-1435
BOLT,FLANGED,6X16
$2.15¢1 075
1
#92152A
92152-1122
COLLAR
$3.42¢1 708
1
#92152
92152-1121
COLLAR
$3.59¢1 794
1
#92160A
92160-1976
DAMPER
$2.18¢1 092
1
#92160
92160-1012
DAMPER
$5.01¢2 507
1
#92161A
92161-1171
DAMPER,SIDE BAG,LH
$41.74¢20 872
1
#92161A
92161-1176
DAMPER,SIDE BAG,RH
$41.74¢20 872
1
#92161B
92161-1176
DAMPER,SIDE BAG,RH
$41.74¢20 872
1
#92161
92161-0895
DAMPER
$8.16¢4 082
1
#92200B
92200-1444
WASHER,3MM
$1.44¢719
1
#92200A
92200-1443
WASHER,4MM
$1.49¢747
1
#92200
92200-1442
WASHER,3MM
$1.49¢747
1
#92210
92210-1167
NUT,CAP,6MM
$2.27¢1 133
1
#92210A
92210-1168
NUT,CAP,4MM
$1.62¢811
1
