FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

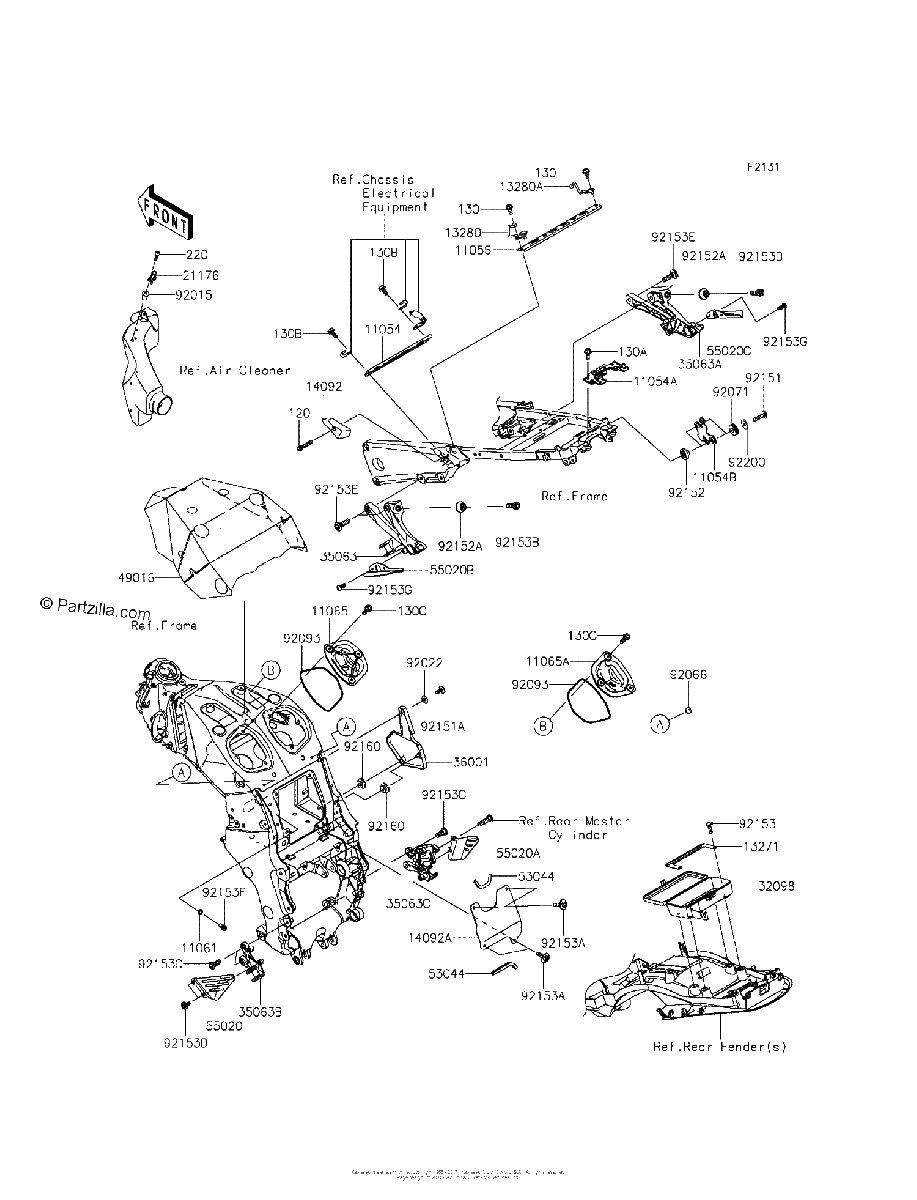

Diagrama de FRAME FITTINGS

Repuestos

#120
120CB0630
BOLT-SOCKET,6X30
$2.58¢1 288
1
#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130A
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#130B
130BA0618
BOLT-FLANGED,6X18
$1.40¢701
1
#130C
130BA0622
BOLT-FLANGED,6X22
$1.20¢598
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.36¢1 679
1
#11054
11054-0225
BRACKET,RR FENDER,FR
$25.77¢12 886
1
#11054B
11054-0718
BRACKET,REGULATOR
$17.16¢8 579
1
#11054A
11054-0694
BRACKET,REAR FENDERTAIL COVER
$24.18¢12 092
1
#11056
11056-2121
BRACKET,FUEL TANK,Rear
$52.22¢26 111
1
#11061
11061-0107
GASKET
$2.18¢1 092
1
#11065
11065-0223
CAP,AIR CLEANER,RH
$51.29¢25 645
1
#11065A
11065-0763
CAP,AIR CLEANER,Left Hand
$51.75¢25 875
1
#13271
13271-0779
PLATE,TOOL CASE
$12.30¢6 152
1
#13280
13280-0753
HOLDER,HELMET,LH
$31.73¢15 864
1
#13280A
13280-0754
HOLDER,HELMET,Right Hand
$31.73¢15 864
1
#14092
14092-0903-6Z
COVER,F BLACK
$12.21¢6 106
1
#14092A
14092-0981
COVER,BATTERY
$45.57¢22 787
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#32098
32098-0058
CASE TOOL
$33.53¢16 767
1
#35063
35063-0782-18R
STAY,Rear,Left Hand,F S BLACK
$184.89¢92 443
1
#35063A
35063-0783-18R
STAY,Rear,Right Hand,F S BLACK
$184.89¢92 443
1
#35063B
35063-0853-18R
STAY,Front,Left Hand,F S BLACK
$84.57¢42 286
1
#35063C
35063-0854-18R
STAY,Front,Right Hand,F S BLACK
$112.58¢56 293
1
#36001
36001-0080-18T
COVER SIDE,BATTERY,Right Hand,BLACK
$48.33¢24 167
1
#49016
49016-0578
COVER-SEAL,FRAME
$50.94¢25 472
1
#53044
53044-1200
TRIM,L=100
$7.92¢3 962
1
#55020C
55020-0867
GUARD,Rear STEP,Right Hand
$46.13¢23 063
1
#55020A
55020-0212
GUARD,FRONT STEP,RH
$83.08¢41 538
1
#55020B
55020-0866
GUARD,RR STEP,LH
$46.13¢23 063
1
#55020
55020-0211
GUARD,FRONT STEP,LH
$83.08¢41 538
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92066
92066-1547
PLUG
$3.43¢1 713
1
#92071
92071-1115
GROMMET
$4.97¢2 484
1
#92093
92093-1507
SEAL
$4.37¢2 185
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92151
92151-1611
BOLT,SOCKET,6X25
$2.01¢1 006
1
#92152A
92152-0668
COLLAR
$4.58¢2 289
1
#92152
92152-0470
COLLAR
$4.45¢2 225
1
#92153B
92153-1522
BOLT,SOCKET,10X23
$8.20¢4 100
1
#92153A
92153-1423
BOLT,6X16
$1.24¢621
1
#92153C
92153-1621
BOLT,SOCKET,8X20
$1.87¢937
1
#92153D
92153-1622
BOLT,6MM
$2.81¢1 403
1
#92153E
92153-1630
BOLT,SOCKET,8X30
$2.22¢1 110
1
#92153F
92153-1676
BOLT,FLANGED,6X14
$1.87¢937
1
#92153G
92153-1785
BOLT,SOCKET,6X16
$2.22¢1 110
1
#92153
92153-0478
BOLT,6X18
$2.17¢1 087
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92200
92200-0283
WASHER,6.5X20X1.6
$1.30¢650
1
