FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

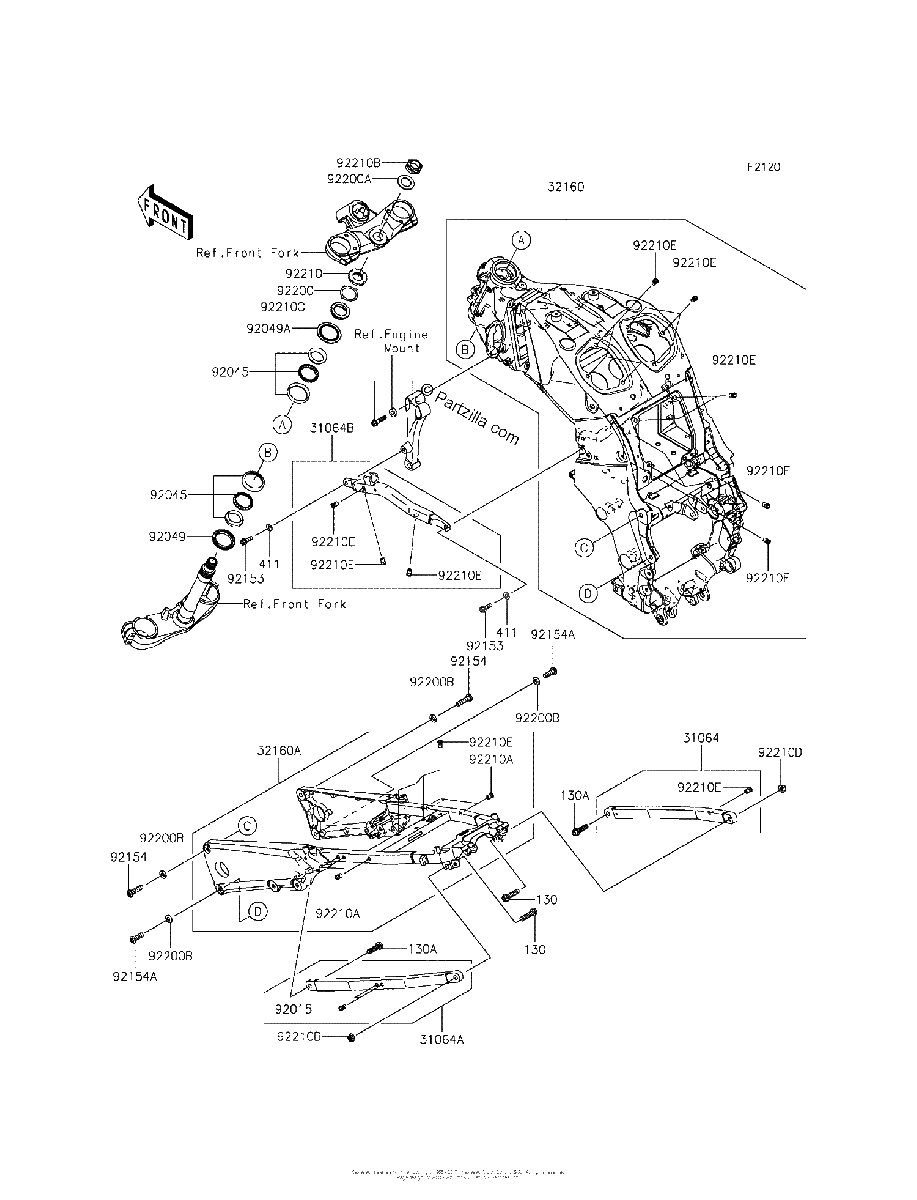

Diagrama de FRAME

Repuestos

#130
130BA1040
BOLT FLANGED,10X40
$1.99¢994
1
#130A
130BB1035
BOLT FLANGED,10X35
$6.38¢3 188
1
#411
411AA0800
WASHER PLAIN,8MM
$1.05¢525
1
#31064
31064-0045-18R
PIPE COMP,Rear,Right Hand,F S BLACK
$153.94¢76 969
1
#31064B
31064-0099
PIPE-COMP,SUB FRAME,LH
$196.59¢98 294
1
#31064A
31064-0065-18R
PIPE COMP,Rear,Left Hand,F S BLACK
$153.94¢76 969
1
#32160
32160-0580-18R
FRAME-COMP,FR,F.S.BLACK
$4139.45¢2 069 725
1
#32160A
32160-0700-18R
FRAME COMP,Rear,F S BLACK
$1280.59¢640 294
1
#92015
92015-1791
NUT,POP,6MM,L=15
$4.65¢2 325
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$52.01¢26 006
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$17.09¢8 544
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$19.64¢9 819
1
#92153
92153-1768
BOLT,FLANGED,8X25
$4.11¢2 056
1
#92154A
92154-0995
BOLT,SOCKET,10X30
$6.15¢3 075
1
#92154
92154-0994
BOLT,SOCKET,10X40
$6.75¢3 375
1
#92200A
92200-0282
WASHER,25.5X42X2.3
$2.52¢1 263
1
#92200B
92200-0805
WASHER,11X20X3
$8.73¢4 363
1
#92200
92200-0281
WASHER
$3.89¢1 944
1
#92210D
92210-1139
NUT,LOCK,FLANGED,10MM
$3.77¢1 888
1
#92210C
92210-0823
NUT,35MM
$26.72¢13 362
1
#92210B
92210-0758
NUT,25MM
$90.74¢45 369
1
#92210A
92210-0324
NUT,POP,6MM,L=16.5
$5.47¢2 738
1
#92210
92210-0095
NUT,35MM
$17.94¢8 969
1
#92210E
92210-1397
NUT,POP,6MM,L=15
$5.64¢2 819
1
