FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

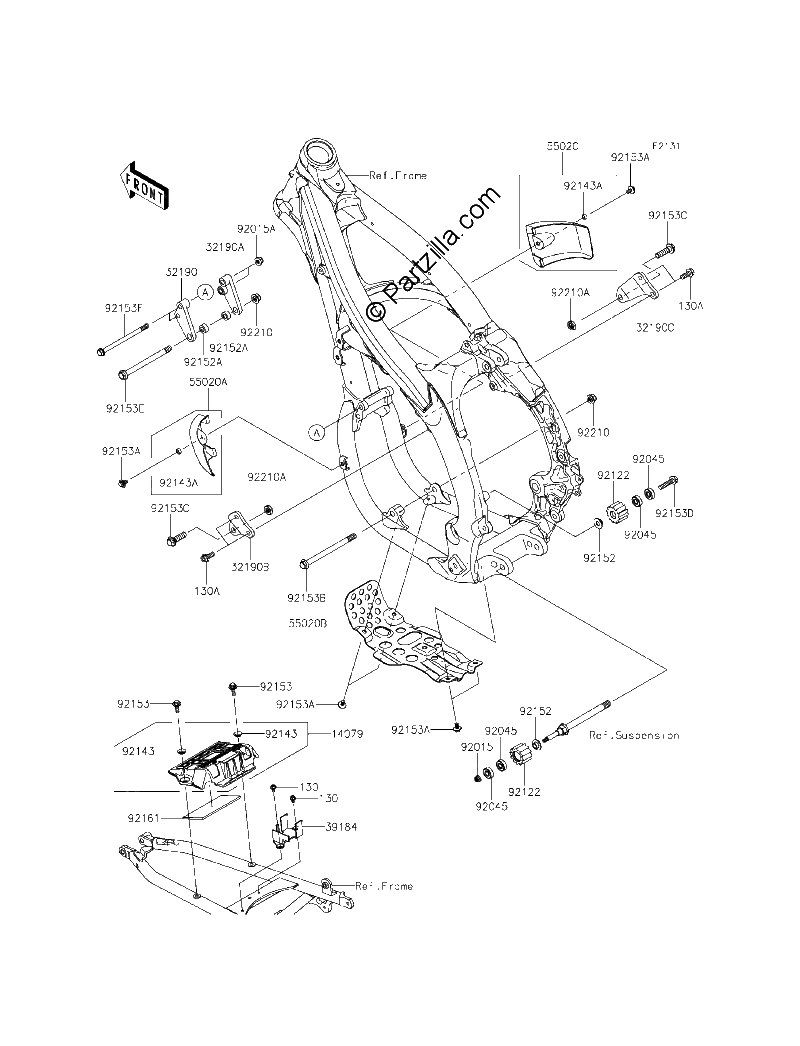

Diagrama de FRAME FITTINGS

Repuestos

#130
130BA0510
BOLT FLANGED,5X10
$1.66¢831
1
#130A
130CA0818
BOLT-FLANGED,8X18
$2.36¢1 181
1
#14079
14079-0026
HOLDER-ASSY,BATTERY
$45.41¢22 706
1
#32190
32190-0330
BRACKET-ENGINE,FR
$58.27¢29 138
1
#32190C
32190-0352
BRACKET-ENGINE,UPP,RH
$35.51¢17 756
1
#32190B
32190-0351
BRACKET-ENGINE,UPP,LH
$35.51¢17 756
1
#32190A
32190-0331
BRACKET-ENGINE,FR
$58.27¢29 138
1
#39184
39184-0008
BRACKET-ASSY,SWITCH&RELAY
$18.65¢9 325
1
#55020
55020-0179-6C
GUARD,ENGINE,RH,EBONY
$35.26¢17 631
1
#55020B
55020-0369
GUARD,SKID
$48.15¢24 075
1
#55020A
55020-0313-6C
GUARD,ENGINE,LH,EBONY
$35.26¢17 631
1
#92015
92015-1339
NUT,LOCK,FLANGED,6MM
$1.35¢675
1
#92015A
92015-1432
NUT,8MM
$6.42¢3 213
1
#92045
92045-0060
BEARING BALL,608LLU/2A
$39.69¢19 844
1
#92122
92122-0016
ROLLER,CHAIN GUIDE
$18.25¢9 125
1
#92143A
92143-1307
COLLAR
$3.93¢1 963
1
#92143
92143-1196
COLLAR
$4.65¢2 325
1
#92152A
92152-0595
COLLAR,10.2X20X10
$4.11¢2 056
1
#92152
92152-0459
COLLAR
$28.89¢14 444
1
#92153F
92153-1870
BOLT,FLANGED,8X126
$13.38¢6 688
1
#92153E
92153-1869
BOLT,FLANGED,10X128
$20.81¢10 406
1
#92153D
92153-1652
BOLT,FLANGED,8X35
$4.84¢2 419
1
#92153C
92153-0802
BOLT,FLANGED,10X35
$5.51¢2 756
1
#92153B
92153-0704
BOLT,FLANGED,10X137
$11.43¢5 713
1
#92153A
92153-0503
BOLT,6X12
$2.58¢1 288
1
#92153
92153-0502
BOLT,6X20
$2.58¢1 288
1
#92161
92161-0456
DAMPER
$5.79¢2 894
1
#92210
92210-1080
NUT,LOCK,FLANGED,10MM
$10.20¢5 100
1
#92210A
92210-1184
NUT,LOCK,10MM
$5.98¢2 988
1
