FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

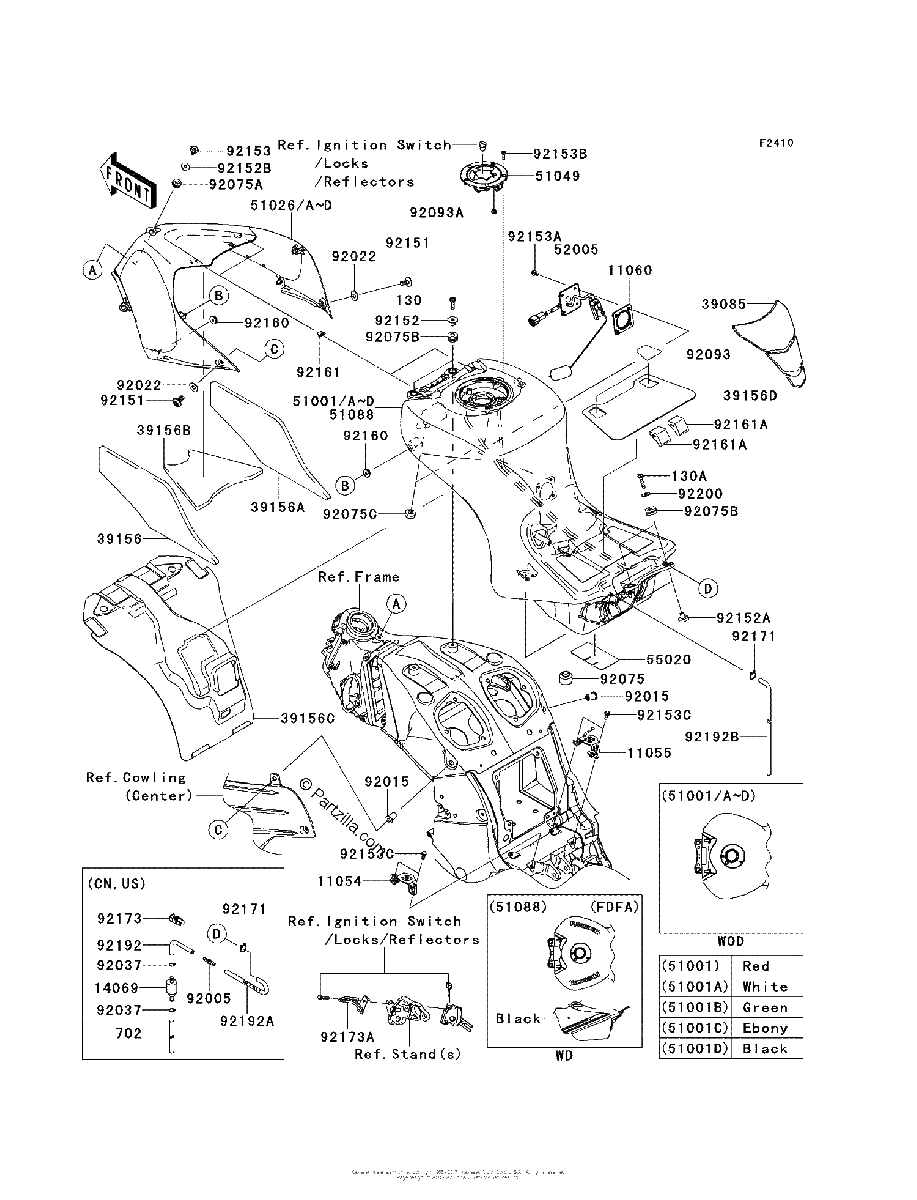

Diagrama de FUEL TANK

Repuestos

#130
130BA0625
BOLT FLANGED,6X25
$1.16¢581
1
#130A
130BA0630
BOLT-FLANGED,6X30
$1.36¢678
1
#702
702A07240
TUBE-RUBBER,7X10X240 | [US]
$12.11¢6 055
1
#11054
11054-0681
BRACKET,FUEL TANK,CNT,Left Hand
$10.10¢5 048
1
#11055
11055-0063
BRACKET,FUEL TANK,CNT,RH
$12.30¢6 152
1
#11060
11060-1952
GASKET,FUEL GAUGE
$20.55¢10 275
1
#14069
14069-0703
BREATHER | [CN]
$6.43¢3 214
1
#39085
39085-0054
PAD TANK
$125.72¢62 859
1
#39156
39156-0780
PAD,TANK COVER,LH
$21.21¢10 603
1
#39156D
39156-0863
PAD,FUEL TANK
$16.17¢8 085
1
#39156A
39156-0781
PAD,TANK COVER,RH
$21.21¢10 603
1
#39156B
39156-0782
PAD,TANK COVER,CNT
$15.08¢7 538
1
#39156C
39156-0794
PAD
$78.27¢39 134
1
#51001
51001-0752-660
TANK COMP FUEL,M S BLACK
$1665.35¢832 675
1
#51001
51001-0752-45L
TANK-COMP-FUEL,F.EBONY
$1697.46¢848 729
1
#51001
51001-0752-234
TANK COMP FUEL,P RED
$1697.46¢848 729
1
#51001
51001-0752-25Y
TANK COMP FUEL,P S WHITE
$1697.46¢848 729
1
#51001
51001-0752-40R
TANK COMP FUEL,G B GREEN
$1697.46¢848 729
1
#51001C
51001-0752-45L
TANK-COMP-FUEL,F.EBONY
$1697.46¢848 729
1
#51001D
51001-0752-660
TANK COMP FUEL,M S BLACK
$1665.35¢832 675
1
#51026
51026-0008-660
COVER TANK,FUEL,M S BLACK
$311.59¢155 796
1
#51026
51026-0008-45L
COVER TANK,FUEL,F.EBONY
$339.99¢169 993
1
#51026
51026-0008-40R
COVER TANK,FUEL,G B GREEN
$328.19¢164 093
1
#51026
51026-0008-25Y
COVER TANK,FUEL,P S WHITE
$339.99¢169 993
1
#51026
51026-0008-234
COVER TANK,FUEL,P RED
$339.99¢169 993
1
#51026C
51026-0008-45L
COVER TANK,FUEL,F.EBONY
$339.99¢169 993
1
#51026D
51026-0008-660
COVER TANK,FUEL,M S BLACK
$311.59¢155 796
1
#51049
51049-0715
CAP-TANK,FUEL
$160.02¢80 011
1
#51088
51088-5055-660
TANK COMP FUEL,M S BLACK
$1736.38¢868 193
1
#52005
52005-0093
GAUGE,FUEL
$246.62¢123 309
1
#55020
55020-0551
GUARD,FUEL TANK
$17.27¢8 637
1
#92005
92005-0096
FITTING | [US]
$9.31¢4 658
1
#92015
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92075C
92075-281
DAMPER,9X24X14
$5.60¢2 800
1
#92075A
92075-1634
DAMPER
$4.28¢2 139
1
#92075B
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92075
92075-015
DAMPER
$4.57¢2 283
1
#92093A
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92093
92093-0583
SEAL
$7.83¢3 916
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.01¢1 006
1
#92152A
92152-0364
COLLAR
$11.68¢5 842
1
#92152B
92152-0424
COLLAR
$5.72¢2 858
1
#92152
92152-0048
COLLAR
$2.46¢1 231
1
#92153A
92153-1421
BOLT,FLANGED,5X12
$1.59¢793
1
#92153C
92153-1694
BOLT,FLANGED,6X20
$1.95¢977
1
#92153B
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92153
92153-1267
BOLT,SOCKET,6X23
$2.37¢1 185
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-1481
DAMPER
$13.52¢6 762
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92171
92171-0573
CLAMP
$1.30¢650
1
#92173A
92173-1029
CLAMP
$21.70¢10 850
1
#92173
92173-0985
CLAMP,PIPE
$4.23¢2 116
1
#92192A
92192-0648
TUBE,BREATHER,UPP | [US]
$19.86¢9 930
1
#92192B
92192-0693
TUBE,DRAIN
$20.14¢10 068
1
#92192
92192-0615
TUBE,BREATHER,INNER
$6.24¢3 122
1
#92200
92200-0283
WASHER,6.5X20X1.6
$1.30¢650
1
