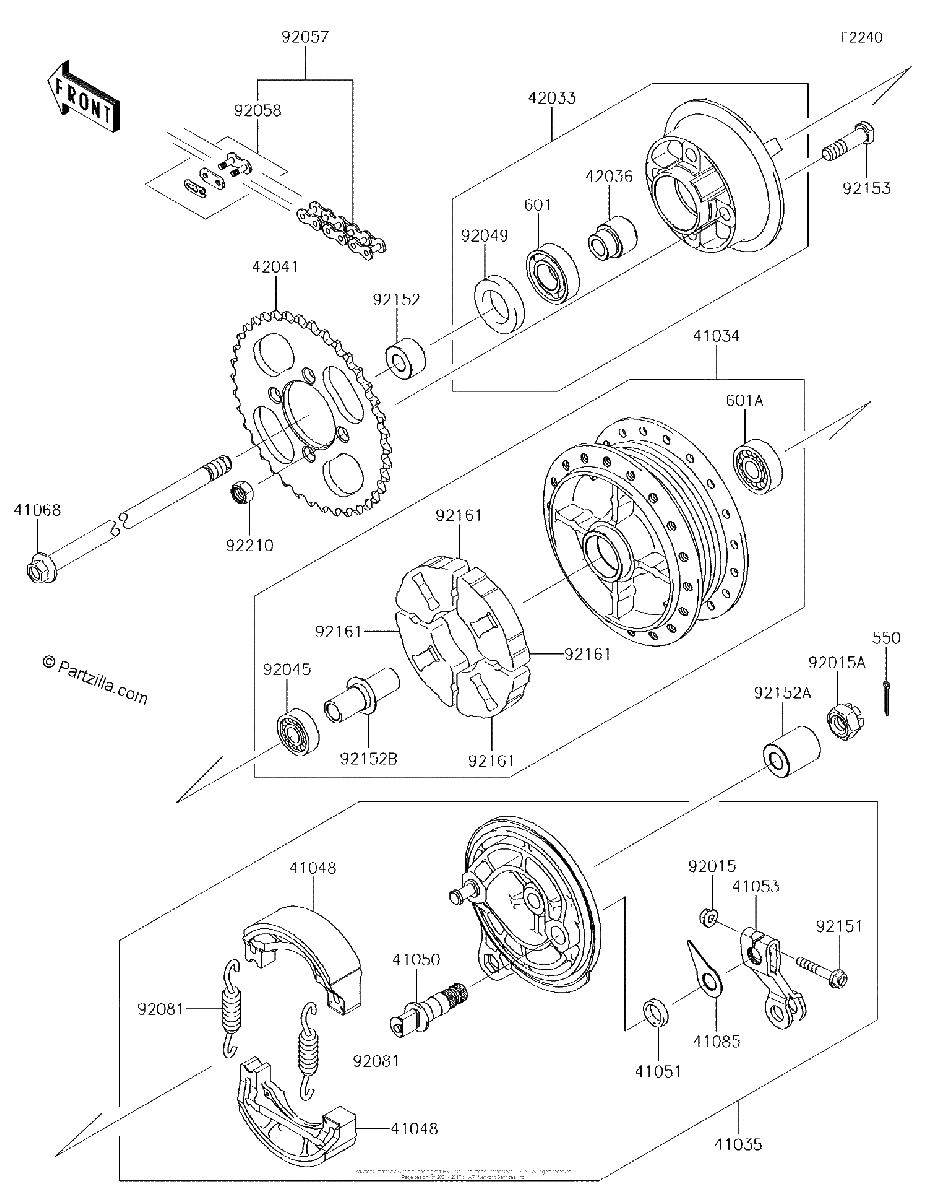

REAR HUB
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#550
PIN COTTER,2.5X30
$2.22¢1 110
#601
BEARING BALL,#6004UG
$41.37¢20 683
#601A
BEARING BALL,#6301UG
$32.51¢16 255
#41034
DRUM Assembly,REAR BRAKE
$82.59¢41 296
#41035
PANEL-ASSY-BRAKE,RR
$157.70¢78 850
#41048
SHOE BRAKE
$21.01¢10 505
#41050
CAM-BRAKE
$7.35¢3 674
#41051
SEAL,BRAKE CAM
$3.90¢1 949
#41053
LEVER-BRAKE CAM
$12.73¢6 365
#41068
AXLE,RR
$26.16¢13 081
#41085
INDICATOR
$22.00¢11 000
#42033
COUPLING Assembly,Rear HUB
$70.45¢35 225
#42036
SLEEVE,RR HUB COUPLING,L=29
$8.21¢4 105
#42041
SPROCKET-HUB,38T
$40.78¢20 390
#92015
NUT,FLANGED,6MM
$3.02¢1 512
#92015A
NUT,CASTLE,12MM
$5.73¢2 864
#92045
BEARING BALL,6201ZC3/5C
$12.74¢6 371
#92049
SEAL OIL,SC26X42X8
$2.74¢1 368
#92057
CHAIN,DRIVE,DID420DXX90L
$34.19¢17 095
#92058
JOINT CHAIN,DRIVE
$11.42¢5 710
#92081
SPRING,BRAKE SHOE
$7.35¢3 674
#92151
BOLT,FLANGED,6X34
$3.38¢1 691
#92152A
COLLAR,Rear AXLE,Right Hand,L=32
$10.76¢5 382
#92152B
COLLAR,REAR BRAKE DRUM,L=58
$10.76¢5 382
#92152
COLLAR,RR AXLE,LH,L=14.8
$8.60¢4 301
#92153
BOLT,10X36
$9.57¢4 784
#92161
DAMPER,Rear HUB SHOCK
$8.57¢4 284
#92210
NUT,LOCK,10MM
$7.00¢3 502
