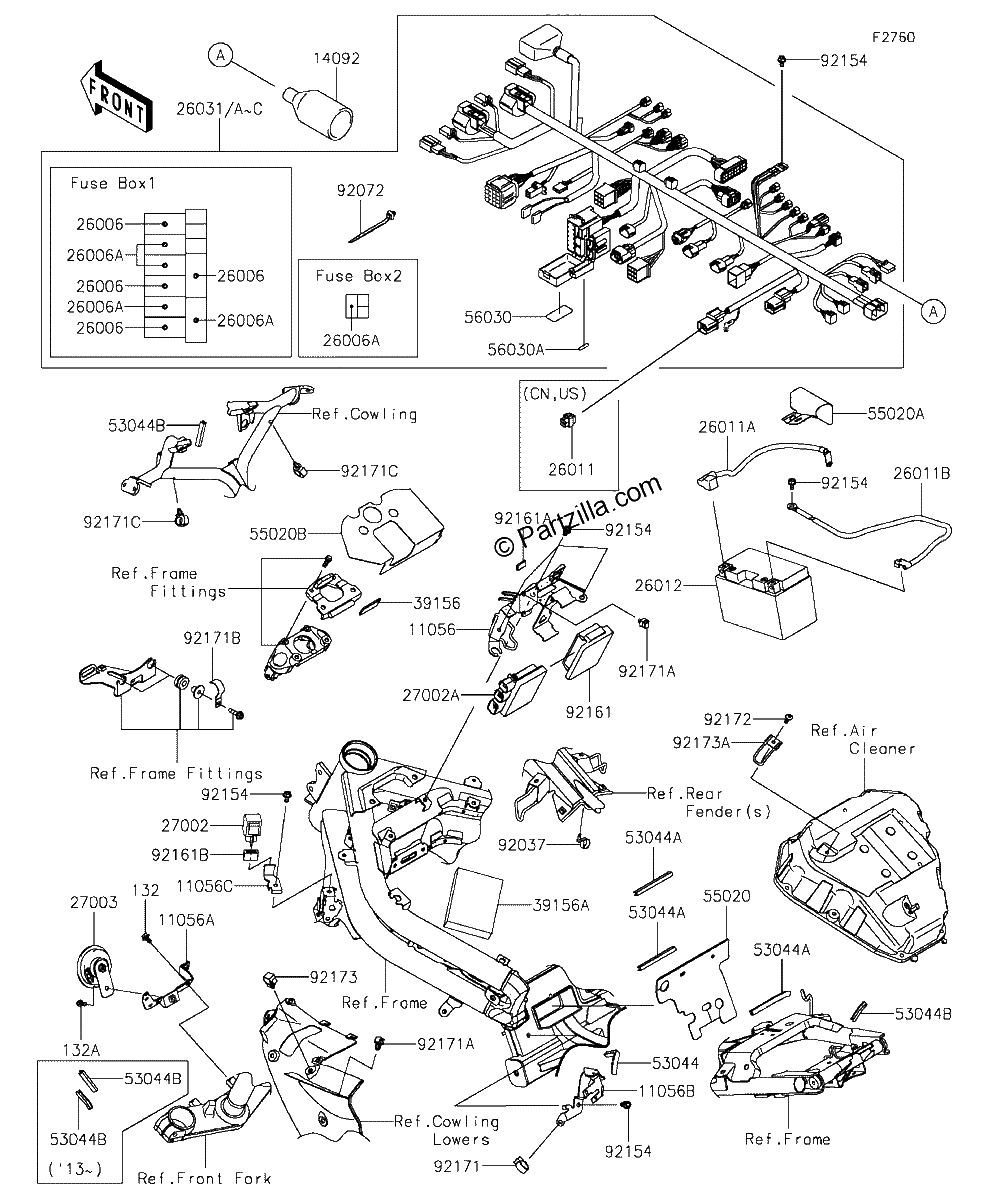

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#132
BOLT-FLANGED-SMALL,6X10
$1.66¢831
#132a
BOLT-FLANGED-SMALL,6X12
$1.94¢969
#132A
BOLT-FLANGED-SMALL,6X12
$1.94¢969
#11056
BRACKET,RELAY Assembly
$37.46¢18 731
#11056A
BRACKET,HORN
$14.54¢7 269
#11056B
BRACKET,PIVOT,UPP,LH
$25.41¢12 706
#11056C
BRACKET,SIGNAL RELAY
$2.29¢1 144
#14092
COVER
$12.36¢6 181
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26011
WIRE-LEAD,SENSOR CONNECTOR
$17.00¢8 500
#26011A
WIRE-LEAD,BATTERY(+)
$50.41¢25 206
#26011B
WIRE LEAD,BATTERY( )
$44.19¢22 094
#26012
BATTERY,YT12A-BS,12V
No Disponible
#26031
HARNESS,MAIN
$1035.59¢517 794
#26031
HARNESS,MAIN
$1054.67¢527 338
#26031
HARNESS,MAIN | [US]
$987.80¢493 900
#26031
HARNESS,MAIN | [CA]
$987.80¢493 900
#27002
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
#27002A
RELAY-ASSY,BOX
No Disponible
#27003
HORN
$82.71¢41 356
#39156A
PAD,100X80X30
$16.39¢8 194
#39156
PAD,20X40X3
$1.24¢619
#53044B
TRIM,L=48
$3.81¢1 906
#53044
TRIM
$4.84¢2 419
#53044A
TRIM,L=85
$12.45¢6 225
#55020
GUARD,AIR CLEANER
$7.94¢3 969
#55020A
GUARD,MG. SWITCH
$10.13¢5 063
#55020B
GUARD,FUSE BOX
$15.58¢7 788
#56030
LABEL,FUSE BOX1
$4.59¢2 294
#56030A
LABEL,FUSE BOX2
$4.59¢2 294
#92037
CLAMP,SPEED,L=58
$6.42¢3 213
#92072
BAND
$3.70¢1 850
#92154
BOLT,FLANGED,6X12
$1.96¢981
#92161
DAMPER,RELAY BOX
$11.73¢5 863
#92161A
DAMPER,20X20,T1.0
$0.99¢494
#92161B
DAMPER,15X25X8.5
$1.95¢975
#92171
CLAMP,BRAKE HOSE
$3.81¢1 906
#92171A
CLAMP
$4.11¢2 056
#92171B
CLAMP,L=60
$2.41¢1 206
#92171C
CLAMP,13MM DIA.
$1.99¢994
#92172
SCREW,TAPPING,5X16
$1.86¢931
#92173
CLAMP,12MM DIA.
$5.01¢2 506
#92173A
CLAMP,AIR CLEANER
$5.79¢2 894
