CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

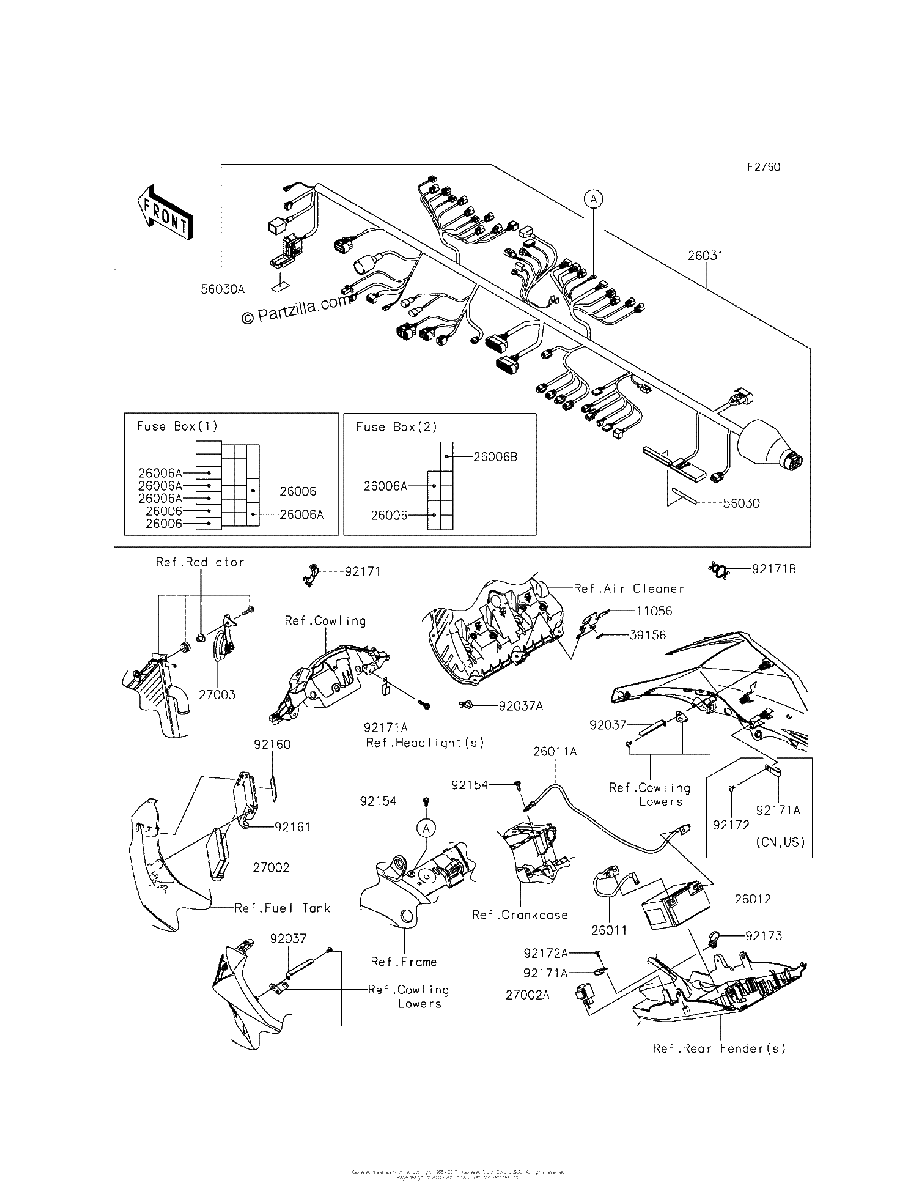

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#11056
11056-0384
BRACKET
$5.84¢2 921
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006B
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26011
26011-0295
WIRE LEAD,BATTERY(+)
$42.73¢21 367
1
#26011A
26011-0296
WIRE-LEAD,BATTERY(-)
$43.85¢21 925
1
#26012
26012-0563
BATTERY,YTZ7S(F),12V 6AH
No Disponible
1
#26031
26031-1716
HARNESS,MAIN
$1219.21¢609 603
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27002A
27002-1097
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
1
#27003
27003-0073
HORN
$92.95¢46 477
1
#39156
39156-0389
PAD,HEAT GUARD
$1.93¢966
1
#56030
56030-0399
LABEL,FUSE BOX2
$4.22¢2 110
1
#56030A
56030-0755
LABEL,FUSE BOX1
$4.22¢2 110
1
#92037A
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92037
92037-1679
CLAMP
$5.01¢2 507
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92160
92160-1075
DAMPER
$6.15¢3 076
1
#92161
92161-0909
DAMPER,RELAY BOX
$19.93¢9 965
1
#92171B
92171-1176
CLAMP
$4.17¢2 087
1
#92171A
92171-0305
CLAMP
$7.67¢3 835
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.46¢1 231
1
#92172A
92172-0335
SCREW,TAPPING,5X10
$1.87¢937
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92173
92173-0791
CLAMP
$11.56¢5 779
1
