FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

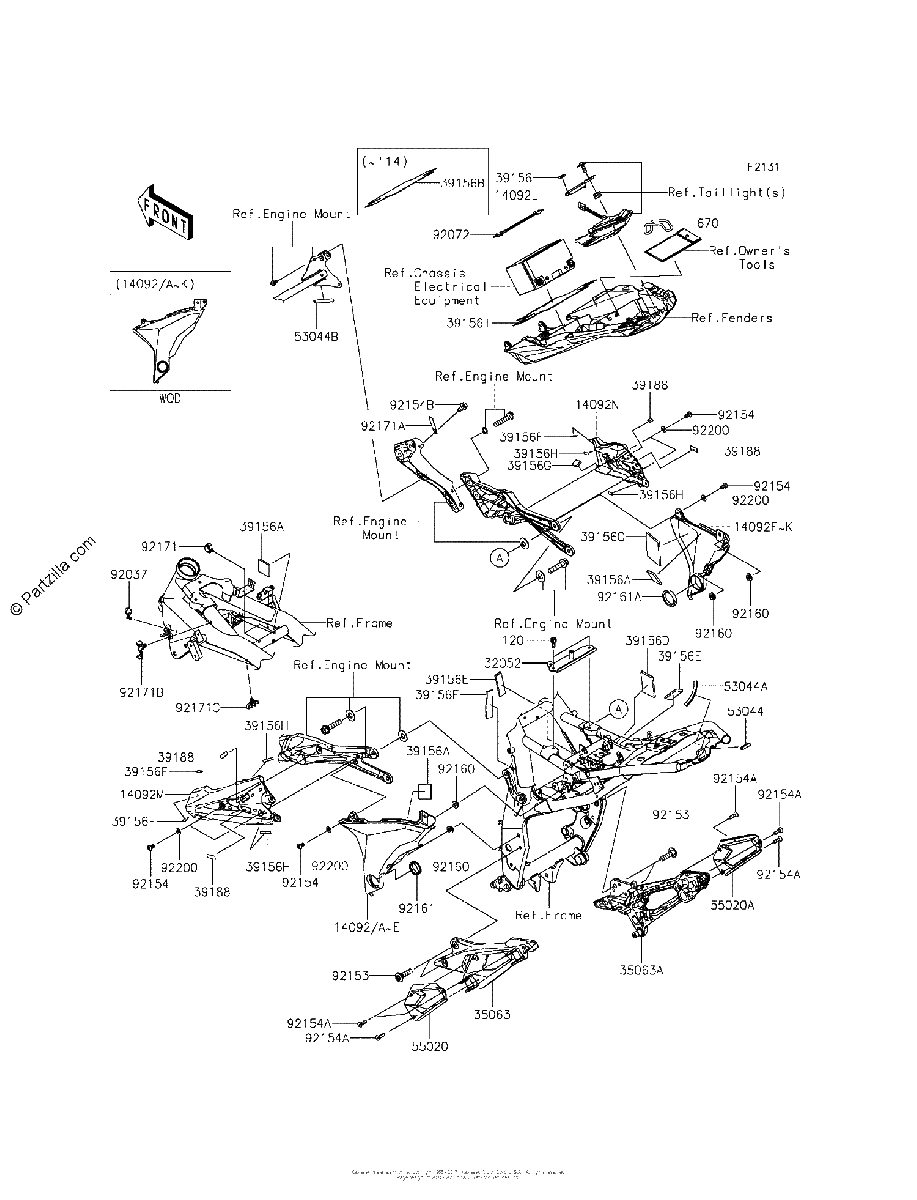

Diagrama de FRAME FITTINGS

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.53¢765
1
#670
670B5075
O RING,75MM
No Disponible
1
#14092
14092-0962-15T
COVER,PIVOT,Left Hand,C B ORANGE
$105.96¢52 981
1
#14092F
14092-0963-35K
COVER,PIVOT,Right Hand,C F B GREEN
$105.96¢52 981
1
#14092A
14092-0962-25Y
COVER,PIVOT,Left Hand,P S WHITE
$105.82¢52 912
1
#14092
14092-0962-25Y
COVER,PIVOT,Left Hand,P S WHITE
$105.82¢52 912
1
#14092
14092-0962-35K
COVER,PIVOT,Left Hand,C F B GREEN
$105.96¢52 981
1
#14092
14092-0962-45L
COVER,PIVOT,Left Hand,F EBONY
$105.82¢52 912
1
#14092C
14092-0962-45L
COVER,PIVOT,Left Hand,F EBONY
$105.82¢52 912
1
#14092
14092-0962-45Q
COVER,PIVOT,Left Hand,C F B GREEN
$105.96¢52 981
1
#14092
14092-0962-660
COVER,PIVOT,Left Hand,M S BLACK
$105.82¢52 912
1
#14092E
14092-0962-660
COVER,PIVOT,Left Hand,M S BLACK
$105.82¢52 912
1
#14092F
14092-0963-15T
COVER,PIVOT,Right Hand,C B ORANGE
$105.96¢52 981
1
#14092G
14092-0963-25Y
COVER,PIVOT,Right Hand,P S WHITE
$105.82¢52 912
1
#14092F
14092-0963-25Y
COVER,PIVOT,Right Hand,P S WHITE
$105.82¢52 912
1
#14092I
14092-0963-45L
COVER,PIVOT,Right Hand,F EBONY
$105.82¢52 912
1
#14092F
14092-0963-45L
COVER,PIVOT,Right Hand,F EBONY
$105.82¢52 912
1
#14092F
14092-0963-45Q
COVER,PIVOT,Right Hand,C F B GREEN
$105.96¢52 981
1
#14092K
14092-0963-660
COVER,PIVOT,Right Hand,M S BLACK
$105.82¢52 912
1
#14092F
14092-0963-660
COVER,PIVOT,Right Hand,M S BLACK
$105.82¢52 912
1
#14092L
14092-1055
COVER,CORD
$47.64¢23 822
1
#14092M
14092-1093-18T
COVER,SUB FRAME,Left Hand,F S BLACK
$71.79¢35 897
1
#14092N
14092-1094-18T
COVER,SUB FRAME,Right Hand,F S BLACK
$71.79¢35 897
1
#32052
32052-0723
BRACKET-TANK
$16.66¢8 332
1
#35063
35063-0863-18R
STAY,Rear,Left Hand,F S BLACK
$214.83¢107 416
1
#35063A
35063-0864-18R
STAY,Rear,Right Hand,F S BLACK
No Disponible
1
#39156F
39156-0960
PAD,15X15X1
$1.52¢759
1
#39156G
39156-0961
PAD,18X18X5
$1.18¢592
1
#39156H
39156-0967
PAD,6X35
$1.18¢592
1
#39156I
39156-1849
PAD
No Disponible
1
#39156D
39156-0952
PAD,40X80X5
$2.33¢1 167
1
#39156E
39156-0953
PAD,20X80X5
$1.52¢759
1
#39156C
39156-0951
PAD,60X80X5
$3.48¢1 742
1
#39156B
39156-0870
PAD,CORD COVER
$49.45¢24 725
1
#39156
39156-0284
PAD
$1.30¢650
1
#39156A
39156-0292
PAD
$2.89¢1 443
1
#39188
39188-0558
TAPE,10X30X0.5
$1.52¢759
1
#53044
53044-0001
TRIM,L=30
$2.46¢1 231
1
#53044A
53044-0018
TRIM
$4.45¢2 225
1
#53044B
53044-1249
TRIM,L=60
$6.15¢3 076
1
#55020
55020-0842
GUARD,HEEL,LH
$54.11¢27 054
1
#55020A
55020-0843
GUARD,HEEL,RH
$54.11¢27 054
1
#92037
92037-1163
CLAMP,SPEED,L=58
$5.91¢2 956
1
#92072
92072-0741
BAND,BATTERY
$32.31¢16 157
1
#92153
92153-1630
BOLT,SOCKET,8X30
$2.22¢1 110
1
#92154
92154-0215
BOLT,SOCKET,5X10
$1.85¢926
1
#92154A
92154-1014
BOLT,SOCKET,5X16
$0.87¢437
1
#92154B
92154-1050
BOLT,FLANGED,6X12
$1.81¢903
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0147
DAMPER
$3.88¢1 938
1
#92161A
92161-0148
DAMPER
$3.88¢1 938
1
#92171
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92171A
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92171B
92171-0789
CLAMP,BRAKE HOSE
$5.11¢2 553
1
#92171C
92171-1213
CLAMP
$9.20¢4 600
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.44¢719
1
