MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

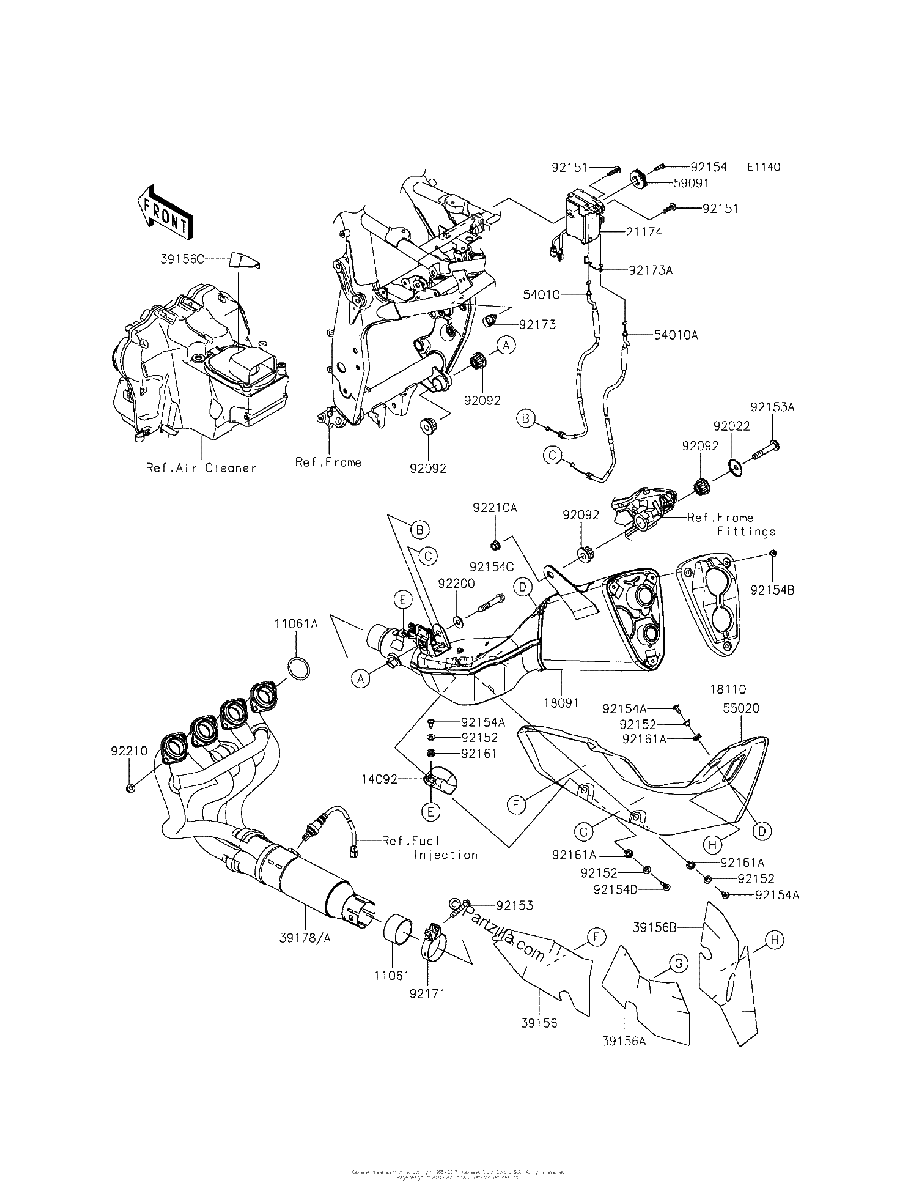

Diagrama de MUFFLER S

Repuestos

#11061
11061-0800
GASKET,MUFFLER-EX
$38.12¢19 061
1
#11061A
11061-0823
GASKET,CYL HED EX
$11.37¢5 687
1
#14092
14092-0949
COVER,PULLEY
$46.47¢23 236
1
#18091
18091-0908
BODY COMP MUFFLER
No Disponible
1
#18110
18110-0157
BODY END-MUFFLER
$150.62¢75 308
1
#21174
21174-0008
MOTOR ELECTRIC
$398.18¢199 088
1
#39156
39156-0885
PAD,FRONT
$11.44¢5 721
1
#39156C
39156-0946
PAD,AIR FILTER
$4.76¢2 380
1
#39156B
39156-0887
PAD,REAR
$13.71¢6 854
1
#39156A
39156-0886
PAD,MID
$11.44¢5 721
1
#39178
39178-0191
MANIFOLD COMP EXHAUST
$1611.23¢805 615
1
#39178
39178-0225
MANIFOLD-COMP-EXHAUST
$1579.40¢789 699
1
#39178A
39178-0225
MANIFOLD-COMP-EXHAUST
$1579.40¢789 699
1
#54010
54010-0586
CABLE,OPEN
$92.53¢46 264
1
#54010A
54010-0587
CABLE,CLOSE
$92.53¢46 264
1
#55020
55020-0838
GUARD,MUFFLER
$280.60¢140 300
1
#59091
59091-0007
PULLEY
$22.49¢11 247
1
#92022
92022-289
WASHER
$14.86¢7 429
1
#92092
92092-1087
BUSHING RUBBER,MUFFLER
$19.22¢9 608
1
#92151
92151-1611
BOLT,SOCKET,6X25
$2.01¢1 006
1
#92152
92152-1602
COLLAR,6.3X8.3X7.2
$3.40¢1 702
1
#92153A
92153-1930
BOLT,SOCKET,10X58
$9.11¢4 554
1
#92153
92153-0702
BOLT,8X45
$2.98¢1 489
1
#92154B
92154-0987
BOLT,HEX HEAD,6X8
$1.99¢995
1
#92154C
92154-1191
BOLT,SOCKET,10X60
$10.19¢5 094
1
#92154D
92154-1192
BOLT,SOCKET,6X27
$2.08¢1 041
1
#92154A
92154-0856
BOLT,SOCKET,6X14
$1.71¢857
1
#92154
92154-0217
BOLT,TORX,5X18
$3.52¢1 759
1
#92161A
92161-1475
DAMPER
$4.84¢2 421
1
#92161
92161-0999
DAMPER,PULLEY COVER
$5.11¢2 553
1
#92171
92171-0133
CLAMP
$19.31¢9 654
1
#92173A
92173-0921
CLAMP
$3.54¢1 771
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92200
92200-1377
WASHER,10.5X25X2.0
$3.83¢1 915
1
#92210
92210-0076
NUT,8MM
$4.98¢2 490
1
#92210A
92210-1139
NUT,LOCK,FLANGED,10MM
$3.47¢1 737
1
