CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

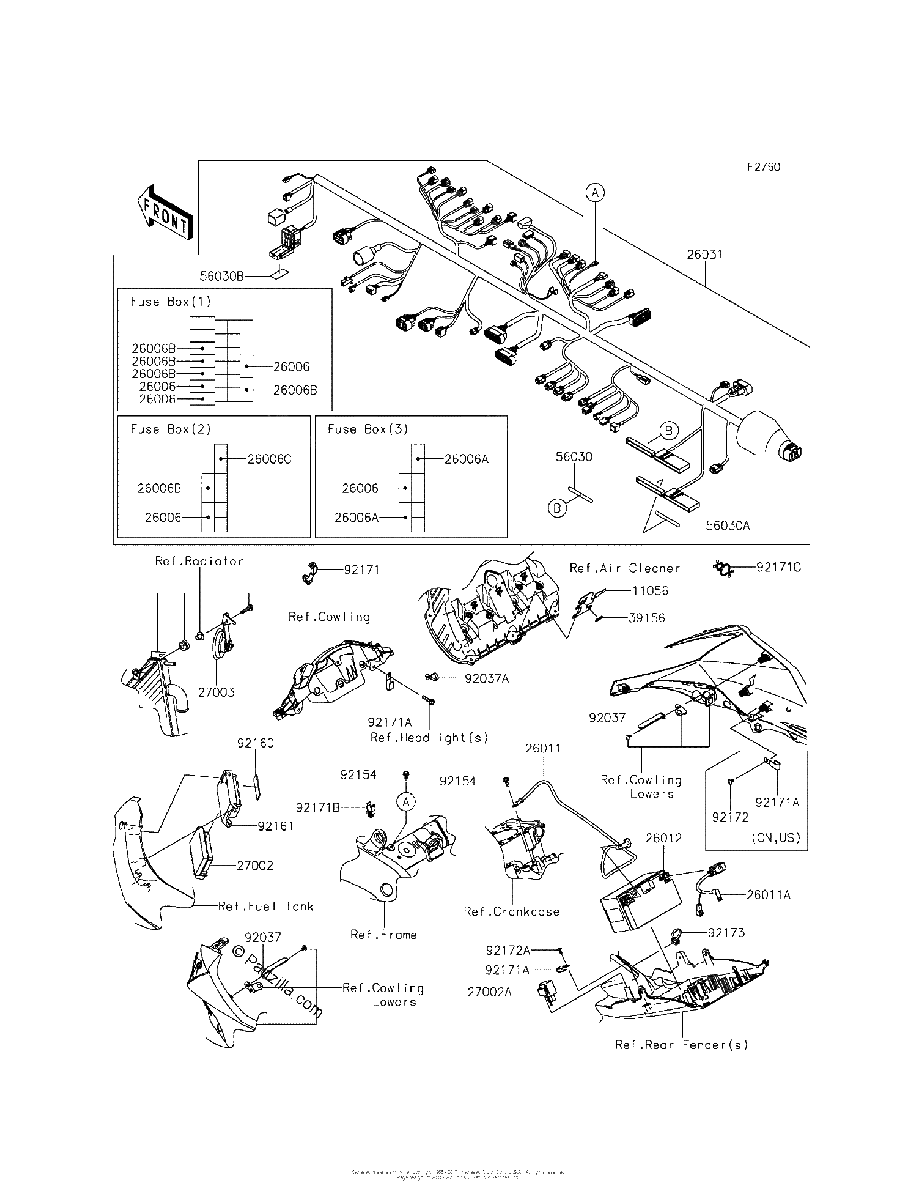

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#11056
11056-0384
BRACKET
$6.35¢3 175
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26011A
26011-0316
WIRE-LEAD,BATTERY(+)
$52.91¢26 456
1
#26011
26011-0298
WIRE-LEAD,BATTERY(-)
$55.71¢27 856
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-1717
HARNESS,MAIN
$1325.23¢662 613
1
#27002A
27002-1097
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27003
27003-0073
HORN
$101.04¢50 519
1
#39156
39156-0389
PAD,HEAT GUARD
$2.10¢1 050
1
#56030B
56030-0755
LABEL,FUSE BOX1
$4.59¢2 294
1
#56030A
56030-0400
LABEL,FUSE BOX3
$4.59¢2 294
1
#56030
56030-0399
LABEL,FUSE BOX2
$4.59¢2 294
1
#92037A
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92037
92037-1679
CLAMP
$5.45¢2 725
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92160
92160-1075
DAMPER
$6.69¢3 344
1
#92161
92161-0909
DAMPER,RELAY BOX
$21.66¢10 831
1
#92171C
92171-1176
CLAMP
$4.54¢2 269
1
#92171B
92171-0687
CLAMP
$12.70¢6 350
1
#92171A
92171-0305
CLAMP
$8.34¢4 169
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92172A
92172-0335
SCREW,TAPPING,5X10
$2.04¢1 019
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173
92173-0791
CLAMP
$12.56¢6 281
1
