COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

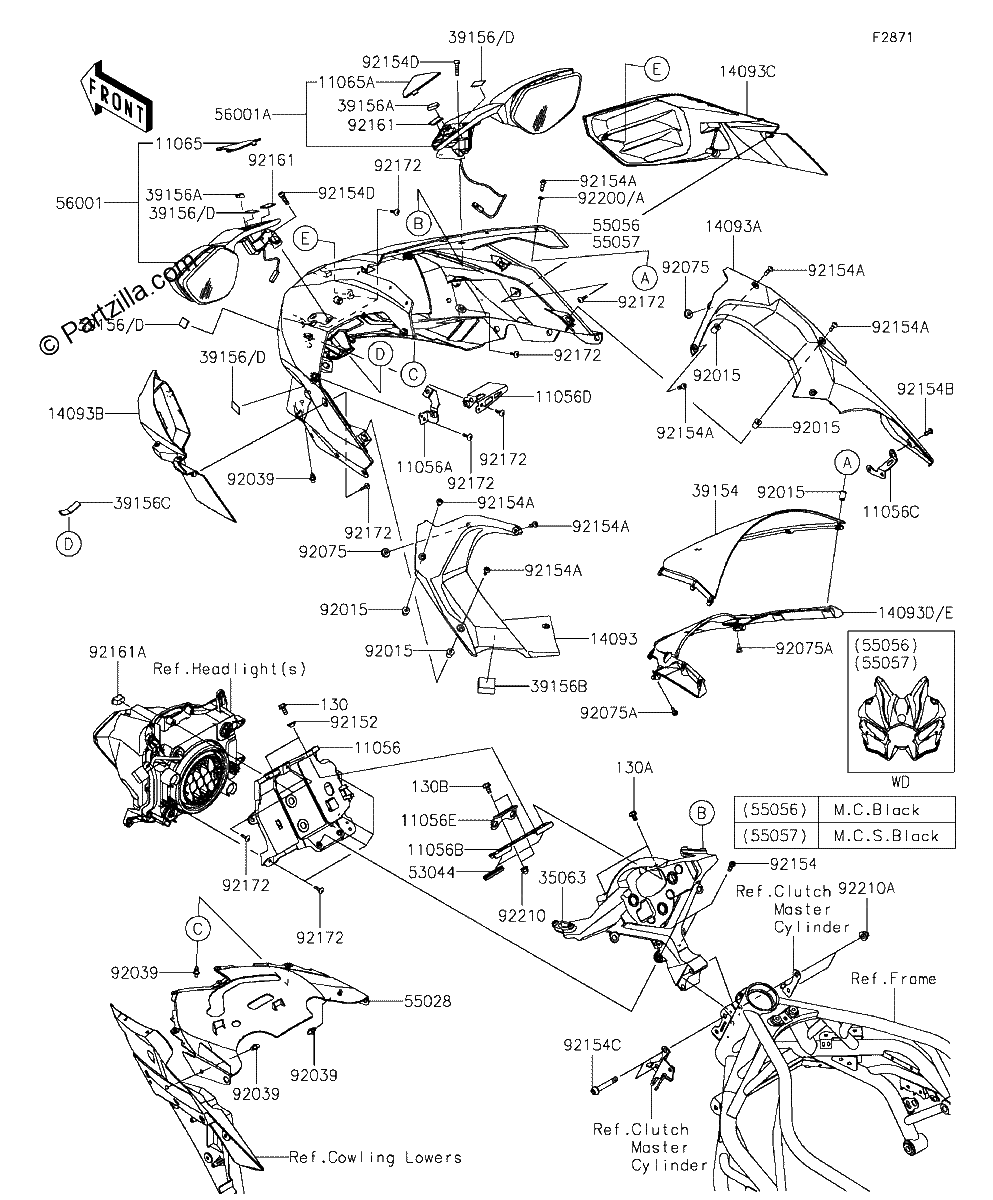

Diagrama de COWLING

Repuestos

#130b
130R0612
BOLT FLANGED,6X12
$1.29¢644
1
#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130a
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130A
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130B
130R0612
BOLT FLANGED,6X12
$1.29¢644
1
#11056
11056-4497
BRACKET,HEAD LAMP
$80.99¢40 494
1
#11056A
11056-4499
BRACKET,RAM AIR DUCT
$9.29¢4 644
1
#11056B
11056-7076
BRACKET,METER STAY
$13.75¢6 875
1
#11056C
11056-7098
BRACKET,INNER COVER
$9.01¢4 506
1
#11056D
11056-7263
BRACKET,HEAD LAMP HARNESS
$12.38¢6 188
1
#11056E
11056-7534
BRACKET,V.D. SENSOR
$12.91¢6 456
1
#11065
11065-0922
CAP,Upper,Left Hand
$8.68¢4 338
1
#11065A
11065-0923
CAP,Upper,Right Hand
$8.68¢4 338
1
#14093
14093-0182
COVER,INNER,LH
$35.81¢17 906
1
#14093A
14093-0183
COVER,INNER,RH
$45.13¢22 563
1
#14093B
14093-0185
COVER,DUCT,LH
$43.45¢21 725
1
#14093C
14093-0186
COVER,DUCT,RH
$48.45¢24 225
1
#14093D
14093-0187
COVER,METER VISOR
No Disponible
1
#14093D
14093-0499
COVER,METER VISOR
$35.67¢17 838
1
#35063
35063-1342-46R
STAY,METER,M F S BLACK
$631.15¢315 575
1
#39154
39154-0341
WINDSHIELD
$223.50¢111 750
1
#39156
39156-2119
PAD,15X25X1
$1.86¢931
1
#39156C
39156-1924
PAD,10X50X2
$2.36¢1 181
1
#39156B
39156-1900
PAD,20X30X24
$2.10¢1 050
1
#39156
39156-1747
PAD,15X25X1
$1.15¢575
1
#39156A
39156-1809
PAD,12X10X8
$1.86¢931
1
#53044
53044-0580
TRIM
$5.30¢2 650
1
#55028
55028-0539
COWLING,Upper,Lower
$34.40¢17 200
1
#55056
55056-5279-51C
COWLING,Upper,M C BLACK
No Disponible
1
#55057
55057-5147-53X
COWLING,Upper,M C S BLACK
$2715.05¢1 357 525
1
#56001A
56001-0321-739
MIRROR-ASSY,RH,M.F.S.BLACK
$509.09¢254 544
1
#56001
56001-0320-739
MIRROR Assembly,Left Hand,M F S BLACK
$496.94¢248 469
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92039
92039-0060
RIVET
$3.05¢1 525
1
#92075A
92075-1808
DAMPER,6X10X15
$1.39¢694
1
#92075
92075-1011
DAMPER,6X16X7
$7.30¢3 650
1
#92152
92152-0445
COLLAR,6.5X10X5.6
$4.88¢2 438
1
#92154C
92154-1710
BOLT,SOCKET,8X52
$11.80¢5 900
1
#92154A
92154-1560
BOLT,SOCKET,5X16
$2.30¢1 150
1
#92154B
92154-1561
BOLT,SOCKET,5X12
$2.40¢1 200
1
#92154D
92154-1724
BOLT,SOCKET,6X22
$2.30¢1 150
1
#92154
92154-1455
BOLT,SOCKET,6X18
$1.55¢775
1
#92161
92161-1696
DAMPER,16X23X2
$1.09¢544
1
#92161A
92161-1734
DAMPER,HEAD LAMP
$6.13¢3 063
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.09¢544
1
#92200
92200-1730
WASHER,5.2X10X0.5
$0.78¢388
1
#92200
92200-1820
WASHER,5.2X10X1.0
$0.78¢388
1
#92210
92210-0003
NUT,CAP,6MM
$0.78¢388
1
#92210A
92210-1132
NUT,CAP,8MM
$4.16¢2 081
1
