REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

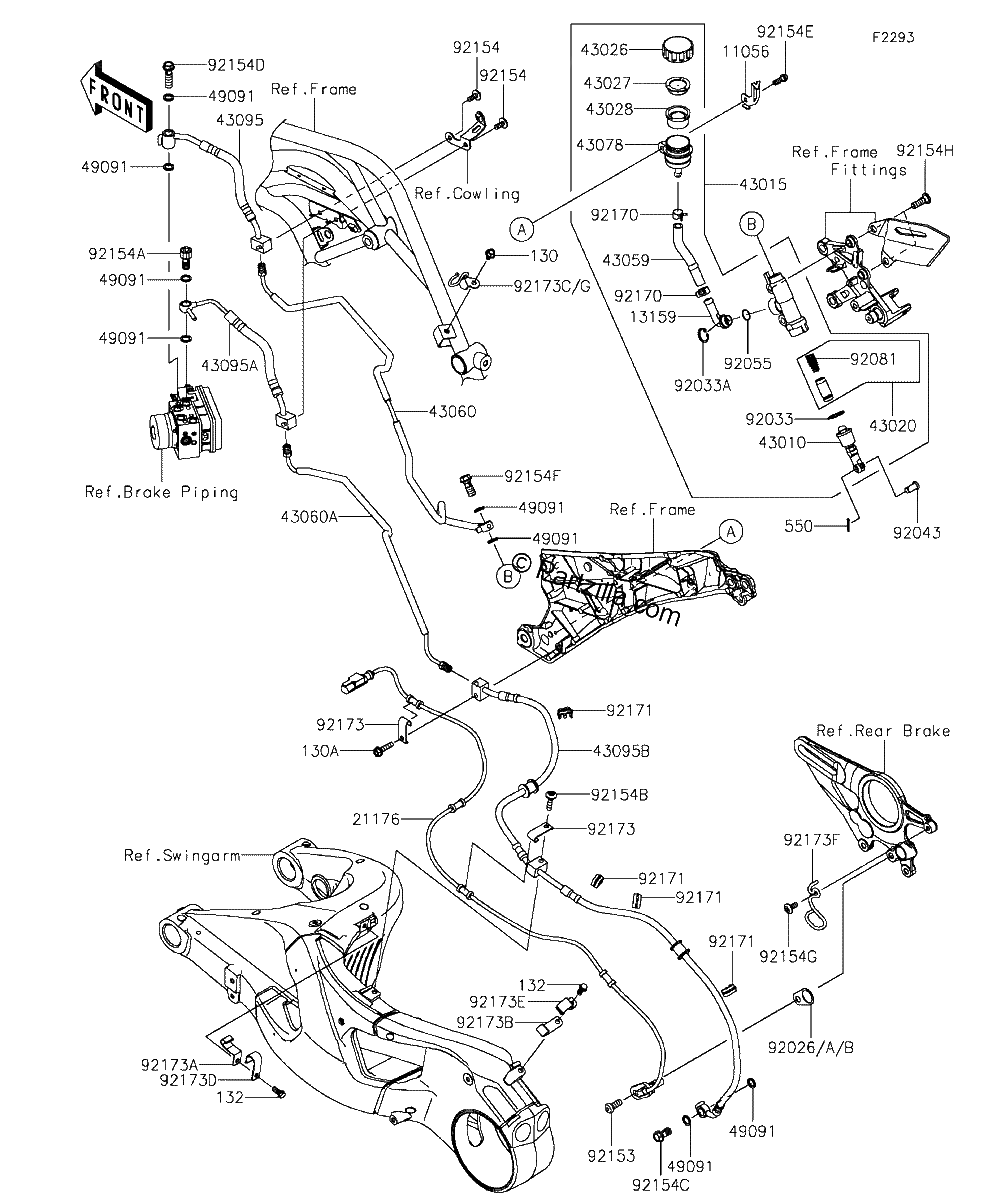

Diagrama de REAR MASTER CYLINDER

Repuestos

#130
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
1
#130a
130BB0625
BOLT-FLANGED,6X25
$2.21¢1 104
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.21¢1 104
1
#132
132BB0614
BOLT FLANGED SMALL,6X14
$2.12¢1 058
1
#550
550AA2015
PIN COTTER,2.0X15
$1.08¢541
1
#11056
11056-7024
BRACKET,RESERVOIR TANK CAP
$5.63¢2 818
1
#13159
13159-1056
CONNECTOR
$12.83¢6 417
1
#21176
21176-0793
SENSOR,WHEEL SPEED,Rear
$127.28¢63 641
1
#43010
43010-0016
ROD-ASSY-BRAKE
$32.40¢16 198
1
#43015
43015-0618
CYLINDER Assembly MASTER,Rear
$273.34¢136 672
1
#43020
43020-1057
PISTON-COMP-BRAKE
$68.37¢34 184
1
#43026
43026-0009
CAP-BRAKE
$41.78¢20 890
1
#43027
43027-1053
PLATE DIAPHRAGM
$5.35¢2 674
1
#43028
43028-1065
DIAPHRAGM
$19.22¢9 608
1
#43059
43059-1548
HOSE-BRAKE,M/CYLINDER
$19.22¢9 608
1
#43060
43060-0321
PIPE BRAKE,Rear M/C
$179.45¢89 723
1
#43060A
43060-0322
PIPE BRAKE,Rear CALIPER
$79.37¢39 686
1
#43078
43078-0575
RESERVOIR
$101.60¢50 801
1
#43095
43095-0856
HOSE-BRAKE,HU-RR M/C PIPE
$131.09¢65 544
1
#43095A
43095-0857
HOSE-BRAKE,HU-RR CALIPER PIPE
$135.87¢67 936
1
#43095B
43095-0858
HOSE-BRAKE,RR CALIPER
$456.56¢228 281
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
1
#92026
92026-0789
SPACER,RR SENSOR,T0.5
$12.65¢6 325
1
#92026
92026-0790
SPACER,RR SENSOR,T1.0
$17.54¢8 769
1
#92026
92026-0791
SPACER,RR SENSOR,T1.5
$18.83¢9 413
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.53¢2 266
1
#92043
92043-0104
PIN,8X17
$3.58¢1 788
1
#92055
92055-0741
RING O,14.8X2.4
$3.38¢1 691
1
#92081
92081-1737
SPRING,MASTER CYLINDER
$12.59¢6 296
1
#92153
92153-0912
BOLT,SOCKET,8X20
$2.22¢1 110
1
#92154H
92154-1806
BOLT,SOCKET,8X25
$4.73¢2 363
1
#92154G
92154-1735
BOLT,SOCKET,6X14
$1.94¢972
1
#92154F
92154-1712
BOLT,BANJO,10X23
$3.83¢1 915
1
#92154E
92154-1564
BOLT,SOCKET,6X18
$1.43¢713
1
#92154C
92154-1554
BOLT,BANJO,10X19
$23.69¢11 845
1
#92154D
92154-1555
BOLT,BANJO,10X32.3
$33.84¢16 922
1
#92154B
92154-1532
BOLT,SOCKET,6X25
$2.10¢1 052
1
#92154
92154-0745
BOLT,SOCKET,6X14
$1.99¢995
1
#92154A
92154-1121
BOLT,BANJO,10X20.8
$26.57¢13 283
1
#92170
92170-1091
CLAMP,HOSE
$4.57¢2 283
1
#92171
92171-0921
CLAMP
$4.45¢2 225
1
#92173A
92173-1379
CLAMP,SWING ARM,Front,Lower
$5.63¢2 818
1
#92173B
92173-1380
CLAMP,SWING ARM,Rear,Lower
$5.15¢2 576
1
#92173C
92173-1381
CLAMP,BRAKE PIPE
$13.55¢6 773
1
#92173D
92173-1382
CLAMP,SWING ARM,Front,Upper
$4.53¢2 266
1
#92173E
92173-1383
CLAMP,SWING ARM,Rear,Upper
$6.34¢3 168
1
#92173F
92173-1384
CLAMP,Rear BRAKE HOLDER
$20.90¢10 448
1
#92173
92173-1378
CLAMP,SWING ARM,MID
$5.15¢2 576
1
#92173C
92173-1571
CLAMP,BRAKE PIPE
$13.55¢6 773
1
