CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

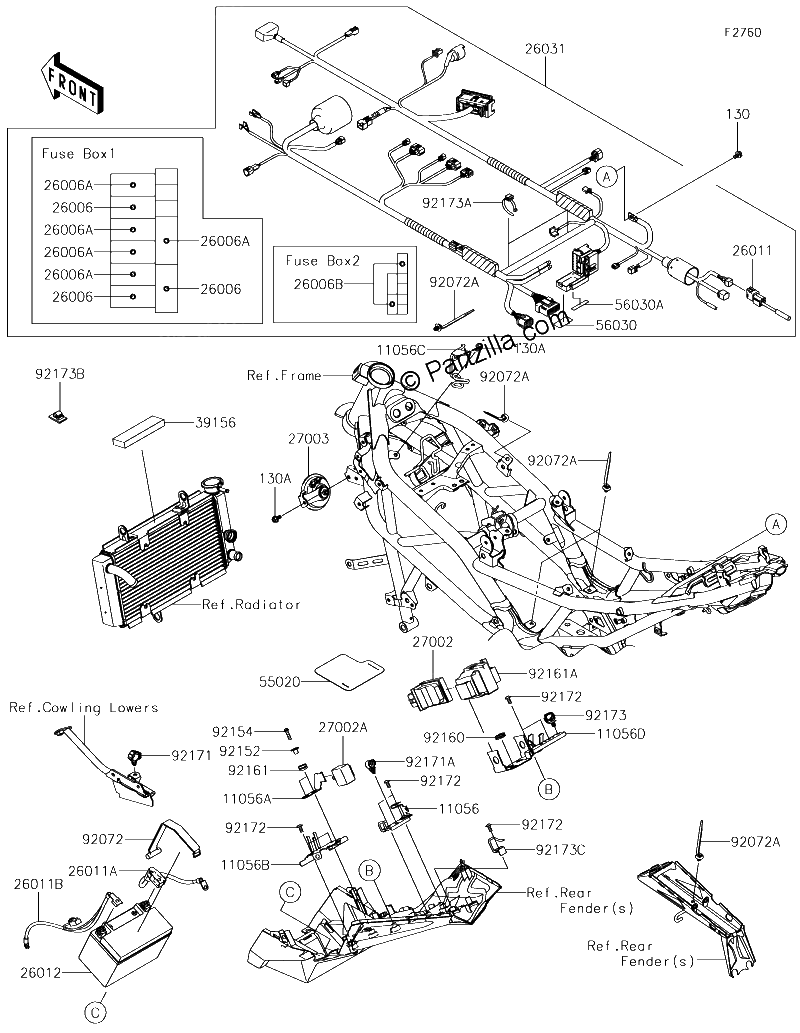

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#11056
11056-2695
BRACKET,DIAG
$11.22¢5 612
1
#11056A
11056-2810
BRACKET,RELAY
$2.50¢1 248
1
#11056B
11056-4342
BRACKET,FUSE BOX
$5.37¢2 685
1
#11056C
11056-4437
BRACKET,ACG
$5.37¢2 685
1
#11056D
11056-7058
BRACKET,ECU
$18.73¢9 367
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006B
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0858
WIRE-LEAD,DIAG
$35.87¢17 934
1
#26011B
26011-0915
WIRE-LEAD,BATTERY(-)
$43.86¢21 931
1
#26011A
26011-0892
WIRE-LEAD,BATTERY(+)
$54.67¢27 335
1
#26012
26012-0868
BATTERY,YTX9-BS,12V 8AH
No Disponible
1
#26031
26031-2261
HARNESS,MAIN
$1081.01¢540 506
1
#27002
27002-0019
RELAY-ASSY
No Disponible
1
#27002A
27002-0020
RELAY-ASSY,TURN SIGNAL
$38.70¢19 349
1
#27003
27003-0099
HORN
$94.33¢47 167
1
#39156
39156-1834
PAD,RADIATOR TOP
$7.89¢3 944
1
#55020
55020-1857
GUARD
$6.24¢3 122
1
#56030A
56030-0838
LABEL,FUSE BOX2
$2.85¢1 426
1
#56030
56030-0837
LABEL,FUSE BOX1
$3.78¢1 892
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-0749
BAND
$19.09¢9 545
1
#92152
92152-1592
COLLAR
$2.53¢1 265
1
#92154
92154-0829
BOLT,SOCKET,5X20
$2.27¢1 133
1
#92160
92160-1278
DAMPER
$4.01¢2 007
1
#92161A
92161-1564
DAMPER
$11.50¢5 750
1
#92161
92161-0056
DAMPER
$2.85¢1 426
1
#92171A
92171-1415
CLAMP,13MM DIA.
$1.83¢914
1
#92171
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92172
92172-0857
SCREW,5X12
$0.75¢374
1
#92173B
92173-1061
CLAMP
$4.80¢2 398
1
#92173A
92173-0791
CLAMP
$11.56¢5 779
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173C
92173-1182
CLAMP,TAIL LAMP
$5.00¢2 501
1
