SIDE COVERS CHAIN COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

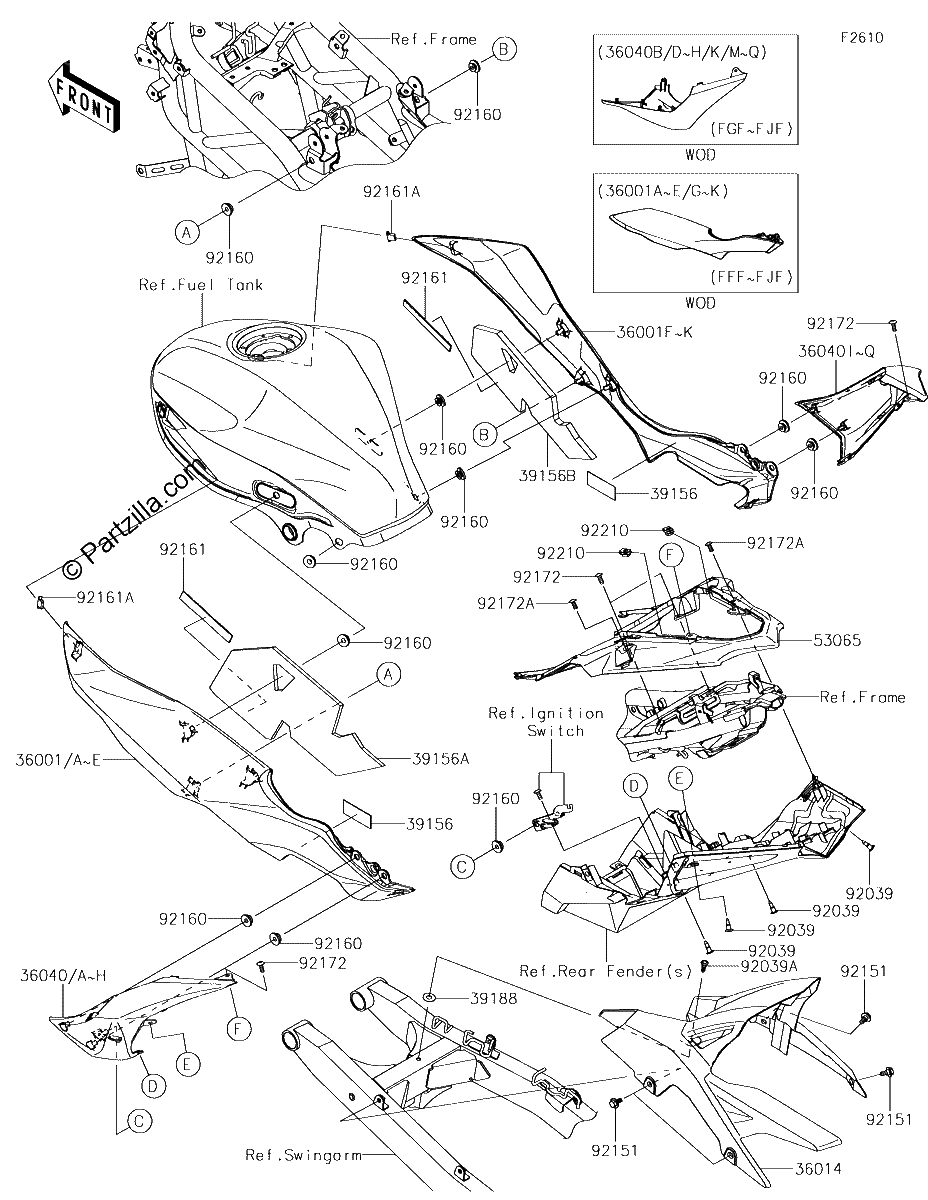

Diagrama de SIDE COVERS CHAIN COVER

Repuestos

#36001
36001-0601-45L
COVER-SIDE,LH,F.EBONY
$84.54¢42 268
1
#36001
36001-0601-51P
COVER-SIDE,LH,C.L.GREEN
No Disponible
1
#36001F
36001-0602-739
COVER-SIDE,RH,M.F.S.BLACK
No Disponible
1
#36001
36001-0601-60S
COVER-SIDE,LH,M.M.F.SILVER
$84.54¢42 268
1
#36001
36001-0601-725
COVER-SIDE,LH,M.F.R.TITANIUM
No Disponible
1
#36001
36001-0601-739
COVER-SIDE,LH,M.F.S.BLACK
No Disponible
1
#36001
36001-0601-H8
COVER-SIDE,LH,EBONY
$83.80¢41 900
1
#36001F
36001-0602-45L
COVER-SIDE,RH,F.EBONY
$84.54¢42 268
1
#36001F
36001-0602-51P
COVER-SIDE,RH,C.L.GREEN
No Disponible
1
#36001F
36001-0602-60S
COVER-SIDE,RH,M.M.F.SILVER
$84.54¢42 268
1
#36001F
36001-0602-725
COVER-SIDE,RH,M.F.R.TITANIUM
No Disponible
1
#36001F
36001-0602-H8
COVER-SIDE,RH,EBONY
$83.80¢41 900
1
#36014
36014-0562
CASE-CHAIN
$45.60¢22 799
1
#36040I
36040-0141-35P
COVER-TAIL,RH,C.L.GREEN
No Disponible
1
#36040I
36040-0141-45W
COVER-TAIL,RH,M.G.GRAY
$72.63¢36 317
1
#36040I
36040-0141-51P
COVER-TAIL,RH,C.L.GREEN
No Disponible
1
#36040I
36040-0141-723
COVER-TAIL,RH,C.P.BLUE
$72.63¢36 317
1
#36040I
36040-0141-725
COVER-TAIL,RH,M.F.R.TITANIUM
No Disponible
1
#36040I
36040-0141-H8
COVER-TAIL,RH,EBONY
$72.01¢36 006
1
#36040I
36040-0141-234
COVER-TAIL,RH,P.RED
No Disponible
1
#36040I
36040-0141-34T
COVER-TAIL,RH,C.S.RED
$72.63¢36 317
1
#36040I
36040-0141-17L
COVER-TAIL,RH,C.B.ORANGE
No Disponible
1
#36040
36040-0140-H8
COVER-TAIL,LH,EBONY
$72.01¢36 006
1
#36040
36040-0140-17L
COVER-TAIL,LH,C.B.ORANGE
No Disponible
1
#36040
36040-0140-234
COVER-TAIL,LH,P.RED
No Disponible
1
#36040
36040-0140-34T
COVER-TAIL,LH,C.S.RED
$72.63¢36 317
1
#36040
36040-0140-35P
COVER-TAIL,LH,C.L.GREEN
No Disponible
1
#36040
36040-0140-45W
COVER-TAIL,LH,M.G.GRAY
$72.63¢36 317
1
#36040
36040-0140-51P
COVER-TAIL,LH,C.L.GREEN
No Disponible
1
#36040
36040-0140-723
COVER-TAIL,LH,C.P.BLUE
$72.63¢36 317
1
#36040
36040-0140-725
COVER-TAIL,LH,M.F.R.TITANIUM
No Disponible
1
#39156B
39156-1951
PAD,SIDE COVER,RH
$44.25¢22 126
1
#39156
39156-1861
PAD,25X60X1
$1.26¢633
1
#39156A
39156-1950
PAD,SIDE COVER,LH
$44.25¢22 126
1
#39188
39188-0046
TAPE,8X19
$2.01¢1 006
1
#53065
53065-0024
COVER SEAT
$27.71¢13 858
1
#92039
92039-0707
RIVET
$1.75¢874
1
#92039A
92039-0709
RIVET
$2.27¢1 133
1
#92151
92151-1703
BOLT,FLANGED,6X13
$3.61¢1 805
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-1571
DAMPER,15X110X2
$2.02¢1 012
1
#92161A
92161-1626
DAMPER
$1.59¢793
1
#92172
92172-0016
SCREW
$2.02¢1 012
1
#92172A
92172-0857
SCREW,5X12
$0.75¢374
1
#92210
92210-0262
NUT,PLATE,5MM
$1.24¢621
1
