COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

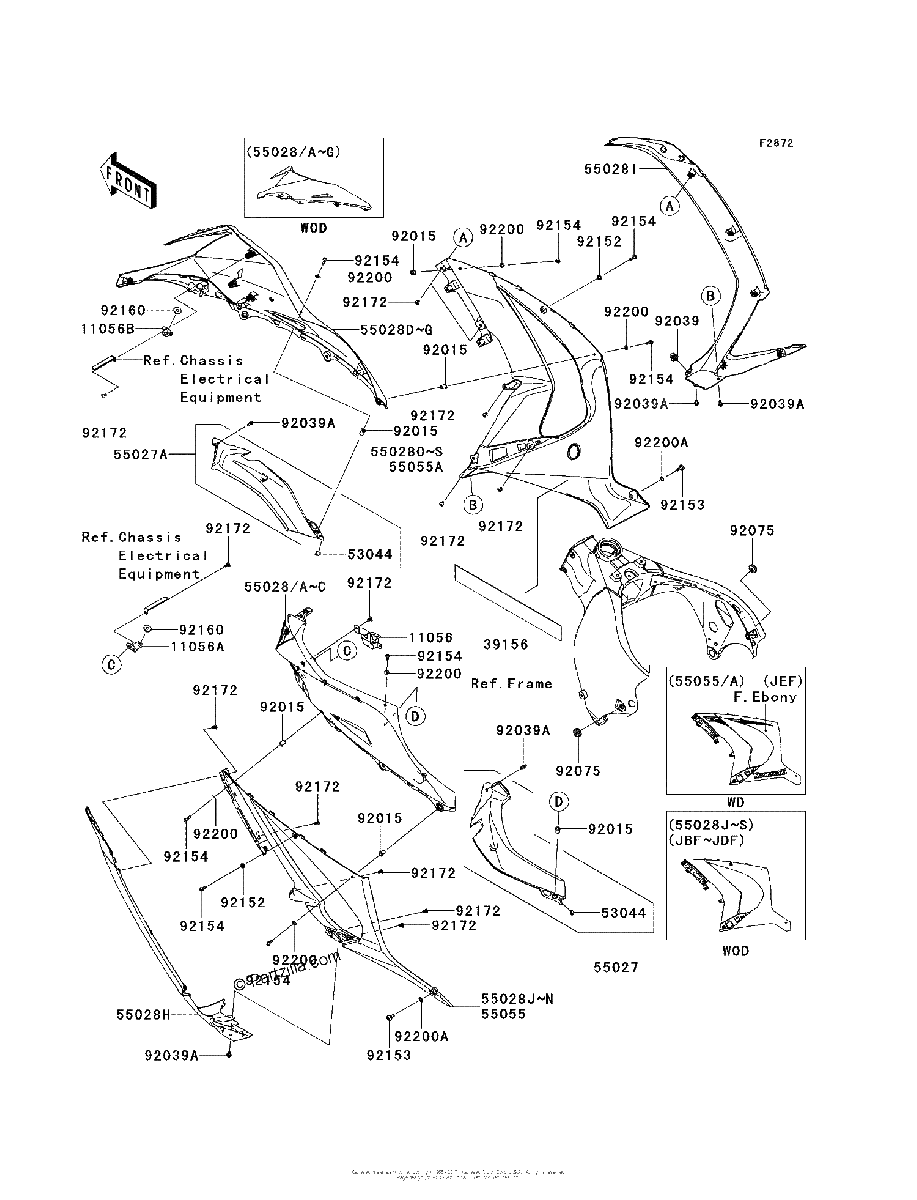

Diagrama de COWLING LOWERS

Repuestos

#11056
11056-0457
BRACKET,FUSE BOX
$12.36¢6 181
1
#11056A
11056-0709
BRACKET
$4.45¢2 225
1
#11056B
11056-0710
BRACKET
$4.45¢2 225
1
#39156
39156-0753
PAD,49X400X0.3
$19.46¢9 731
1
#53044
53044-0552
TRIM
$1.72¢862
1
#55027
55027-0060-6Z
COWLING Assembly,INNER,Left Hand,F BLACK
$50.49¢25 244
1
#55027A
55027-0061-6Z
COWLING Assembly,INNER,Right Hand,F BLACK
$53.41¢26 706
1
#55028J
55028-0338-H8
COWLING,SIDE,Left Hand,EBONY
$432.52¢216 263
1
#55028O
55028-0339-234
COWLING,SIDE,Right Hand,P RED
$451.21¢225 606
1
#55028O
55028-0339-33P
COWLING,SIDE,Right Hand,M F P GRAY
$451.21¢225 606
1
#55028O
55028-0339-40X
COWLING,SIDE,Right Hand,P F S WHITE
$408.14¢204 069
1
#55028O
55028-0339-777
COWLING,SIDE,Right Hand,L GREEN
$443.10¢221 550
1
#55028O
55028-0339-H8
COWLING,SIDE,Right Hand,EBONY
$451.21¢225 606
1
#55028J
55028-0338-40X
COWLING,SIDE,Left Hand,P F S WHITE
$432.54¢216 269
1
#55028J
55028-0338-777
COWLING,SIDE,Left Hand,L GREEN
$432.54¢216 269
1
#55028J
55028-0338-33P
COWLING,SIDE,Left Hand,M F P GRAY
$432.52¢216 263
1
#55028C
55028-0333-777
COWLING,SIDE,Upper,Left Hand,L GREEN
$319.14¢159 569
1
#55028
55028-0333-46K
COWLING,SIDE,Upper,Left Hand,P F C WHT
$357.84¢178 919
1
#55028A
55028-0333-46K
COWLING,SIDE,Upper,Left Hand,P F C WHT
$357.84¢178 919
1
#55028
55028-0333-660
COWLING,SIDE,Upper,Left Hand,M S BLACK
$319.14¢159 569
1
#55028
55028-0333-777
COWLING,SIDE,Upper,Left Hand,L GREEN
$319.14¢159 569
1
#55028J
55028-0338-234
COWLING,SIDE,Left Hand,P RED
$432.52¢216 263
1
#55028
55028-0333-H8
COWLING,SIDE,Upper,Left Hand,EBONY
$357.84¢178 919
1
#55028E
55028-0334-46K
COWLING,SIDE,Upper,Right Hand,P F C WHT
$357.84¢178 919
1
#55028D
55028-0334-46K
COWLING,SIDE,Upper,Right Hand,P F C WHT
$357.84¢178 919
1
#55028D
55028-0334-660
COWLING,SIDE,Upper,Right Hand,M S BLACK
$357.84¢178 919
1
#55028D
55028-0334-777
COWLING,SIDE,Upper,Right Hand,L GREEN
$357.84¢178 919
1
#55028G
55028-0334-777
COWLING,SIDE,Upper,Right Hand,L GREEN
$357.84¢178 919
1
#55028D
55028-0334-H8
COWLING,SIDE,Upper,Right Hand,EBONY
$357.84¢178 919
1
#55028H
55028-0336-6Z
COWLING,SIDE,Front,Left Hand,F BLACK
$80.19¢40 094
1
#55028I
55028-0337-6Z
COWLING,SIDE,Front,Right Hand,F BLACK
$77.35¢38 675
1
#55055
55055-5322-45L
COWLING,SIDE,Left Hand,F EBONY
$647.09¢323 544
1
#55055A
55055-5323-45L
COWLING,SIDE,Right Hand,F EBONY
$647.09¢323 544
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.97¢1 487
1
#92039A
92039-0068
RIVET
$2.73¢1 363
1
#92075
92075-1067
DAMPER
$4.65¢2 325
1
#92152
92152-0912
COLLAR,5.3X7.3X5.3
$3.65¢1 825
1
#92153
92153-0489
BOLT,SOCKET,6MM
$3.70¢1 850
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92200A
92200-0157
WASHER,10.4X15.9X0.5
$2.04¢1 019
1
