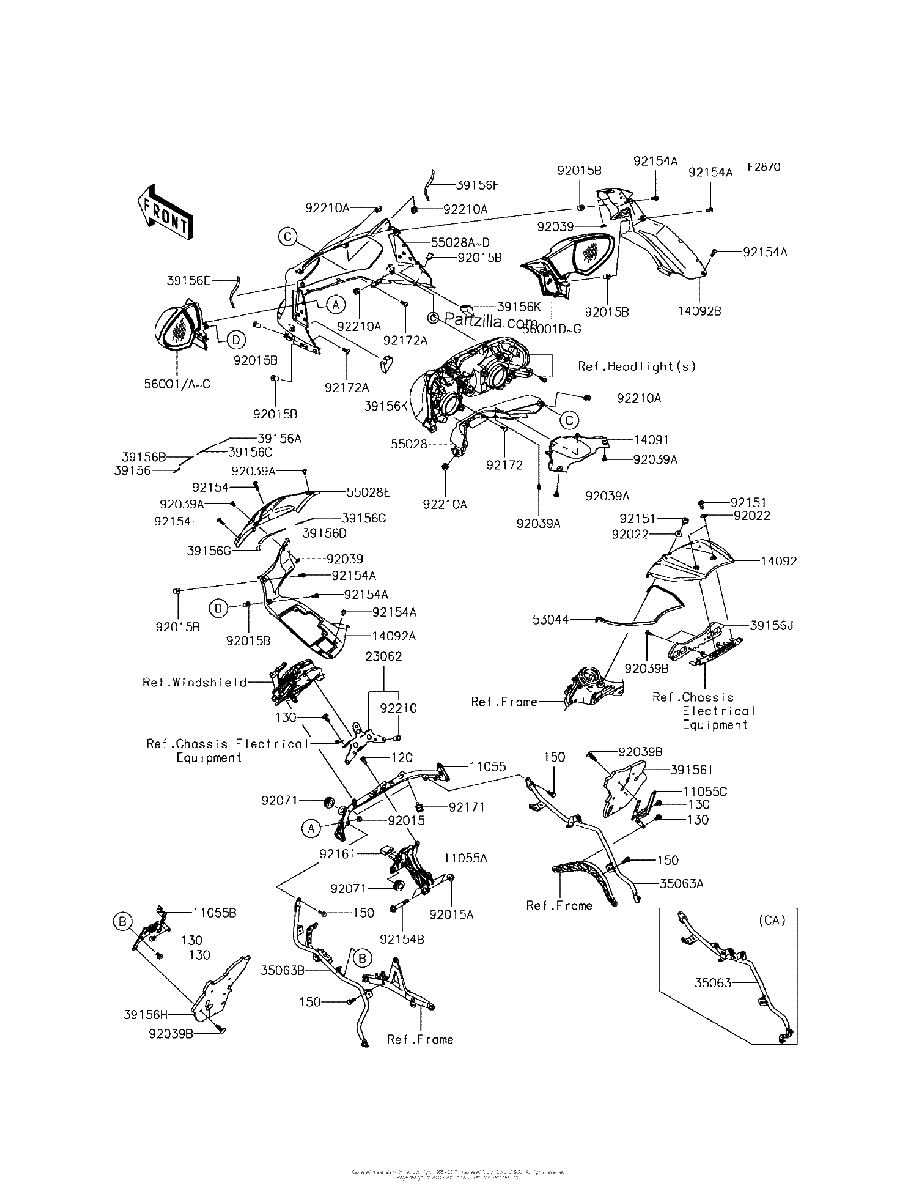

COWLING UPPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#120
BOLT-SOCKET,6X12
$1.53¢765
#130
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#150
BOLT WS,6X16
$3.45¢1 725
#11055
BRACKET,MIRROR
$200.77¢100 384
#11055A
BRACKET,COWLING
$197.49¢98 745
#11055C
BRACKET,PAD,Right Hand
$10.91¢5 457
#11055B
BRACKET,PAD,LH
$13.87¢6 935
#14091
COVER,SHROUD,CNT
$42.08¢21 039
#14092B
COVER,INNER,Right Hand
$94.40¢47 202
#14092A
COVER,INNER,LH
$94.40¢47 202
#14092
COVER,FUEL TANK
$149.11¢74 554
#23062
BRACKET-COMP,METER
$203.91¢101 953
#35063B
STAY,COWLING,Left Hand
$289.29¢144 647
#35063A
STAY,COWLING,RH | [CN,US]
$289.29¢144 647
#35063
STAY,COWLING,Right Hand
$289.29¢144 647
#39156
PAD,UPP COWLING,CNT,LH
$6.24¢3 122
#39156B
PAD,UPP COWLING,CNT,LH
$7.77¢3 887
#39156A
PAD,Upper COWLING,CNT,Right Hand
$6.24¢3 122
#39156C
PAD,UPP COWLING,CNT,RH
$7.77¢3 887
#39156D
PAD,UPP COWLING,CNT
$20.14¢10 068
#39156K
PAD
$14.52¢7 262
#39156J
PAD,CNT
$7.85¢3 927
#39156I
PAD,RH
$26.45¢13 225
#39156H
PAD,Left Hand
$26.45¢13 225
#39156G
PAD,UPP COWLING,CNT
$2.28¢1 138
#39156F
PAD,UPP COWLING,RH
$7.77¢3 887
#39156E
PAD,Upper COWLING,Left Hand
$24.62¢12 311
#53044
TRIM
$48.12¢24 058
#55028G
COWLING,CNT
$101.29¢50 646
#55028E
COWLING,CNT
$101.29¢50 646
#55028D
COWLING,Upper,M S BLACK
$530.64¢265 322
#55028A
COWLING,Upper,M S BLACK
$530.64¢265 322
#55028A
COWLING,Upper,M M F SILVER
$582.59¢291 295
#55028C
COWLING,Upper,C L GREEN
$556.24¢278 122
#55028A
COWLING,Upper,C L GREEN
$556.24¢278 122
#55028A
COWLING,Upper,M C GRAY
$582.59¢291 295
#55028A
COWLING,Upper,M M GRAY
$555.50¢277 748
#55028A
COWLING,Upper,C I BLUE
$555.50¢277 748
#55028
COWLING,INTAKE
$65.11¢32 556
#56001
MIRROR Assembly,Left Hand,M S BLACK
$260.46¢130 232
#56001F
MIRROR Assembly,Right Hand,M S BLACK
$260.46¢130 232
#56001F
MIRROR Assembly,Right Hand,M M F SILVER
$270.77¢135 384
#56001F
MIRROR Assembly,Right Hand,C L GREEN
$273.67¢136 833
#56001F
MIRROR Assembly,Right Hand,M C GRAY
$270.77¢135 384
#56001F
MIRROR Assembly,Right Hand,M M GRAY
$270.77¢135 384
#56001F
MIRROR Assembly,Right Hand,C I BLUE
$270.77¢135 384
#56001C
MIRROR Assembly,Left Hand,M S BLACK
$260.46¢130 232
#56001
MIRROR Assembly,Left Hand,M M F SILVER
$289.03¢144 515
#56001B
MIRROR Assembly,Left Hand,C L GREEN
$292.15¢146 073
#56001
MIRROR Assembly,Left Hand,C L GREEN
$292.15¢146 073
#56001
MIRROR Assembly,Left Hand,M C GRAY
$289.03¢144 515
#56001
MIRROR Assembly,Left Hand,M M GRAY
$289.03¢144 515
#56001
MIRROR Assembly,Left Hand,C I BLUE
$257.80¢128 898
#56001G
MIRROR Assembly,Right Hand,M S BLACK
$260.46¢130 232
#92015
NUT,FLANGED,6MM
$3.02¢1 512
#92015A
NUT,8MM
$5.91¢2 956
#92015B
NUT,WELL,5MM
$6.68¢3 341
#92022
WASHER,6.5X16X1
$3.59¢1 794
#92039
RIVET
$4.45¢2 225
#92039B
RIVET
$3.22¢1 610
#92039A
RIVET
$4.24¢2 122
#92071
GROMMET
$7.11¢3 553
#92151
BOLT,SOCKET,6X14
$1.49¢747
#92154A
BOLT,SOCKET,5X16
$2.33¢1 167
#92154B
BOLT,FLANGED,8X53
$3.78¢1 892
#92154
BOLT,SOCKET,5X16
$2.17¢1 087
#92161
DAMPER,HEAD LAMP
$9.11¢4 554
#92171
CLAMP
$2.60¢1 299
#92172A
SCREW,5X16
$1.87¢937
#92172
SCREW,TAPPING,5X14
$1.24¢621
#92210
NUT,POP,6MM,L=16.5
$5.04¢2 519
#92210A
NUT
$3.22¢1 610
