SADDLEBAGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

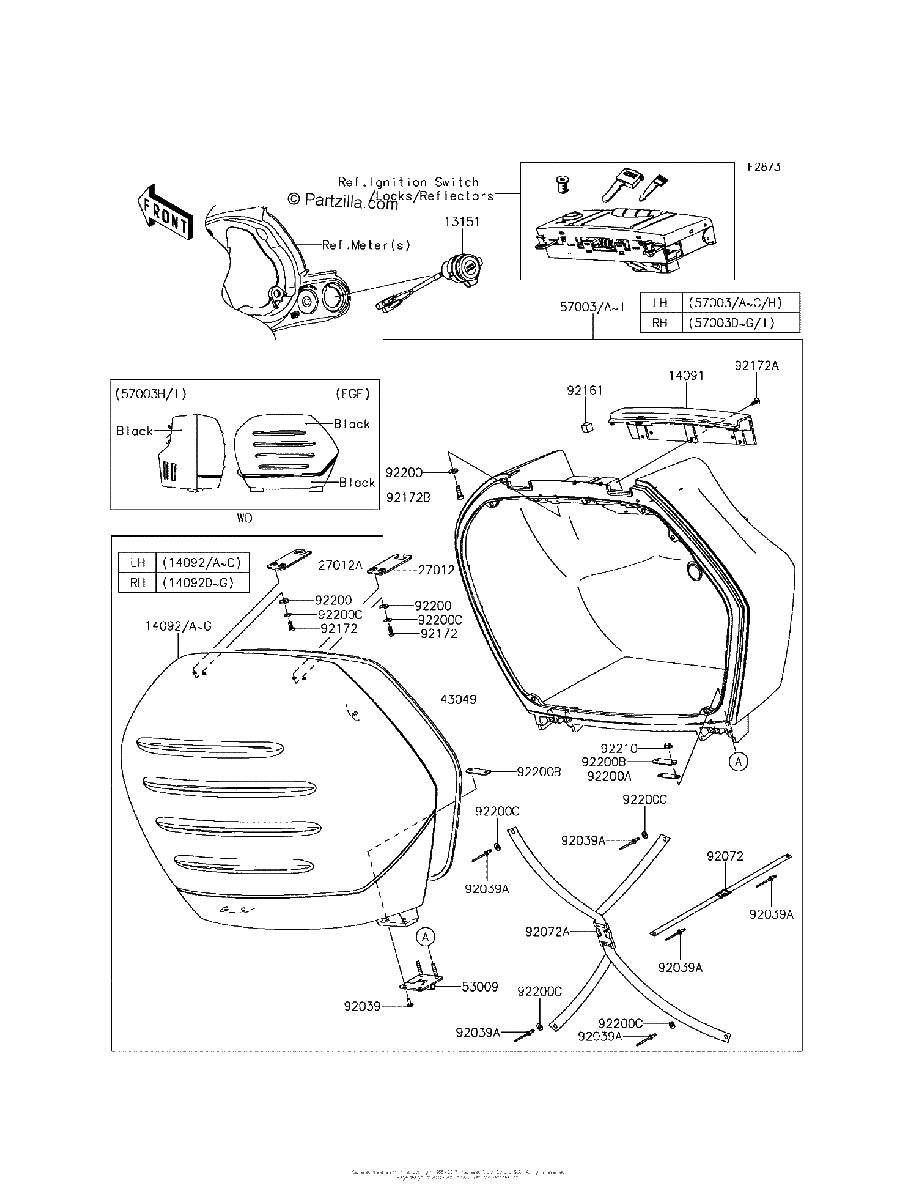

Diagrama de SADDLEBAGS

Repuestos

#13151
13151-0040
SWITCH COMP
$180.26¢90 131
1
#14091
14091-1688
COVER,SIDE BAG,LID
$170.17¢85 087
1
#14092
14092-0123-660
COVER,SIDE BAG,Right Hand,M S BLACK
$606.04¢303 019
1
#14092
14092-0123-60S
COVER,SIDE BAG,Right Hand,M M F SILVER
$606.04¢303 019
1
#14092
14092-0123-51P
COVER,SIDE BAG,Right Hand,C L GREEN
$606.85¢303 425
1
#14092
14092-0123-25X
COVER,SIDE BAG,RH,M.M.GRAY
$606.04¢303 019
1
#14092
14092-0123-25U
COVER,SIDE BAG,Right Hand,C I BLUE
$606.04¢303 019
1
#14092
14092-0122-660
COVER,SIDE BAG,Left Hand,M S BLACK
$606.04¢303 019
1
#14092
14092-0122-60S
COVER,SIDE BAG,Left Hand,M M F SILVER
$662.72¢331 362
1
#14092
14092-0122-51P
COVER,SIDE BAG,Left Hand,C L GREEN
$606.85¢303 425
1
#14092
14092-0122-25X
COVER,SIDE BAG,LH,M.M.GRAY
$662.72¢331 362
1
#14092
14092-0122-25U
COVER,SIDE BAG,Left Hand,C I BLUE
$662.72¢331 362
1
#14092G
14092-0123-660
COVER,SIDE BAG,Right Hand,M S BLACK
$606.04¢303 019
1
#14092B
14092-0122-51P
COVER,SIDE BAG,Left Hand,C L GREEN
$606.85¢303 425
1
#14092C
14092-0122-660
COVER,SIDE BAG,Left Hand,M S BLACK
$606.04¢303 019
1
#14092F
14092-0123-51P
COVER,SIDE BAG,Right Hand,C L GREEN
$606.85¢303 425
1
#14093
14093-5190-51A
COVER,SIDE BAG,Left Hand,M C GRAY
$718.32¢359 162
1
#14093
14093-5191-51A
COVER,SIDE BAG,Right Hand,M C GRAY
$718.32¢359 162
1
#27012
27012-0110
HOOK
$24.15¢12 075
1
#27012A
27012-0111
HOOK
$24.15¢12 075
1
#43049
43049-0010
PACKING
$18.47¢9 237
1
#53009
53009-0020
HINGE
$34.67¢17 338
1
#57003
57003-0102-51Y
BAG Assembly,Right Hand,BLACK/GREEN
$947.11¢473 556
1
#57003
57003-0102-62R
BAG Assembly,Right Hand,F BLACK+SIL
$911.88¢455 938
1
#57003
57003-5442-27X
BAG Assembly,Left Hand,BLACK/BLACK
$989.90¢494 950
1
#57003
57003-5443-27X
BAG Assembly,Right Hand,BLACK/BLACK
$989.90¢494 950
1
#57003
57003-0102-28V
BAG Assembly,Right Hand,F BLACK+BLU
$911.88¢455 938
1
#57003G
57003-0102-51Y
BAG Assembly,Right Hand,BLACK/GREEN
$947.11¢473 556
1
#57003
57003-0101-51Y
BAG Assembly,Left Hand,BLACK/GREEN
$947.11¢473 556
1
#57003E
57003-0102-27X
BAG Assembly,Right Hand,BLACK/BLACK
$947.11¢473 556
1
#57003
57003-0102-26B
BAG-ASSY,RH,BLACK/GRAY
$911.88¢455 938
1
#57003
57003-0101-62R
BAG Assembly,Left Hand,F BLACK+SIL
$911.88¢455 938
1
#57003
57003-0101-28V
BAG Assembly,Left Hand,F BLACK+BLU
$911.88¢455 938
1
#57003
57003-0101-27X
BAG Assembly,Left Hand,BLACK/BLACK
$947.11¢473 556
1
#57003
57003-0102-27X
BAG Assembly,Right Hand,BLACK/BLACK
$947.11¢473 556
1
#57003
57003-0101-26B
BAG-ASSY,LH,BLACK/GRAY
$911.88¢455 938
1
#57003A
57003-0101-27X
BAG Assembly,Left Hand,BLACK/BLACK
$947.11¢473 556
1
#57003C
57003-0101-51Y
BAG Assembly,Left Hand,BLACK/GREEN
$947.11¢473 556
1
#57004
57004-5001-60Z
BAG Assembly,Left Hand,F BLACK+GRY
$989.90¢494 950
1
#57004
57004-5002-60Z
BAG Assembly,Right Hand,F BLACK+GRY
$989.90¢494 950
1
#92039A
92039-0072
RIVET
$4.11¢2 056
1
#92039
92039-0063
RIVET
$2.73¢1 363
1
#92072A
92072-1368
BAND
$59.79¢29 894
1
#92072
92072-0082
BAND
$26.29¢13 144
1
#92161
92161-0573
DAMPER
$4.11¢2 056
1
#92172A
92172-0306
SCREW,4X8
$2.13¢1 063
1
#92172B
92172-0493
SCREW,5X15
$1.69¢844
1
#92172
92172-0303
SCREW,4X12
$2.13¢1 063
1
#92200A
92200-0374
WASHER
$4.11¢2 056
1
#92200B
92200-0375
WASHER
$3.89¢1 944
1
#92200C
92200-0416
WASHER
$2.11¢1 056
1
#92200
92200-0373
WASHER,5MM
$2.13¢1 063
1
#92210
92210-0434
NUT,CAP,4MM
$2.52¢1 263
1
