FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

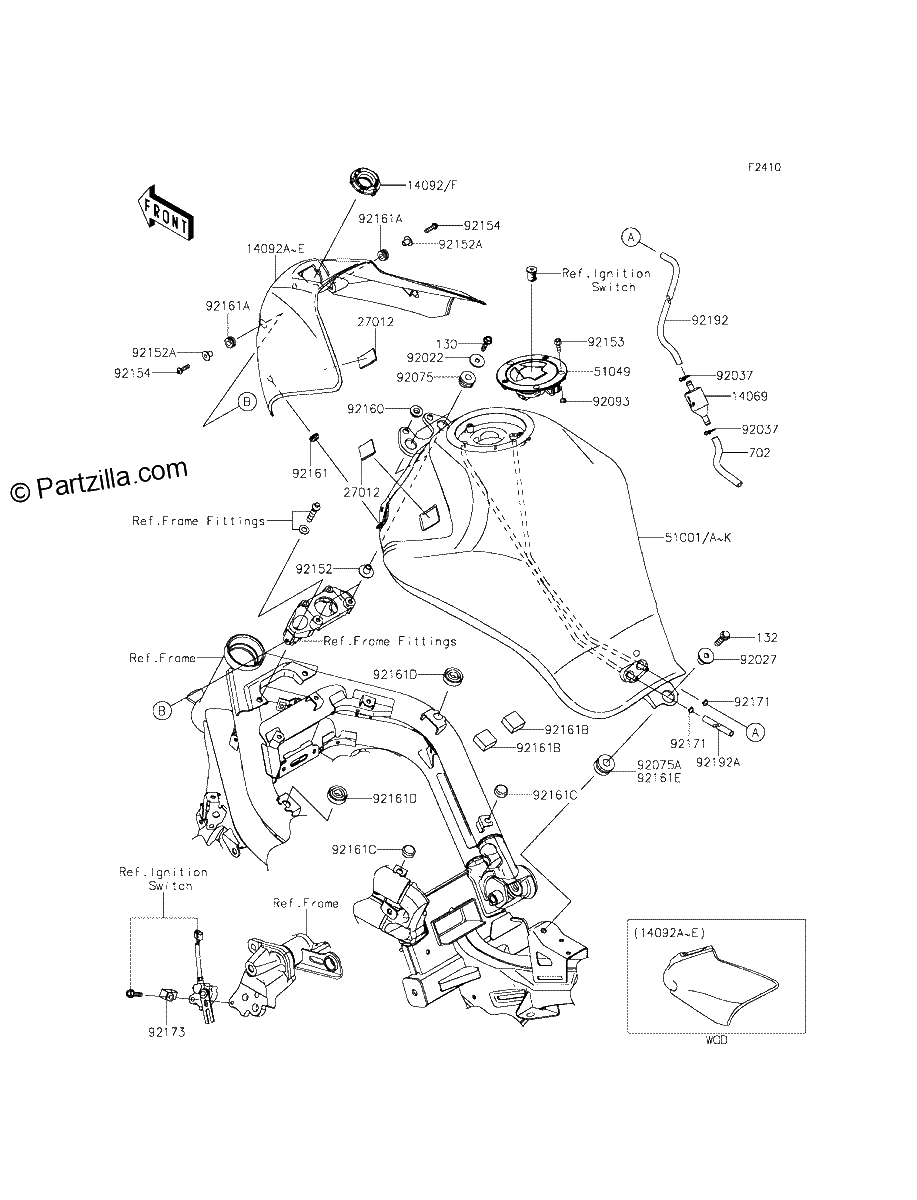

Diagrama de FUEL TANK

Repuestos

#130
130CA0625
BOLT-FLANGED,6X25
$4.06¢2 030
1
#132
132BA0830
BOLT FLANGED SMALL,8X30
$4.06¢2 030
1
#702
702A07100
TUBE RUBBER,7X10X100
$12.11¢6 055
1
#14069
14069-1004
BREATHER,FUEL TANK
$9.30¢4 652
1
#14092
14092-0730
COVER,IGNITION SW.
$4.98¢2 490
1
#14092
14092-1033
COVER,IGNITION SW.
$4.58¢2 289
1
#14092A
14092-0731-51P
COVER,TANK,C L GREEN
$237.12¢118 559
1
#14092A
14092-0731-15V
COVER,TANK,M F S BLACK
$237.44¢118 720
1
#14092A
14092-0731-53Q
COVER,TANK,U C WHITE
$237.12¢118 559
1
#14092A
14092-0731-660
COVER,TANK,M S BLACK
$237.12¢118 559
1
#14092A
14092-0731-739
COVER,TANK,M F S BLACK
$237.12¢118 559
1
#27012
27012-0717
HOOK,DUAL LOCK FASTENER
$6.99¢3 496
1
#51001
51001-0708-35K
TANK COMP FUEL,C F B GREEN
$910.34¢455 170
1
#51001
51001-0708-FT
TANK COMP FUEL,F RED
$1333.26¢666 632
1
#51001
51001-0708-660
TANK COMP FUEL,M S BLACK
$1286.31¢643 155
1
#51001
51001-0708-51P
TANK COMP FUEL,C L GREEN
$1286.31¢643 155
1
#51001
51001-0708-51A
TANK COMP FUEL,M C GRAY
No Disponible
1
#51001
51001-0708-40X
TANK COMP FUEL,P F S WHITE
$1308.02¢654 011
1
#51001
51001-0708-35P
TANK COMP FUEL,C L GREEN
$1311.13¢655 563
1
#51001
51001-0708-15Z
TANK COMP FUEL,M S BLACK
$1333.28¢666 638
1
#51001
51001-0708-35E
TANK COMP FUEL,P S YELLOW
No Disponible
1
#51001
51001-0708-25Y
TANK COMP FUEL,P S WHITE
$1311.13¢655 563
1
#51001
51001-0708-15V
TANK COMP FUEL,M F S BLACK
No Disponible
1
#51001
51001-0708-15S
TANK COMP FUEL,P S WHITE
$1333.28¢666 638
1
#51049
51049-0039
CAP TANK,FUEL
$159.95¢79 977
1
#92022
92022-228
WASHER,7X24X1.6
$3.59¢1 794
1
#92027
92027-1780
COLLAR,L=19.3
$5.91¢2 956
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92075A
92075-1736
DAMPER
$5.91¢2 956
1
#92075
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152A
92152-1562
COLLAR,5.6X8X11.2
$2.27¢1 133
1
#92152
92152-0910
COLLAR,6.5X10X13.1
$1.55¢776
1
#92153
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92154
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-0685
DAMPER,8X16X8.6
$5.95¢2 973
1
#92161B
92161-0792
DAMPER,T=13
$3.52¢1 759
1
#92161C
92161-0855
DAMPER,10X20X8
$3.90¢1 949
1
#92161D
92161-1368
DAMPER,14X30X10
$2.08¢1 041
1
#92161E
92161-1494
DAMPER,12X28X17
$2.63¢1 317
1
#92161
92161-0631
DAMPER
$6.75¢3 375
1
#92171
92171-1973
CLAMP,8X0.7
$1.24¢621
1
#92173
92173-0833
CLAMP
$3.54¢1 771
1
#92192
92192-0966
TUBE,6X9X631 | [CN,US]
$12.47¢6 233
1
#92192A
92192-1091
TUBE,6X9X821
$13.77¢6 883
1
