CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

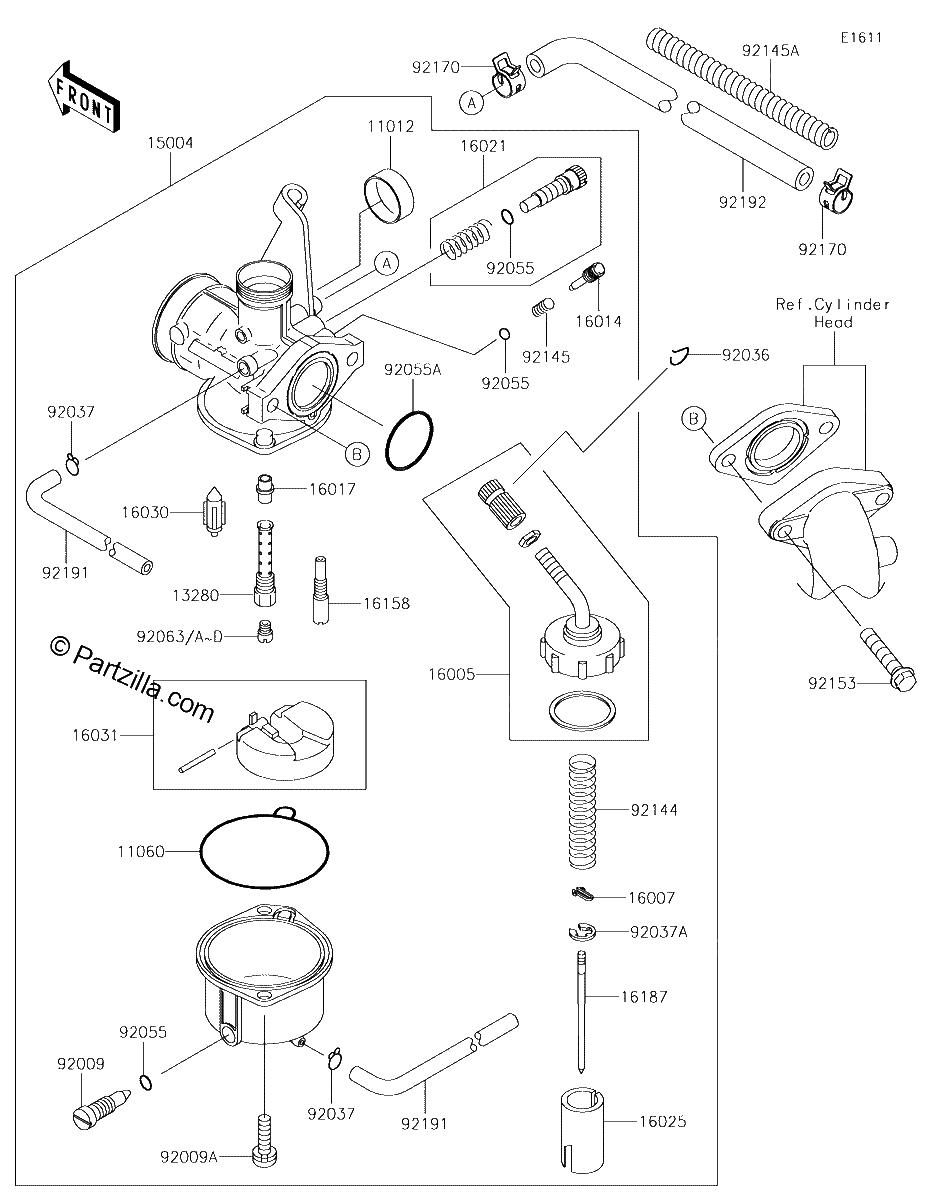

Diagrama de CARBURETOR

Repuestos

#11012
11012-1940
CAP,CHOKE
No Disponible
1
#11060
11060-1700
GASKET,FLOAT CHAMBER
No Disponible
1
#13280
13280-0359
HOLDER,NEEDLE JET
$34.29¢17 144
1
#15004
15004-0065
CARBURETOR Assembly,PB18
$212.71¢106 356
1
#16005
16005-1091
TOP CHAMBER
$25.14¢12 569
1
#16007
16007-1103
SEAT-SPRING
$7.23¢3 613
1
#16014
16014-0011
SCREW-PILOT AIR
$18.73¢9 363
1
#16017
16017-1434
JET NEEDLE
$56.66¢28 331
1
#16021
16021-1241
SCREW-THROTTLE STOP
$19.19¢9 594
1
#16025
16025-1209
VALVE THROTTLE,CA3.0
$118.73¢59 363
1
#16030
16030-0002
VALVE FLOAT,FLOAT
No Disponible
1
#16031
16031-1088
FLOAT
$62.98¢31 488
1
#16158
16158-0005
JET SLOW,#40
$16.81¢8 406
1
#16187
16187-1228
NEEDLE-JET,NCFA
$43.59¢21 794
1
#92009
92009-1057
SCREW,DRAIN
$9.03¢4 513
1
#92009A
92009-1750
SCREW
$4.59¢2 294
1
#92036
92036-018
RING-SNAP
$3.88¢1 938
1
#92037A
92037-1401
CLAMP,JET NEEDLE
$4.29¢2 144
1
#92037
92037-1142
CLAMP,TUBE
$4.29¢2 144
1
#92055A
92055-1541
RING-O
$2.55¢1 275
1
#92055
92055-1053
RING O
$4.22¢2 113
1
#92063
92063-1393
JET-MAIN,#78
$14.84¢7 419
1
#92063
92063-1394
JET MAIN,#72
$12.94¢6 469
1
#92063
92063-1395
JET MAIN,#75
$14.05¢7 025
1
#92063
92063-1396
JET-MAIN,#80
$14.05¢7 025
1
#92063
92063-1397
JET MAIN,#82
$14.05¢7 025
1
#92144
92144-1875
SPRING,THROTTLE
$17.98¢8 988
1
#92145A
92145-1481
SPRING,HOSE PROTECTER
$6.00¢3 000
1
#92145
92145-0004
SPRING
$6.18¢3 088
1
#92153
92153-1309
BOLT,FLANGED-SMALL,6X28
$2.84¢1 419
1
#92170
92170-1872
CLAMP
$3.98¢1 988
1
#92191
92191-1735
TUBE,3.5X6.5X418
$17.89¢8 944
1
#92192
92192-0583
TUBE,5.8X10.8X277
$90.30¢45 150
1
