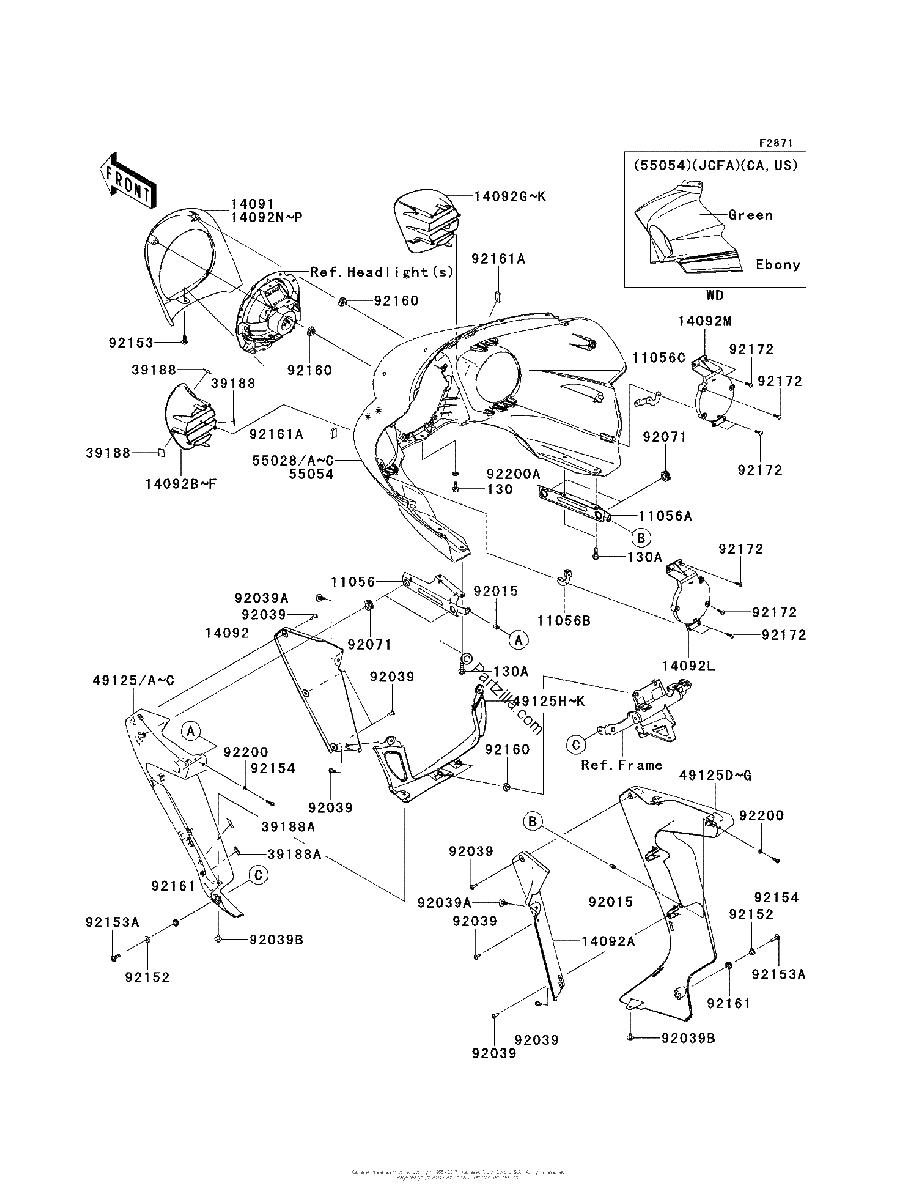

COWLING OUTER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X16
$0.61¢305
#130A
BOLT-FLANGED,6X25
$2.21¢1 104
#11056
BRACKET,SHROUD,LH
$18.07¢9 033
#11056A
BRACKET,SHROUD,RH
$18.07¢9 033
#11056B
BRACKET,SUB LAMP,Left Hand,Lower
$6.21¢3 105
#11056C
BRACKET,SUB LAMP,RH,LWR
$6.21¢3 105
#14091
COVER,HEAD LAMP
$300.92¢150 460
#14092
COVER,SHROUD,INNNER,LH
$37.20¢18 601
#14092B
COVER,SUB LAMP,Left Hand,C P BLUE
$147.91¢73 956
#14092A
COVER,SHROUD,INNNER,RH
$37.20¢18 601
#14092B
COVER,SUB LAMP,Left Hand,C L GREEN
$147.91¢73 956
#14092B
COVER,SUB LAMP,Left Hand,M S BLACK
$141.08¢70 541
#14092N
COVER,HEAD LAMP,C F RED
$274.94¢137 471
#14092D
COVER,SUB LAMP,Left Hand,M S BLACK
$141.08¢70 541
#14092E
COVER,SUB LAMP,Left Hand,C P BLUE
$147.91¢73 956
#14092B
COVER,SUB LAMP,Left Hand,C F RED
$147.91¢73 956
#14092N
COVER,HEAD LAMP,C L GREEN
$274.94¢137 471
#14092O
COVER,HEAD LAMP,C P BLUE
$274.94¢137 471
#14092N
COVER,HEAD LAMP,C P BLUE
$274.94¢137 471
#14092M
COVER,SUB LAMP,INNNER,Right Hand
$32.91¢16 457
#14092B
COVER,SUB LAMP,Left Hand,EBONY
$138.69¢69 345
#14092L
COVER,SUB LAMP,INNNER,Left Hand
$32.91¢16 457
#14092G
COVER,SUB LAMP,RH,EBONY
$138.69¢69 345
#14092G
COVER,SUB LAMP,Right Hand,C F RED
$147.91¢73 956
#14092G
COVER,SUB LAMP,Right Hand,C P BLUE
$147.91¢73 956
#14092J
COVER,SUB LAMP,Right Hand,C P BLUE
$147.91¢73 956
#14092G
COVER,SUB LAMP,Right Hand,M S BLACK
$141.08¢70 541
#14092I
COVER,SUB LAMP,Right Hand,M S BLACK
$141.08¢70 541
#14092G
COVER,SUB LAMP,Right Hand,C L GREEN
$147.91¢73 956
#39188
TAPE
$3.51¢1 754
#39188A
TAPE
$3.36¢1 679
#49125H
SHROUD,Lower,CNT,M S BLACK
$204.90¢102 448
#49125
SHROUD,OUTER,Left Hand,M S BLACK
$214.49¢107 243
#49125
SHROUD,OUTER,Left Hand,C P BLUE
$227.15¢113 574
#49125B
SHROUD,OUTER,Left Hand,C P BLUE
$227.15¢113 574
#49125
SHROUD,OUTER,Left Hand,EBONY
$223.04¢111 521
#49125D
SHROUD,OUTER,Right Hand,M S BLACK
$214.49¢107 243
#49125E
SHROUD,OUTER,Right Hand,M S BLACK
$214.49¢107 243
#49125D
SHROUD,OUTER,Right Hand,C P BLUE
$227.15¢113 574
#49125F
SHROUD,OUTER,Right Hand,C P BLUE
$227.15¢113 574
#49125D
SHROUD,OUTER,Right Hand,C F RED
$227.15¢113 574
#49125D
SHROUD,OUTER,Right Hand,EBONY
$223.04¢111 521
#49125I
SHROUD,Lower,CNT,M S BLACK
$204.90¢102 448
#49125J
SHROUD,Lower,CNT,C P BLUE
$216.98¢108 491
#49125H
SHROUD,Lower,CNT,C P BLUE
$216.98¢108 491
#49125H
SHROUD,Lower,CNT,C F RED
$216.98¢108 491
#49125H
SHROUD,Lower,CNT,EBONY
$213.01¢106 507
#49125A
SHROUD,OUTER,Left Hand,M S BLACK
$214.49¢107 243
#49125
SHROUD,OUTER,Left Hand,C F RED
$227.15¢113 574
#55028B
COWLING,Upper,OUTER,M S BLACK
$1105.08¢552 541
#55028C
COWLING,Upper,OUTER,C P BLUE
$1105.08¢552 541
#55028
COWLING,Upper,OUTER,C P BLUE
$1105.08¢552 541
#55028
COWLING,Upper,OUTER,M S BLACK
$1105.08¢552 541
#55028
COWLING,Upper,OUTER,C F RED
No Disponible
#55028
COWLING,UPP,OUTER,EBO
No Disponible
#55054
COWLING Assembly,GREEN/EBONY
$1597.57¢798 784
#92015
NUT,WELL,5MM
$6.68¢3 341
#92039A
RIVET
$5.01¢2 507
#92039B
RIVET
$2.37¢1 185
#92039
RIVET
$2.51¢1 254
#92071
GROMMET
$7.11¢3 553
#92152
COLLAR
$5.12¢2 559
#92153A
BOLT,SOCKET,6X22
$1.87¢937
#92153
BOLT,SOCKET,6X16
$1.87¢937
#92154
BOLT,SOCKET,5X20
$1.84¢920
#92160
DAMPER
$3.40¢1 702
#92161A
DAMPER
$0.93¢466
#92161
DAMPER
$1.59¢793
#92172
SCREW,TAPPING,5X20
$2.17¢1 087
#92200
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
#92200A
WASHER,6.5X12X2
$2.43¢1 213
