FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

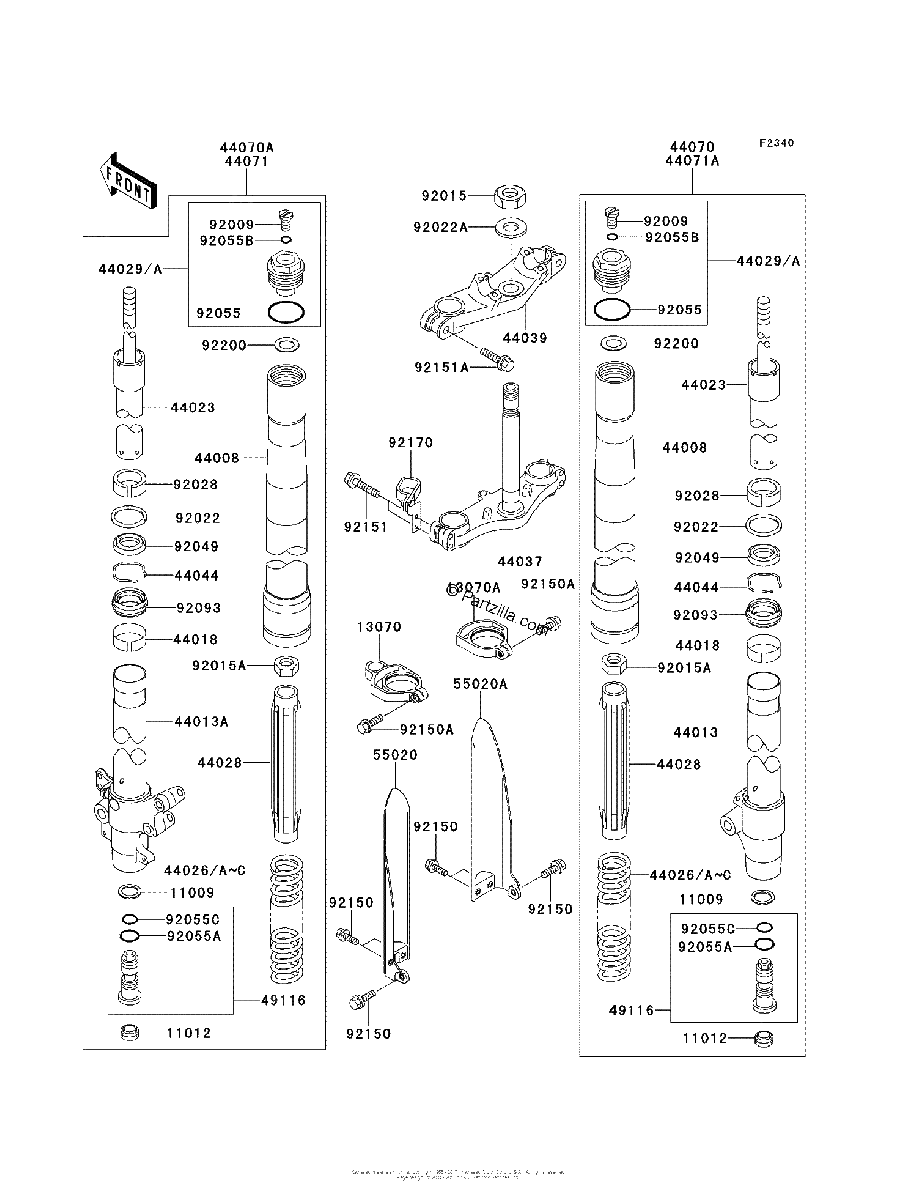

Diagrama de FRONT FORK

Repuestos

#11009
11009-1592
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
1
#11012
11012-1692
CAP
$6.29¢3 144
1
#13070
13070-0049-6D
GUIDE,PROTECTOR,Left Hand,BLACK
$23.65¢11 825
1
#13070A
13070-0050-6D
GUIDE,PROTECTOR,Right Hand,BLACK
$23.65¢11 825
1
#44008
44008-1041-828
PIPE FORK OUTER,GOLD
$594.17¢297 088
1
#44013
44013-1442
PIPE-FORK INNER,RH
$389.50¢194 750
1
#44013A
44013-1484
PIPE FORK INNER,Left Hand
$345.06¢172 531
1
#44018
44018-1058
PISTON-FORK
$23.45¢11 725
1
#44023
44023-1119
CYLINDER-SET-FORK
$471.88¢235 938
1
#44026A
44026-1634
SPRING-FRONT FORK,K=2.84N/MM
$72.26¢36 131
1
#44026
44026-1633
SPRING-FRONT FORK,K=2.75N/MM
$72.26¢36 131
1
#44026
44026-1634
SPRING-FRONT FORK,K=2.84N/MM
$72.26¢36 131
1
#44026B
44026-1635
SPRING-FRONT FORK,K=2.94N/MM
$72.26¢36 131
1
#44026
44026-1635
SPRING-FRONT FORK,K=2.94N/MM
$72.26¢36 131
1
#44026C
44026-1671
SPRING-FRONT FORK,K=2.65N/MM
$78.72¢39 363
1
#44026
44026-1671
SPRING-FRONT FORK,K=2.65N/MM
$78.72¢39 363
1
#44028
44028-1090
GUIDE-FORK SPRING
$49.39¢24 694
1
#44029
44029-0056-KW
SEAT FORK SPRING,BLUE
$86.80¢43 400
1
#44029
44029-1152
SEAT-FORK SPRING
$82.24¢41 119
1
#44037
44037-0032-21
HOLDER FORK UNDER,F BLACK
$408.33¢204 163
1
#44039
44039-0023-21
HOLDER FORK UPPER,F BLACK
$183.58¢91 788
1
#44044
44044-015
RING-SNAP,FORK OIL
$14.78¢7 388
1
#44070A
44070-1849-828
DAMPER Assembly,FORK,Left Hand,GOLD
$1200.84¢600 419
1
#44070
44070-1631-828
DAMPER Assembly,FORK,Right Hand,GOLD
$1200.84¢600 419
1
#44071
44071-5131
DAMPER Assembly,FORK,Left Hand
$1182.66¢591 331
1
#44071A
44071-5132
DAMPER Assembly,FORK,Right Hand
$1182.66¢591 331
1
#49116
49116-1153
VALVE Assembly,FORK
$180.38¢90 188
1
#55020
55020-1611-6D
GUARD,FORK,Left Hand,BLACK
$36.51¢18 256
1
#55020A
55020-1612-6D
GUARD,FORK,Right Hand,BLACK
$36.51¢18 256
1
#92009
92009-1568
SCREW
$7.18¢3 588
1
#92015
92015-1653
NUT,STEERING STEM,22MM
$16.50¢8 250
1
#92015A
92015-1839
NUT
$21.46¢10 731
1
#92022
92022-1275
WASHER,FRONT FORK
$8.49¢4 244
1
#92022A
92022-1873
WASHER,STEERING STEM
$7.41¢3 706
1
#92028
92028-1656
BUSHING
$17.90¢8 950
1
#92049
92049-1394
SEAL OIL,FORK OUTER TUBE
$21.46¢10 731
1
#92055
92055-1123
RING-O
$6.09¢3 044
1
#92055A
92055-1156
RING O
$1.41¢706
1
#92055B
92055-1441
RING O,2.8X6.6X1.9
$4.31¢2 156
1
#92055C
92055-1502
RING O,FORK VALVE
$8.61¢4 306
1
#92093
92093-1426
SEAL,FORK OUTER TUBE
$25.10¢12 550
1
#92150
92150-1340
BOLT,6X14
$5.02¢2 512
1
#92150A
92150-1802
BOLT,5X16
$5.17¢2 588
1
#92151
92151-1877
BOLT-FLANGED-SMALL,8X40
$6.08¢3 038
1
#92151A
92151-1878
BOLT-FLANGED-SMALL,8X35
$4.72¢2 363
1
#92170
92170-1810
CLAMP
$9.41¢4 706
1
#92200
92200-1655
WASHER
$5.95¢2 975
1
