FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

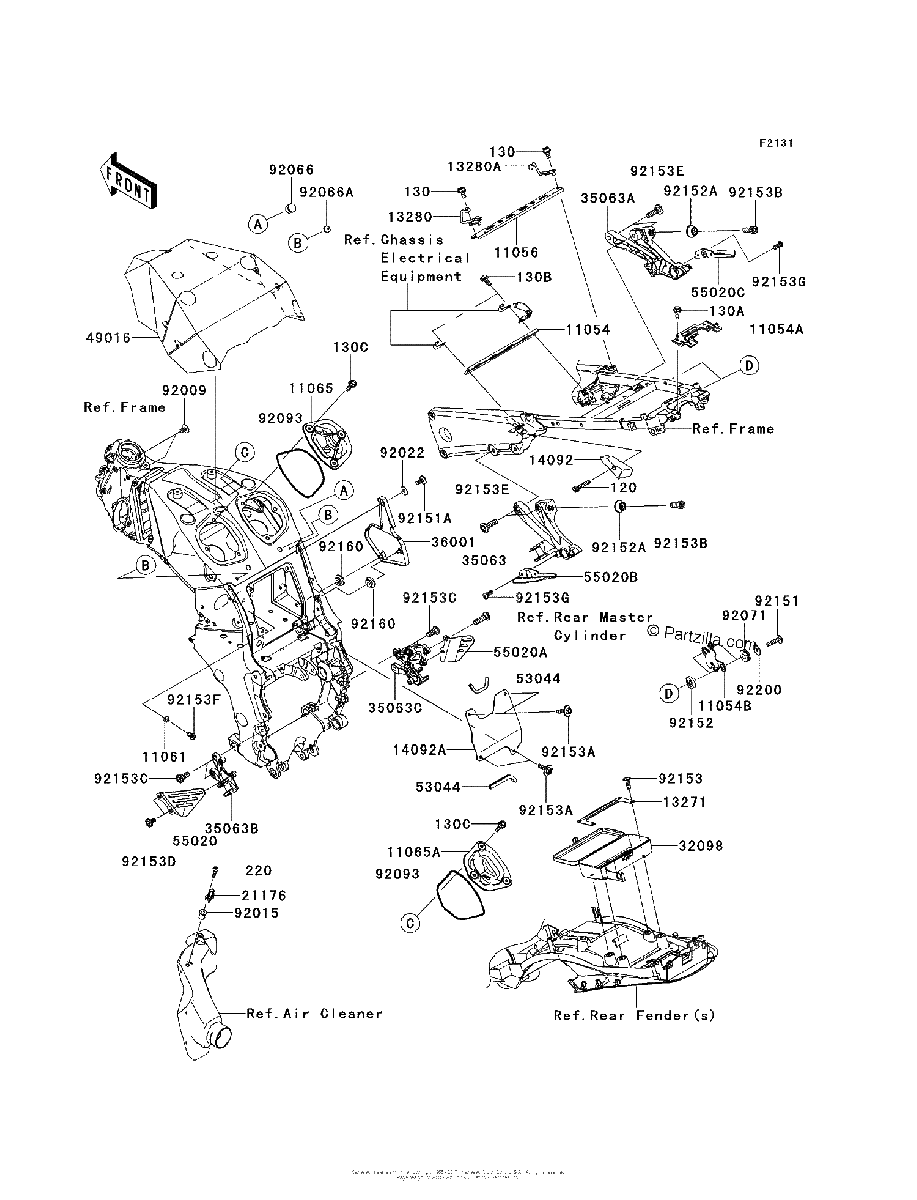

Diagrama de FRAME FITTINGS

Repuestos

#120
120CB0630
BOLT-SOCKET,6X30
$2.80¢1 400
1
#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130A
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#130B
130BA0618
BOLT-FLANGED,6X18
$1.52¢763
1
#130C
130BA0622
BOLT-FLANGED,6X22
$1.30¢650
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.65¢1 825
1
#11054
11054-0225
BRACKET,RR FENDER,FR
$28.01¢14 006
1
#11054B
11054-0718
BRACKET,REGULATOR
$18.65¢9 325
1
#11054A
11054-0694
BRACKET,REAR FENDERTAIL COVER
$26.29¢13 144
1
#11056
11056-2121
BRACKET,FUEL TANK,Rear
$56.76¢28 381
1
#11061
11061-0107
GASKET
$2.38¢1 188
1
#11065
11065-0223
CAP,AIR CLEANER,RH
$55.75¢27 875
1
#11065A
11065-0763
CAP,AIR CLEANER,Left Hand
$56.25¢28 125
1
#13271
13271-0779
PLATE,TOOL CASE
$13.38¢6 688
1
#13280
13280-0753
HOLDER,HELMET,LH
$34.49¢17 244
1
#13280A
13280-0754
HOLDER,HELMET,Right Hand
$34.49¢17 244
1
#14092
14092-0903-6Z
COVER,F BLACK
$13.27¢6 637
1
#14092A
14092-0981
COVER,BATTERY
$49.54¢24 769
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$28.36¢14 181
1
#32098
32098-0058
CASE TOOL
$36.45¢18 225
1
#35063
35063-0782-18R
STAY,Rear,Left Hand,F S BLACK
$200.96¢100 481
1
#35063A
35063-0783-18R
STAY,Rear,Right Hand,F S BLACK
$200.96¢100 481
1
#35063B
35063-0853-18R
STAY,Front,Left Hand,F S BLACK
$91.93¢45 963
1
#35063C
35063-0854-18R
STAY,Front,Right Hand,F S BLACK
$122.38¢61 188
1
#36001
36001-0080-18T
COVER SIDE,BATTERY,Right Hand,BLACK
$52.54¢26 269
1
#49016
49016-0578
COVER-SEAL,FRAME
$55.38¢27 688
1
#53044
53044-1200
TRIM,L=100
$8.61¢4 306
1
#55020B
55020-0866
GUARD,RR STEP,LH
$50.14¢25 069
1
#55020C
55020-0867
GUARD,Rear STEP,Right Hand
$50.14¢25 069
1
#55020A
55020-0212
GUARD,FRONT STEP,RH
$90.30¢45 150
1
#55020
55020-0211
GUARD,FRONT STEP,LH
$90.30¢45 150
1
#92009
92009-1661
SCREW,6X10
$4.29¢2 144
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1143
WASHER,6.5X16X1
$3.90¢1 950
1
#92066A
92066-1547
PLUG
$3.73¢1 863
1
#92066
92066-1081
PLUG
$8.54¢4 269
1
#92071
92071-1115
GROMMET
$5.40¢2 700
1
#92093
92093-1507
SEAL
$4.75¢2 375
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92151
92151-1611
BOLT,SOCKET,6X25
$2.19¢1 094
1
#92152A
92152-0668
COLLAR
$4.97¢2 488
1
#92152
92152-0470
COLLAR
$4.84¢2 419
1
#92153B
92153-1522
BOLT,SOCKET,10X23
$8.91¢4 456
1
#92153A
92153-1423
BOLT,6X16
$1.35¢675
1
#92153C
92153-1621
BOLT,SOCKET,8X20
$2.04¢1 019
1
#92153D
92153-1622
BOLT,6MM
$3.05¢1 525
1
#92153E
92153-1630
BOLT,SOCKET,8X30
$2.41¢1 206
1
#92153F
92153-1676
BOLT,FLANGED,6X14
$2.04¢1 019
1
#92153G
92153-1785
BOLT,SOCKET,6X16
$2.41¢1 206
1
#92153
92153-0478
BOLT,6X18
$2.36¢1 181
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92200
92200-0283
WASHER,6.5X20X1.6
$1.41¢706
1
