MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

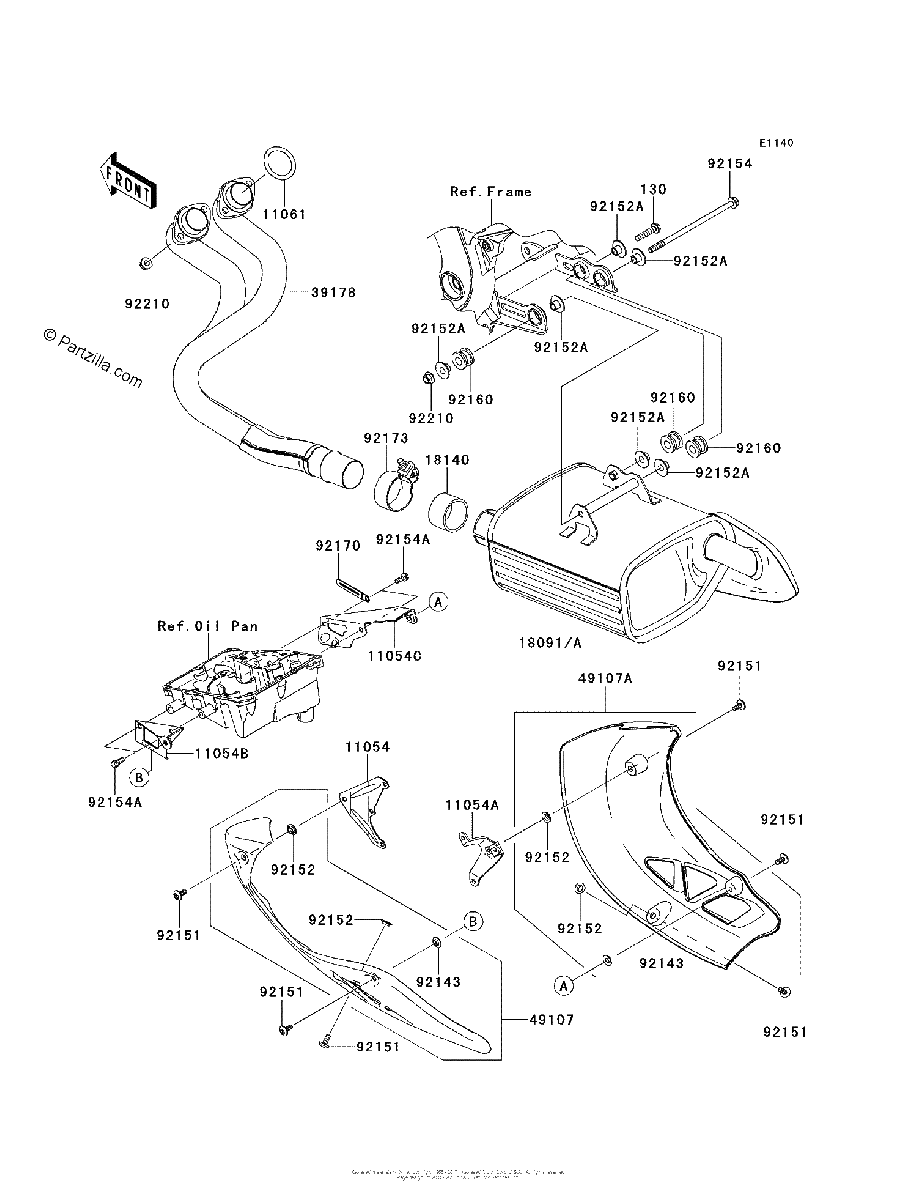

Diagrama de MUFFLER S

Repuestos

#130
130CD0835
BOLT-FLANGED,8X35
$2.66¢1 331
1
#11054
11054-0420
BRACKET,EX.COVER,UPP,LH
$10.97¢5 488
1
#11054A
11054-0421
BRACKET,EX COVER,Upper,Right Hand
$13.38¢6 688
1
#11054C
11054-0486
BRACKET,EX.COVER,LWR,RH
$45.13¢22 563
1
#11054B
11054-0485
BRACKET,EX COVER,Lower,Left Hand
$19.50¢9 750
1
#11061
11061-0278
GASKET,EXHAUST PIPE
$10.59¢5 294
1
#18091
18091-0773
BODY COMP MUFFLER
$1271.26¢635 631
1
#18091
18091-0845
BODY COMP MUFFLER
$1238.70¢619 350
1
#18091A
18091-0845
BODY COMP MUFFLER
$1238.70¢619 350
1
#18140
18140-0059
GASKET MUFFLER
$16.65¢8 325
1
#39178
39178-0062
MANIFOLD-COMP-EXHAUST
$731.21¢365 606
1
#49107A
49107-0082-6Z
COVER-EXHAUST PIPE,RH,F.BLACK
$106.76¢53 381
1
#49107
49107-0081-6Z
COVER-EXHAUST PIPE,LH,F.BLACK
$106.76¢53 381
1
#92143
92143-1087
COLLAR
$3.89¢1 944
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92152A
92152-1692
COLLAR
$9.65¢4 825
1
#92152
92152-0909
COLLAR,8.8X11.2X4
$5.56¢2 781
1
#92154A
92154-0777
BOLT,FLANGED,6X14
$2.56¢1 281
1
#92154
92154-0189
BOLT,FLANGED,8X165
$9.98¢4 988
1
#92160
92160-1116
DAMPER,MUFFLER MOUNT
$5.45¢2 725
1
#92170
92170-1514
CLAMP
$4.29¢2 144
1
#92173
92173-0110
CLAMP
$28.99¢14 494
1
#92210
92210-1114
NUT,8MM
$2.29¢1 144
1
