HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

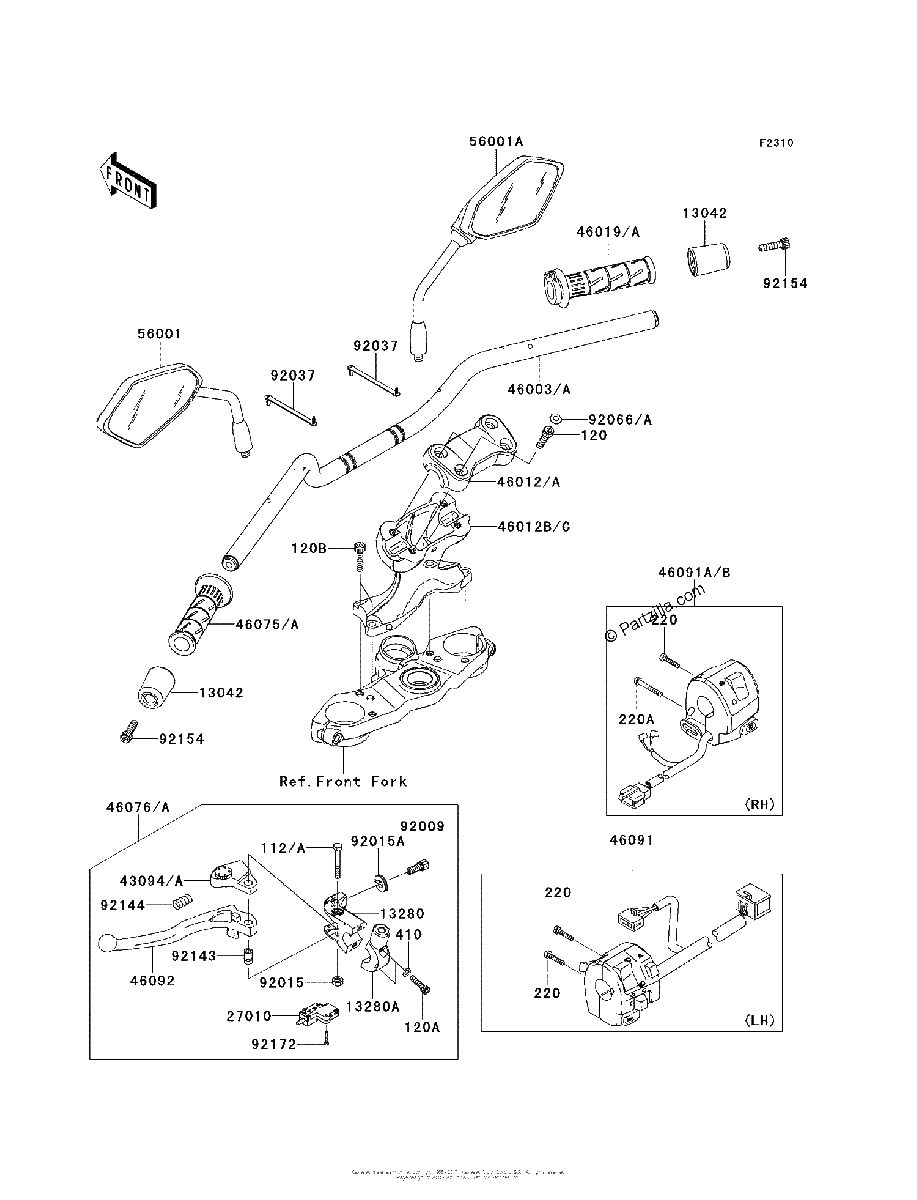

Diagrama de HANDLEBAR

Repuestos

#112
112AB0645
BOLT-UPSET,6X45
$3.54¢1 771
1
#112
112BB0645
BOLT-UPSET,6X45
$3.54¢1 771
1
#120
120CA0830
BOLT SOCKET,8X30
$2.37¢1 185
1
#120A
120CB0625
BOLT-SOCKET,6X25
$2.17¢1 087
1
#120B
120CC0830
BOLT-SOCKET,8X30
$3.38¢1 691
1
#220
220AB0525
SCREW PAN CROS,5X25
$3.19¢1 593
1
#220A
220AB0540
SCREW-PAN-CROS,5X40
$1.78¢891
1
#410
410AB0600
WASHER-PLAIN-SMALL,6MM
$0.82¢408
1
#13042
13042-5002
WEIGHT,HANDLE
$54.13¢27 065
1
#13280
13280-0306
HOLDER,CLUTCH LEVER
$56.23¢28 117
1
#13280A
13280-0307
HOLDER,CLUTCH LEVER
$38.17¢19 084
1
#27010
27010-1094
SWITCH,CLUTCH,BLACK
$29.95¢14 973
1
#43094
43094-0556
ADJUSTER,CLUTCH LEVER
$44.21¢22 103
1
#43094
43094-1053
ADJUSTER,CLUTCH LEVER
$40.31¢20 154
1
#43094A
43094-1053
ADJUSTER,CLUTCH LEVER
$40.31¢20 154
1
#46003
46003-0167-10T
HANDLE,F P SILVER
$155.50¢77 752
1
#46003
46003-0167-26M
HANDLE,F M GRAY
$155.50¢77 752
1
#46012
46012-0029-18R
HOLDER HANDLE,Upper,F S BLACK
$104.06¢52 032
1
#46012
46012-0029-458
HOLDER-HANDLE,UPP,P.SILVER
$105.58¢52 791
1
#46012B
46012-0030-458
HOLDER HANDLE,Lower,P SILVER
$217.69¢108 848
1
#46012B
46012-0030-18R
HOLDER HANDLE,Lower,F S BLACK
$214.23¢107 117
1
#46019
46019-0001
GRIP-ASSY,THROTTLE
$43.79¢21 896
1
#46019
46019-0060
GRIP Assembly,THROTTLE
$33.91¢16 957
1
#46075A
46075-1144
GRIP,HANDLE,Left Hand
$21.17¢10 586
1
#46075
46075-0564
GRIP,HANDLE,LH
$19.31¢9 654
1
#46075
46075-1144
GRIP,HANDLE,Left Hand
$21.17¢10 586
1
#46076
46076-0052
LEVER Assembly GRIP,CLUTCH
$127.85¢63 923
1
#46076
46076-0081
LEVER Assembly GRIP,CLUTCH
$129.44¢64 722
1
#46091A
46091-0246
HOUSING-ASSY-CONTROL,RH
$214.91¢107 456
1
#46091A
46091-0215
HOUSING Assembly CONTROL,Right Hand
$130.98¢65 492
1
#46091
46091-0214
HOUSING Assembly CONTROL,Left Hand
$160.25¢80 126
1
#46092
46092-0031
LEVER GRIP,CLUTCH
$24.90¢12 449
1
#56001A
56001-0195
MIRROR Assembly,Right Hand
$90.04¢45 022
1
#56001
56001-0194
MIRROR-ASSY,LH
$90.04¢45 022
1
#92009
92009-1134
SCREW,CABLE ADJUST,8MM,BLACK
$13.79¢6 894
1
#92015A
92015-1197
NUT,CABLE ADJUST LOCK,8MM,BLK
$9.04¢4 520
1
#92015
92015-1191
NUT,LOCK,6MM
No Disponible
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92066
92066-0735
PLUG
$4.06¢2 030
1
#92066
92066-1281
PLUG
$4.73¢2 363
1
#92143
92143-1379
COLLAR
$8.68¢4 341
1
#92144
92144-1467
SPRING
$5.85¢2 927
1
#92154
92154-0440
BOLT,SOCKET,8X30
$3.40¢1 702
1
#92172
92172-0183
SCREW,3X16
$1.87¢937
1
