CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

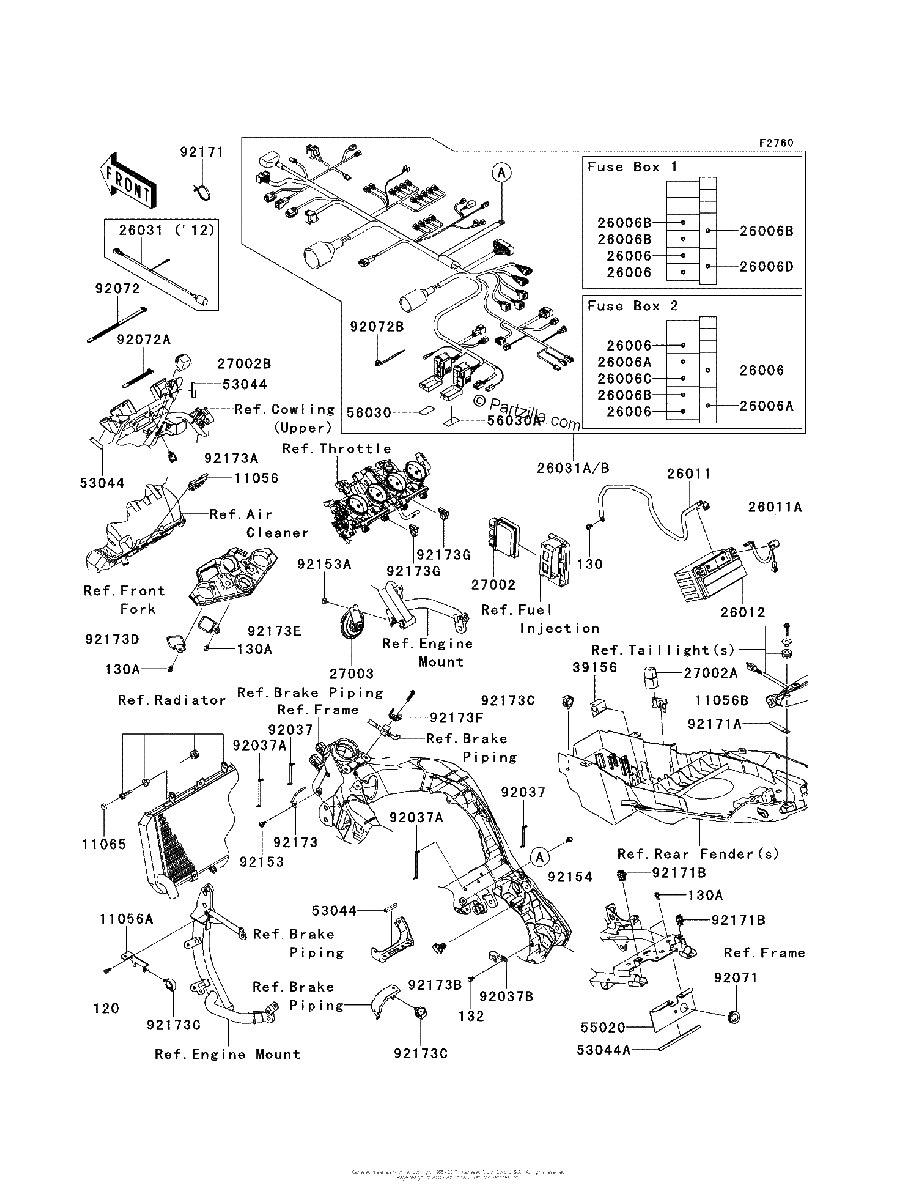

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.53¢765
1
#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.53¢765
1
#11056
11056-1132
BRACKET,AIR BOX
$8.21¢4 105
1
#11056A
11056-1478
BRACKET,ENGINE
$5.88¢2 938
1
#11056B
11056-1735
BRACKET,RELAY
$32.53¢16 267
1
#11065
11065-0752
CAP,BOLT
$2.08¢1 041
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
$6.15¢3 076
1
#26006C
26006-1077
FUSE,MINI BLADE,5A,TAN
$4.66¢2 329
1
#26011
26011-0737
WIRE LEAD,BATTERY( )
$56.38¢28 192
1
#26011A
26011-0758
WIRE LEAD,BATTERY(+)
$59.80¢29 900
1
#26012
26012-0088
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031
26031-1341
HARNESS,SUB
$57.03¢28 514
1
#26031A
26031-1433
HARNESS,MAIN
$1169.68¢584 838
1
#26031A
26031-1506
HARNESS,MAIN
$1169.68¢584 838
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27002A
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
1
#27003
27003-0066
HORN
$81.58¢40 790
1
#39156
39156-0812
PAD
$7.98¢3 991
1
#53044A
53044-0558
TRIM,GUARD
$2.76¢1 380
1
#53044
53044-0012
TRIM,L=40
$2.61¢1 305
1
#55020
55020-0857
GUARD,HARNESS
$16.70¢8 349
1
#56030A
56030-0738
LABEL,FUSE BOX 2
$4.40¢2 202
1
#56030
56030-0737
LABEL,FUSE BOX 1
$4.22¢2 110
1
#92037A
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92037B
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.83¢914
1
#92037
92037-1163
CLAMP,SPEED,L=58
$5.91¢2 956
1
#92071
92071-3704
GROMMET
$5.78¢2 892
1
#92072A
92072-1293
BAND,L=140
$6.30¢3 151
1
#92072B
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-1237
BAND,L=250
$1.85¢926
1
#92153A
92153-1948
BOLT,SOCKET,6X12
$1.64¢822
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.59¢793
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92171A
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92171B
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92171
92171-0226
CLAMP,CABLE
$8.49¢4 244
1
#92173
92173-0182
CLAMP
$8.03¢4 013
1
#92173A
92173-0229
CLAMP
$1.95¢977
1
#92173B
92173-0799
CLAMP,CLIP
$15.23¢7 613
1
#92173C
92173-0861
CLAMP
$2.53¢1 265
1
#92173D
92173-0874
CLAMP,UPP BRACKET,LH
$20.06¢10 028
1
#92173E
92173-0875
CLAMP,Upper BRACKET,Right Hand
$20.06¢10 028
1
#92173F
92173-0880
CLAMP
$17.97¢8 987
1
#92173G
92173-0970
CLAMP,SNAPPER
$4.51¢2 254
1
