COWLING CENTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

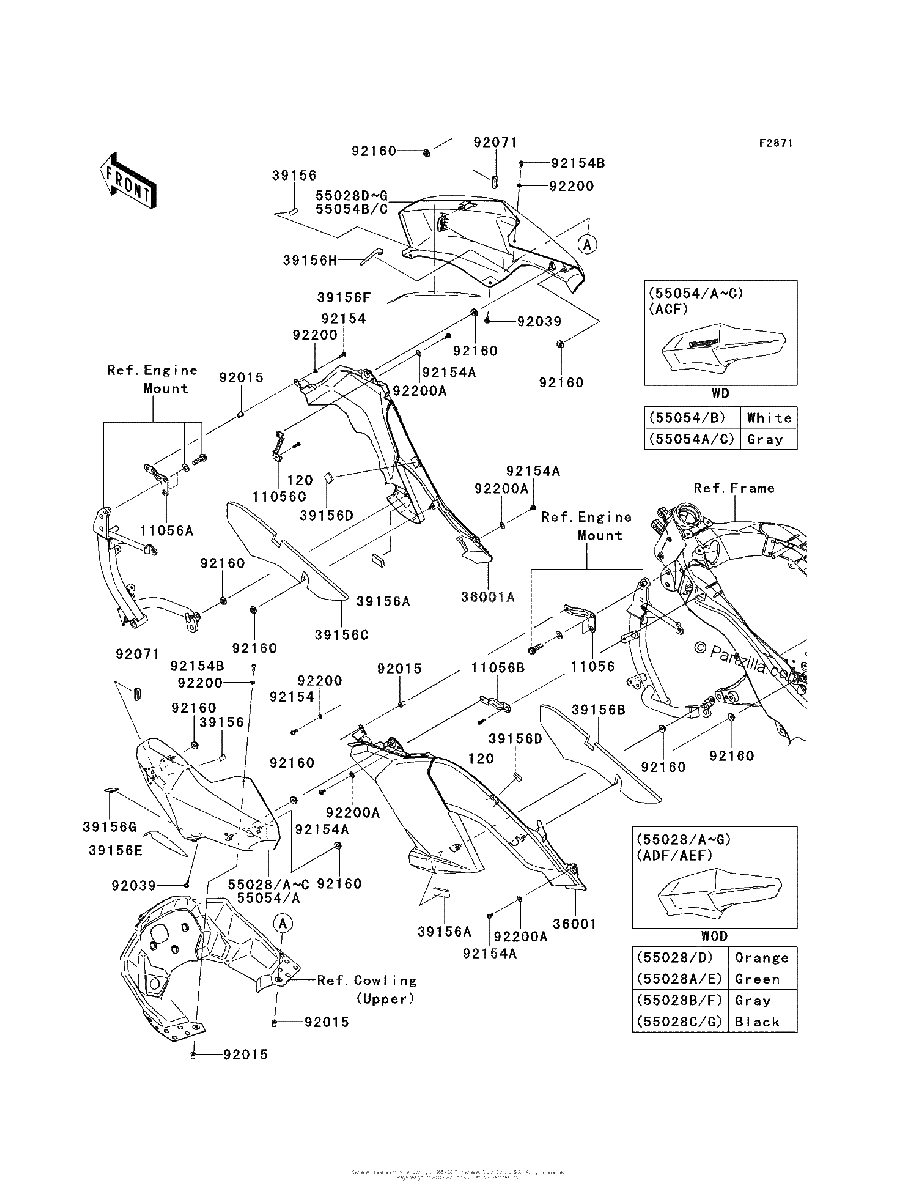

Diagrama de COWLING CENTER

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#11056
11056-1119
BRACKET,SIDE COVER,LH,FR
$6.21¢3 105
1
#11056A
11056-1120
BRACKET,SIDE COVER,Right Hand,Front
$6.21¢3 105
1
#11056B
11056-1121
BRACKET,SIDE COVER,LH,CNT
$8.51¢4 255
1
#11056C
11056-1122
BRACKET,SIDE COVER,RH,CNT
$8.43¢4 215
1
#36001
36001-0570-6Z
COVER SIDE,KNEE GRIP,Left Hand,F Black
$142.14¢71 070
1
#36001A
36001-0586-6Z
COVER SIDE,KNEE GRIP,Right Hand,F Black
$142.14¢71 070
1
#39156
39156-0721
PAD,10X25
$3.36¢1 679
1
#39156A
39156-0802
PAD,45X18,T8
$1.77¢886
1
#39156B
39156-0808
PAD,SIDE COVER,RH
$23.47¢11 736
1
#39156C
39156-0809
PAD,SIDE COVER,LH
$23.47¢11 736
1
#39156D
39156-0810
PAD,18X23,T5
$1.77¢886
1
#39156E
39156-0852
PAD,SIDE COWLING,Upper,Left Hand
$22.22¢11 109
1
#39156F
39156-0853
PAD,SIDE COWLING,UPP,RH
$22.22¢11 109
1
#39156G
39156-0854
PAD,SIDE COWLING,Lower,Left Hand
$11.85¢5 923
1
#39156H
39156-0855
PAD,SIDE COWLING,Lower,Right Hand
No Disponible
1
#55028
55028-0436-25X
COWLING,SIDE,Left Hand,M M GRAY
No Disponible
1
#55028D
55028-0437-660
COWLING,SIDE,Right Hand,M S BLACK
$361.47¢180 734
1
#55028D
55028-0437-25X
COWLING,SIDE,Right Hand,M M GRAY
$345.14¢172 569
1
#55028D
55028-0437-17P
COWLING,SIDE,Right Hand,C L GREEN
$361.47¢180 734
1
#55028D
55028-0437-17L
COWLING,SIDE,Right Hand,C B ORANGE
No Disponible
1
#55028
55028-0436-660
COWLING,SIDE,Left Hand,M S BLACK
$360.97¢180 487
1
#55028
55028-0436-17P
COWLING,SIDE,Left Hand,C L GREEN
$360.97¢180 487
1
#55028
55028-0436-17L
COWLING,SIDE,Left Hand,C B ORANGE
$344.67¢172 333
1
#55054B
55054-5424-27Y
COWLING-ASSY,SIDE,RH,M.M.GRAY
No Disponible
1
#55054C
55054-5424-27Y
COWLING-ASSY,SIDE,RH,M.M.GRAY
No Disponible
1
#55054B
55054-5424-25Y
COWLING Assembly,SIDE,Right Hand P S WHITE
$415.43¢207 713
1
#55054A
55054-5423-27Y
COWLING Assembly,SIDE,Left Hand,M M GRAY
$414.87¢207 437
1
#55054
55054-5423-27Y
COWLING Assembly,SIDE,Left Hand,M M GRAY
$414.87¢207 437
1
#55054
55054-5423-25Y
COWLING Assembly,SIDE,Left Hand,P S WHITE
$414.87¢207 437
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92071
92071-0013
GROMMET
$5.22¢2 610
1
#92154B
92154-0829
BOLT,SOCKET,5X20
$2.27¢1 133
1
#92154A
92154-0427
BOLT,SOCKET,5X14
$2.89¢1 443
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-2045
WASHER,8.5X17X0.8
$1.30¢650
1
