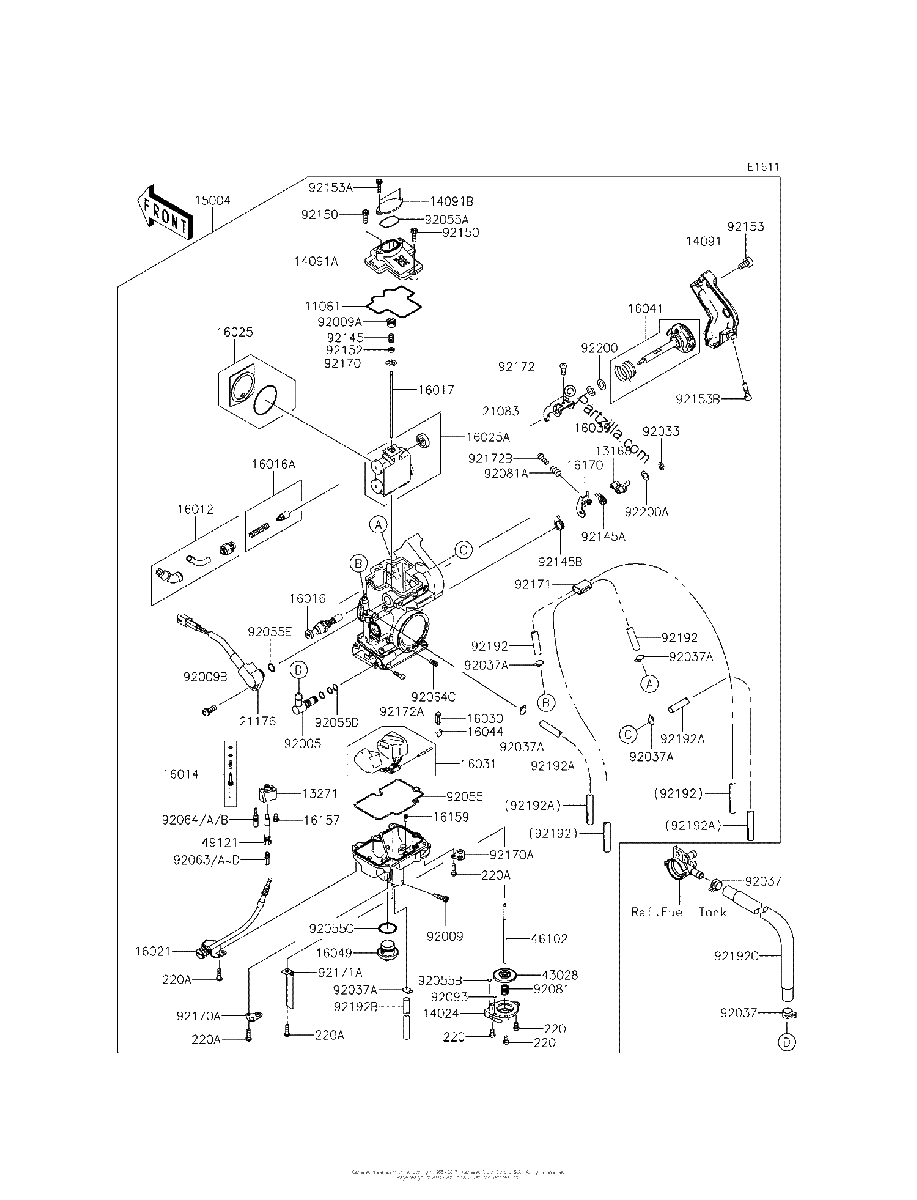

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#220
SCREW-PAN-CROS,4X8
$0.75¢374
#220A
SCREW-PAN-CROS,4X14 | [CN,US]
$4.20¢2 099
#11061
GASKET
$12.05¢6 026
#13168
LEVER
$23.25¢11 626
#13271
PLATE
$16.87¢8 435
#14024
COVER
$60.86¢30 429
#14091
COVER
$57.01¢28 503
#14091B
COVER
$10.29¢5 146
#14091A
COVER,TOP
$32.38¢16 192
#15004
CARBURETOR-ASSY,FCR-MX40
$1258.53¢629 263
#15004
CARBURETOR-ASSY,FCR-MX40
No Disponible
#16012
CAP-STARTER PLUNGER
$20.84¢10 419
#16014
SCREW-PILOT AIR
$17.96¢8 981
#16016A
PLUNGER
$15.20¢7 602
#16016
PLUNGER
$46.20¢23 098
#16017
JET-NEEDLE,NCVU
$52.88¢26 438
#16021
SCREW-THROTTLE STOP
$48.76¢24 380
#16025A
VALVE-THROTTLE
$350.92¢175 461
#16025
VALVE-THROTTLE
$76.98¢38 491
#16030
VALVE-FLOAT | [CN,US]
$49.37¢24 685
#16031
FLOAT
$63.84¢31 918
#16039
WASHER
$1.92¢960
#16041
SHAFT-CARBURETOR
$188.27¢94 133
#16044
CLAMP,FLOAT VALVE | [CN,US]
$7.24¢3 622
#16049
COVER-MAIN JET
$37.26¢18 630
#16157
JET-STARTER,#55
$23.13¢11 563
#16159
JET-POWER,#50
$14.97¢7 486
#16170
LINK-ASSY
$16.72¢8 360
#21083
ARM
$46.97¢23 483
#21176
SENSOR,THROTTLE
$105.20¢52 601
#43028
DIAPHRAGM
$22.29¢11 143
#46102
ROD
$25.46¢12 731
#49121
NOZZLE-MAIN
$41.87¢20 936
#92005
FITTING
$24.23¢12 115
#92009B
SCREW,THROTTLE SENSOR
$2.07¢1 035
#92009A
SCREW
$11.78¢5 888
#92009
SCREW,DRAIN,6X0.75
$9.04¢4 520
#92033
RING-SNAP
$2.45¢1 225
#92037A
CLAMP,TUBE
$5.01¢2 507
#92037
CLAMP,HOSE CLIP
$2.77¢1 386
#92055D
RING-O
$4.54¢2 271
#92055E
RING O
$3.54¢1 771
#92055C
RING O,MAIN JET COVER
$8.68¢4 341
#92055B
RING-O
$3.94¢1 972
#92055A
RING-O
$1.95¢977
#92055
RING-O,FLOAT CHAMBER
$16.53¢8 263
#92063D
JET MAIN,#150
$14.42¢7 210
#92063
JET MAIN,#150
$14.42¢7 210
#92063
JET MAIN,#148
$14.42¢7 210
#92063C
JET MAIN,#148
$14.42¢7 210
#92063
JET MAIN,#145
$14.42¢7 210
#92063B
JET MAIN,#145
$14.42¢7 210
#92063A
JET MAIN,#142
$14.42¢7 210
#92063
JET MAIN,#142
$14.42¢7 210
#92063
JET MAIN,#140
$15.50¢7 751
#92064C
JET-PILOT,#100
$15.24¢7 619
#92064B
JET PILOT,#48
$17.19¢8 596
#92064A
JET PILOT,#45
$15.39¢7 694
#92064
JET PILOT,#42
$15.39¢7 694
#92064
JET PILOT,#45
$15.39¢7 694
#92064
JET PILOT,#48
$17.19¢8 596
#92081A
SPRING
$4.53¢2 266
#92081
SPRING,DIAPHRAGM
$11.97¢5 986
#92093
SEAL,U RING
$5.85¢2 927
#92145A
SPRING
$17.40¢8 700
#92145
SPRING
$17.40¢8 700
#92145B
SPRING
$17.40¢8 700
#92150
BOLT,SOCKET,4X12
$5.60¢2 800
#92152
COLLAR
$9.92¢4 962
#92153
BOLT
$5.29¢2 645
#92153B
BOLT
$13.95¢6 975
#92153A
BOLT
$3.78¢1 892
#92153B
BOLT
$3.78¢1 892
#92153A
BOLT
$13.95¢6 975
#92170
CLAMP,JET NEEDLE
$3.83¢1 915
#92170A
CLAMP
$3.83¢1 915
#92171
CLAMP
$5.88¢2 938
#92171A
CLAMP
$9.11¢4 554
#92172B
SCREW
$5.29¢2 645
#92172A
SCREW
$5.29¢2 645
#92172
SCREW
$5.29¢2 645
#92192C
TUBE,7X14X300
$51.29¢25 645
#92192B
TUBE
$8.05¢4 025
#92192A
TUBE
$8.05¢4 025
#92192
TUBE
$8.05¢4 025
#92200
WASHER
$2.50¢1 248
#92200A
WASHER,LINK ARM,STAINLESS
$2.15¢1 075
