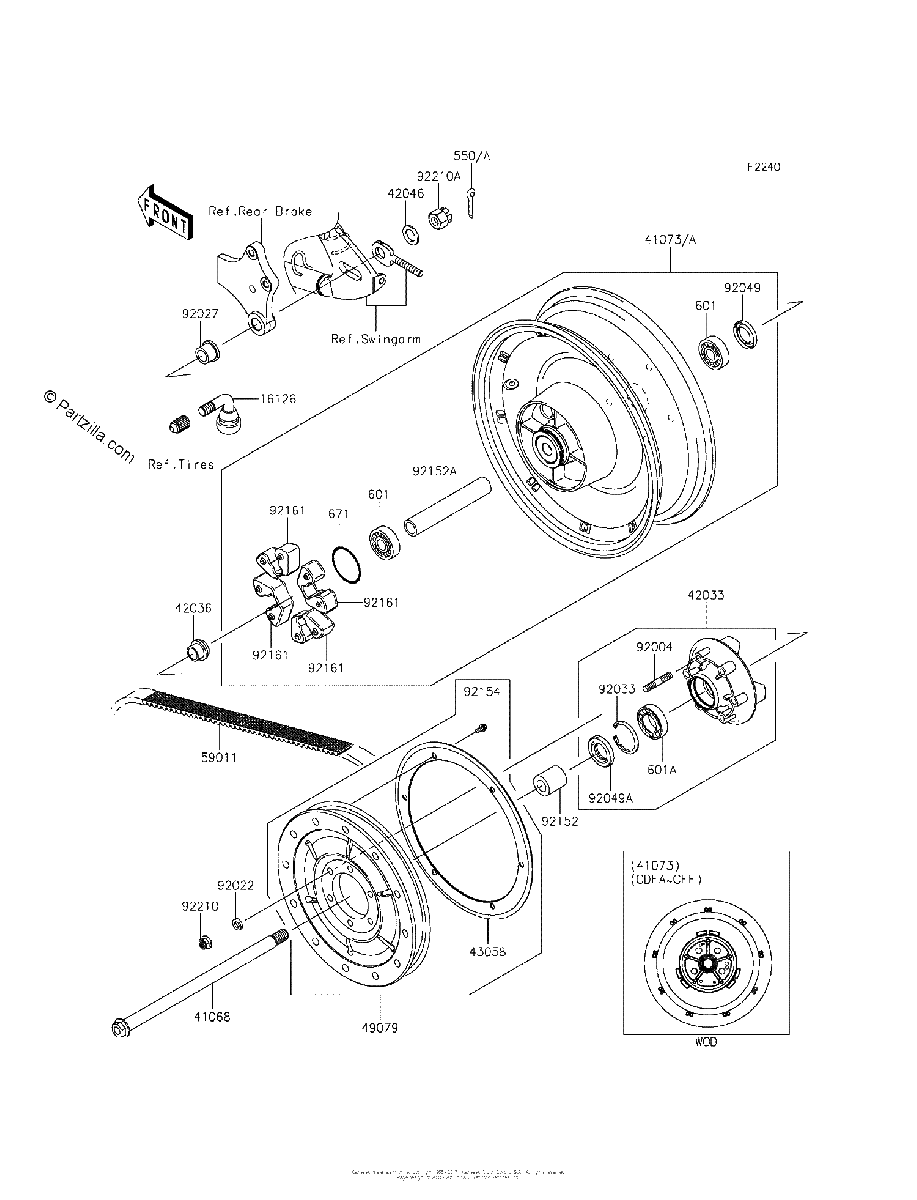

REAR WHEEL CHAIN
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#550
PIN-COTTER,4.0X40
$1.26¢633
#550
PIN COTTER,4.0X35
$1.87¢937
#601A
BEARING-BALL
$31.03¢15 513
#601
BEARING-BALL,6204UUC3
$31.39¢15 698
#671
O RING,60MM
$6.15¢3 076
#16126
VALVE,TIRE
$19.33¢9 666
#41068
AXLE,RR,20X362.5
$92.71¢46 357
#41073A
WHEEL Assembly,Rear,P SILVER
$1223.73¢611 863
#41073
WHEEL Assembly,Rear,P SILVER
$1223.73¢611 863
#41073
WHEEL Assembly,Rear,G BLACK
$1192.27¢596 137
#42033
COUPLING Assembly,Rear HUB
$194.40¢97 198
#42036
SLEEVE,Rear HUB,L=23
$25.45¢12 725
#42046
WASHER,21X33X2.6
$4.14¢2 070
#43058
RING,REAR PULLEY
$51.29¢25 645
#49079
PULLEY-BELT
$869.96¢434 982
#59011
BELT,DRIVE,153T
$513.97¢256 985
#92004
STUD,10X35
$6.69¢3 347
#92022
WASHER,10.5X19X3.2
$4.14¢2 070
#92027
COLLAR,Rear AXLE,L=21.5
$25.55¢12 776
#92033
RING SNAP,52MM
$7.37¢3 686
#92049A
SEAL OIL
$11.93¢5 963
#92049
SEAL OIL,BJN28475
$11.93¢5 963
#92152A
COLLAR,REAR BRAKE DRUM,L=166.4
$23.22¢11 609
#92152
COLLAR,Rear AXLE,Left Hand,L=38.6
$33.94¢16 968
#92154
BOLT,FLANGED,6X12
$1.84¢920
#92161
DAMPER,SHOCK,RR HUB
$31.52¢15 761
#92210
NUT,LOCK,FLANGED,10MM
$2.22¢1 110
#92210A
NUT,CASTLE,18MM
$8.07¢4 036
