COWLING LOWERS EDS EFF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

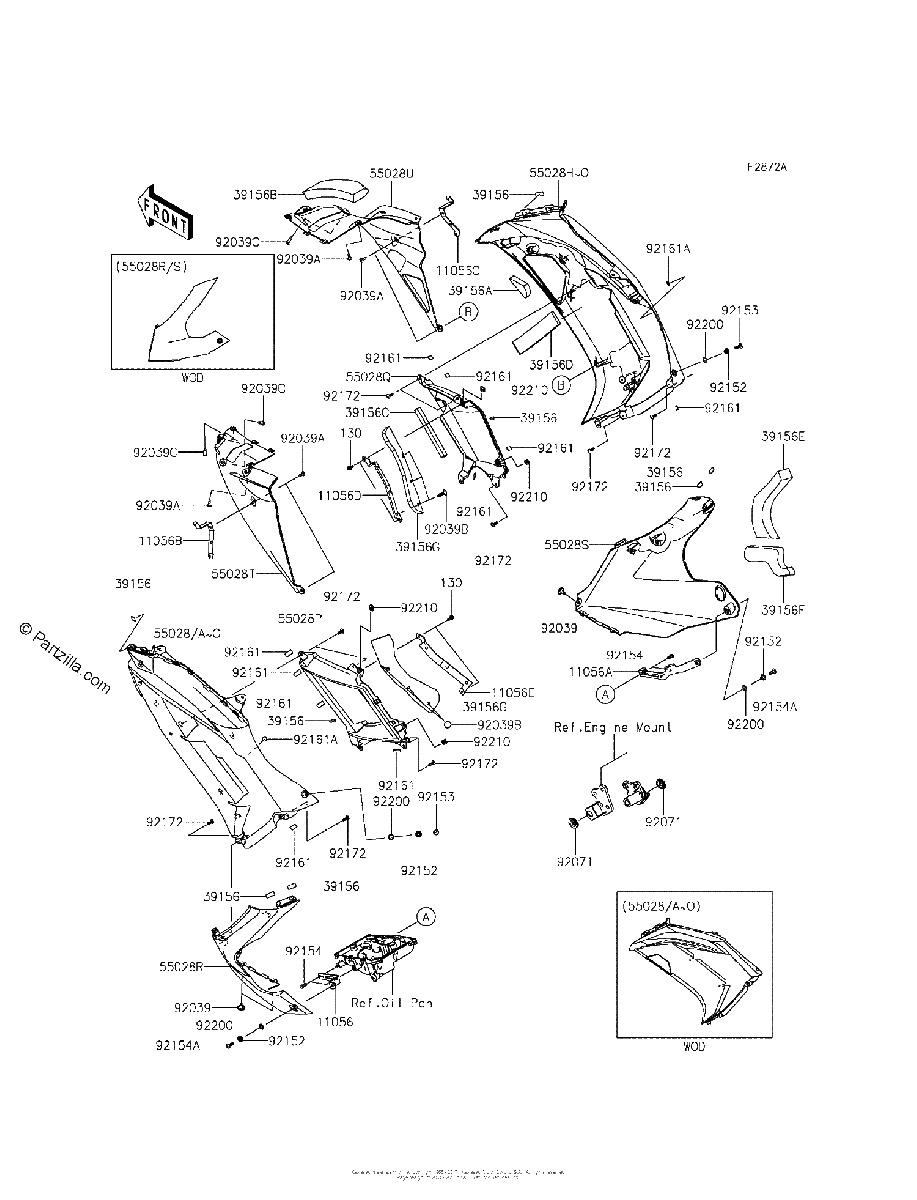

Diagrama de COWLING LOWERS EDS EFF

Repuestos

#130
130BA0512
BOLT-FLANGED,5X12
$1.85¢926
1
#11056
11056-0994
BRACKET,Lower,Left Hand
$7.96¢3 979
1
#11056A
11056-0995
BRACKET,LWR,RH
$14.33¢7 165
1
#11056B
11056-1214
BRACKET,Front COWLING,Left Hand
$4.38¢2 191
1
#11056C
11056-1215
BRACKET,Front COWLING,Right Hand
$4.38¢2 191
1
#11056D
11056-1216
BRACKET,PAD,RH
$8.16¢4 082
1
#11056E
11056-1545
BRACKET,PAD,LH
$8.16¢4 082
1
#39156F
39156-0861
PAD
$13.71¢6 854
1
#39156
39156-0721
PAD,10X25
$3.36¢1 679
1
#39156A
39156-0796
PAD
$2.33¢1 167
1
#39156B
39156-0797
PAD
$8.67¢4 336
1
#39156C
39156-0798
PAD,152X20X10
$1.77¢886
1
#39156D
39156-0799
PAD,166X40X10
$2.86¢1 432
1
#39156E
39156-0860
PAD
$23.18¢11 592
1
#39156G
39156-0871
PAD
$14.24¢7 119
1
#55028H
55028-0371-35P
COWLING,SIDE,RH,C.L.GREEN
$448.47¢224 233
1
#55028L
55028-0371-35P
COWLING,SIDE,RH,C.L.GREEN
$448.47¢224 233
1
#55028H
55028-0371-40X
COWLING,SIDE,RH,P.F.S.WHITE
$452.38¢226 188
1
#55028H
55028-0371-51P
COWLING,SIDE,RH,C.L.GREEN
$453.00¢226 498
1
#55028H
55028-0371-660
COWLING,SIDE,Right Hand,M S BLACK
$452.38¢226 188
1
#55028P
55028-0372-739
COWLING,FIN,LH,M.F.S.BLACK
$125.59¢62 796
1
#55028Q
55028-0373-739
COWLING,FIN,Right Hand,M F S BLACK
$125.59¢62 796
1
#55028R
55028-0374-739
COWLING,Lower,Left Hand,M F S BLACK
$265.91¢132 957
1
#55028S
55028-0375-739
COWLING,Lower,Right Hand,M F S BLACK
$265.91¢132 957
1
#55028T
55028-0376
COWLING,Front,Left Hand
$63.47¢31 734
1
#55028U
55028-0377
COWLING,Front,Right Hand
$61.02¢30 510
1
#55028H
55028-0371-25X
COWLING,SIDE,RH,M.M.GRAY
$453.00¢226 498
1
#55028H
55028-0371-25Y
COWLING,SIDE,Right Hand,P S WHITE
$453.00¢226 498
1
#55028J
55028-0371-25X
COWLING,SIDE,RH,M.M.GRAY
$453.00¢226 498
1
#55028H
55028-0371-235
COWLING,SIDE,RH,C.T.BLUE
$453.00¢226 498
1
#55028
55028-0370-15T
COWLING,SIDE,Left Hand,C B ORANGE
$453.00¢226 498
1
#55028
55028-0370-235
COWLING,SIDE,Left Hand,C T BLUE
$453.00¢226 498
1
#55028B
55028-0370-25X
COWLING,SIDE,LH,M.M.GRAY
$453.00¢226 498
1
#55028
55028-0370-25X
COWLING,SIDE,LH,M.M.GRAY
$453.00¢226 498
1
#55028
55028-0370-25Y
COWLING,SIDE,Left Hand,P S WHITE
$453.00¢226 498
1
#55028D
55028-0370-35P
COWLING,SIDE,Left Hand,C L GREEN
$453.00¢226 498
1
#55028
55028-0370-35P
COWLING,SIDE,Left Hand,C L GREEN
$453.00¢226 498
1
#55028
55028-0370-40X
COWLING,SIDE,Left Hand,P F S WHITE
$452.38¢226 188
1
#55028
55028-0370-51P
COWLING,SIDE,LH,C.L.GREEN
$453.00¢226 498
1
#55028
55028-0370-660
COWLING,SIDE,Left Hand,M S BLACK
$452.38¢226 188
1
#55028H
55028-0371-15T
COWLING,SIDE,RH,C.B.ORANGE
$453.00¢226 498
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92039A
92039-0068
RIVET
$2.51¢1 254
1
#92039B
92039-0090
RIVET
$3.22¢1 610
1
#92039C
92039-1283
RIVET
$2.37¢1 185
1
#92071
92071-0710
GROMMET
$1.77¢886
1
#92152
92152-1359
COLLAR
$7.00¢3 502
1
#92153
92153-0478
BOLT,6X18
$2.17¢1 087
1
#92154
92154-0777
BOLT,FLANGED,6X14
$2.36¢1 179
1
#92154A
92154-0996
BOLT,FLANGED,BUTTON,6X18
$1.94¢972
1
#92161
92161-1447
DAMPER,10X20X1
$0.91¢454
1
#92161A
92161-1448
DAMPER,12X3
$2.36¢1 179
1
#92172
92172-0742
SCREW,TAPPING,5X16
$1.71¢857
1
#92200
92200-0157
WASHER,10.4X15.9X0.5
$1.87¢937
1
#92210
92210-0571
NUT
$3.22¢1 610
1
