FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

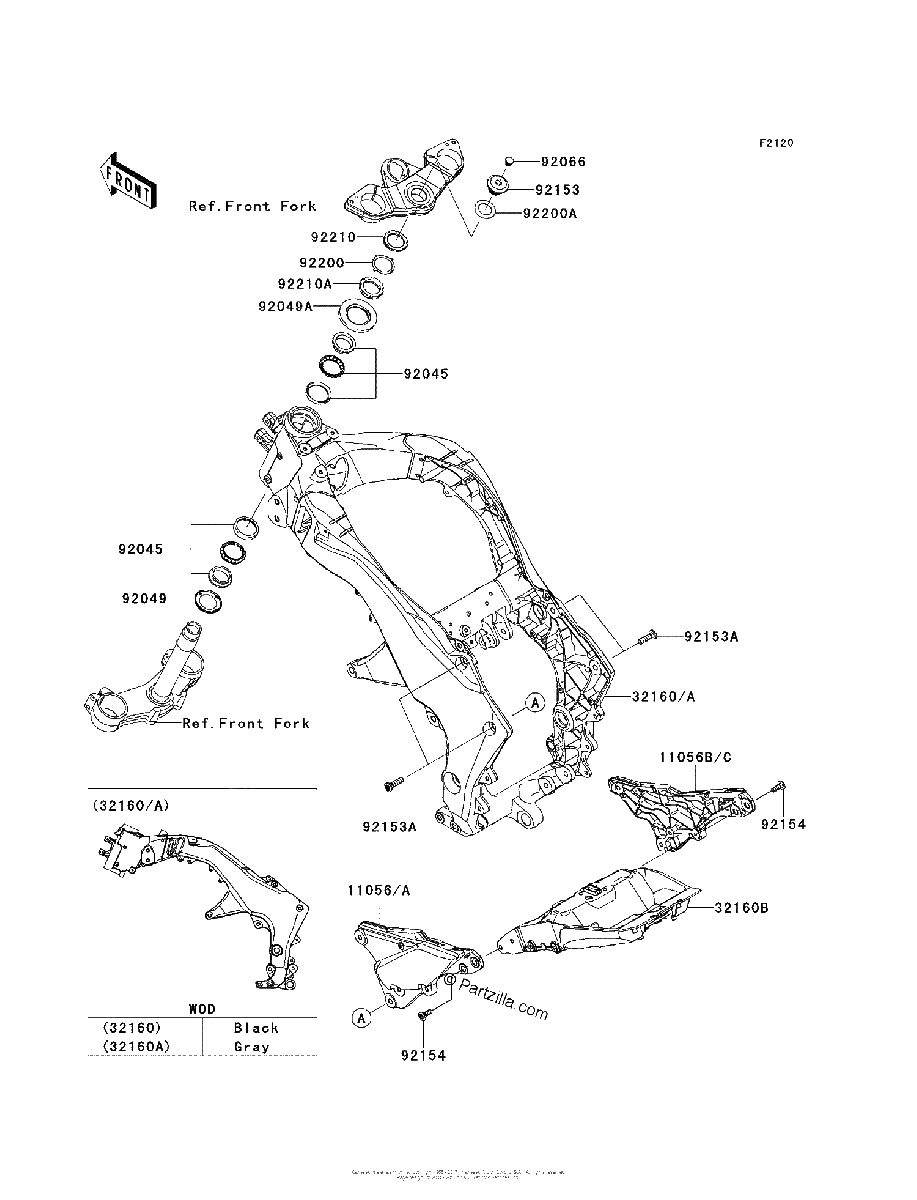

Diagrama de FRAME

Repuestos

#11056
11056-0572-18R
BRACKET,Rear,Left Hand,F S BLACK
No Disponible
1
#11056
11056-0572-26M
BRACKET,RR,LH,F.M.GRAY
$410.30¢205 150
1
#11056A
11056-0572-26M
BRACKET,RR,LH,F.M.GRAY
$410.30¢205 150
1
#11056C
11056-0573-26M
BRACKET,Rear,Right Hand,F M GRAY
$410.30¢205 150
1
#11056B
11056-0573-26M
BRACKET,Rear,Right Hand,F M GRAY
$410.30¢205 150
1
#11056B
11056-0573-18R
BRACKET,Rear,Right Hand,F S BLACK
$398.76¢199 381
1
#32160
32160-0538-26M
FRAME-COMP,MAIN,F.M.GRAY
$2583.06¢1 291 531
1
#32160
32160-0538-18R
FRAME COMP,MAIN,F S BLACK
$2631.10¢1 315 550
1
#32160B
32160-0635
FRAME COMP,Rear
$943.86¢471 931
1
#32160A
32160-0538-26M
FRAME-COMP,MAIN,F.M.GRAY
$2583.06¢1 291 531
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$52.01¢26 006
1
#92049A
92049-1382
SEAL OIL,XMH 43 75 6.4J
$25.80¢12 900
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$17.09¢8 544
1
#92066
92066-0071
PLUG
$3.01¢1 506
1
#92153A
92153-1442
BOLT,SOCKET,10X35
$8.38¢4 188
1
#92153
92153-0474
BOLT,26MM
$34.56¢17 281
1
#92154
92154-0379
BOLT,SOCKET,8X23
$3.69¢1 844
1
#92200A
92200-0081
WASHER,27X42X2.3
$3.70¢1 850
1
#92200
92200-0036
WASHER
$4.96¢2 481
1
#92210
92210-0062
NUT,STEERING STEM 35MM
$14.70¢7 350
1
#92210A
92210-0077
NUT,STEERING STEM,35MM
$20.13¢10 063
1
