HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

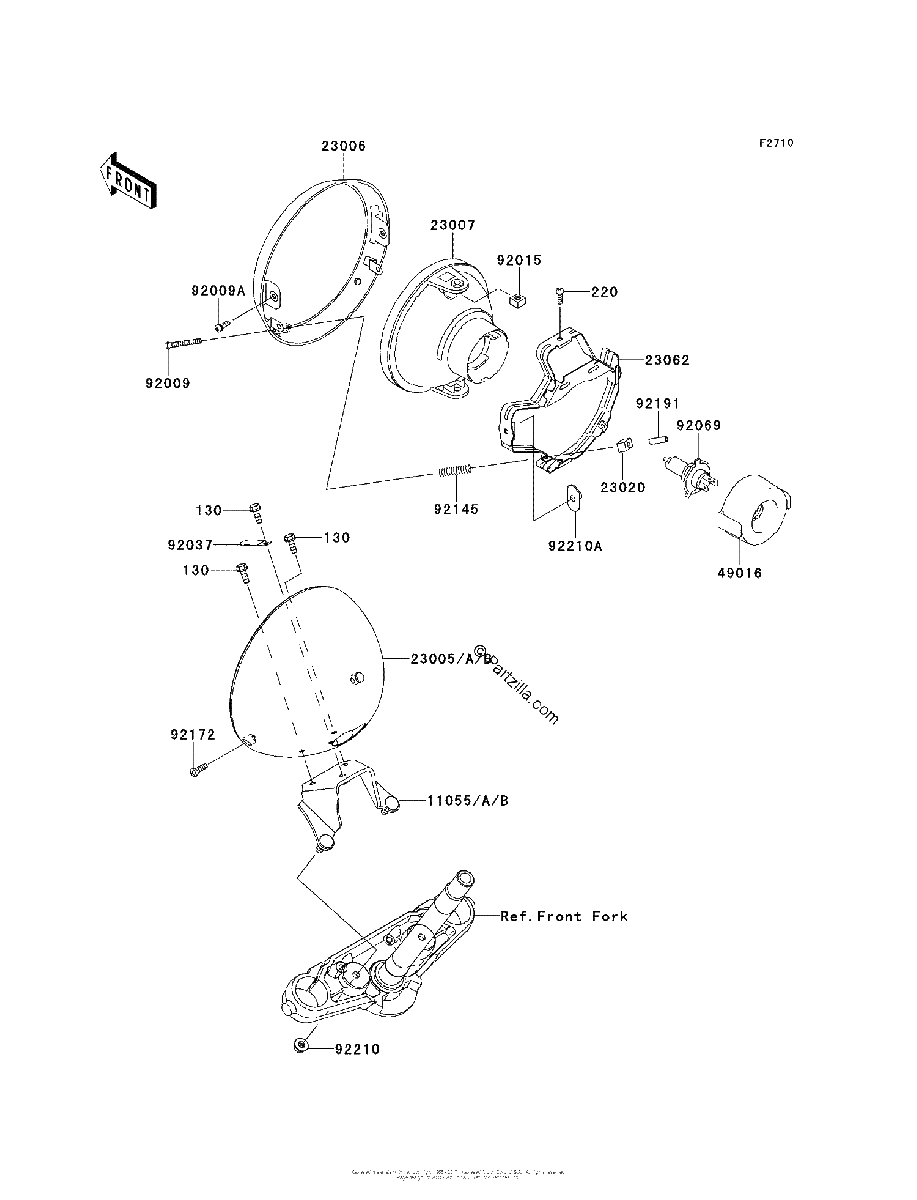

Diagrama de HEADLIGHT S

Repuestos

#130
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#220
220AA0516
SCREW PAN CROS,5X16
$1.78¢891
1
#11055
11055-1167
BRACKET,HEAD LAMP,SILVER
No Disponible
1
#11055
11055-1167-CE
BRACKET,HEAD LAMP,SILVER
$78.69¢39 347
1
#11055
11055-1167-18R
BRACKET,HEAD LAMP,F S BLACK
$78.69¢39 347
1
#11055B
11055-1167-18R
BRACKET,HEAD LAMP,F S BLACK
$78.69¢39 347
1
#23005
23005-0014
BODY COMP HEAD LAMP
No Disponible
1
#23005
23005-0303-21
BODY COMP HEAD LAMP,F BLACK
$139.97¢69 983
1
#23005
23005-0304
BODY COMP HEAD LAMP
$316.41¢158 205
1
#23005A
23005-0303-21
BODY COMP HEAD LAMP,F BLACK
$139.97¢69 983
1
#23006
23006-1081
RIM LAMP
$88.98¢44 488
1
#23007
23007-1396
LENS COMP,HEAD LAMP
$154.30¢77 148
1
#23020
23020-018
NUT,4MM,FOCUS ADJUST
$4.24¢2 122
1
#23062
23062-1132
BRACKET COMP,HEAD LAMP
$55.71¢27 853
1
#49016
49016-1203
COVER-SEAL,SOCKET
$12.50¢6 250
1
#92009A
92009-1879
SCREW,5X16
$1.03¢518
1
#92009
92009-1816
SCREW,FOCUS ADJUST,4X60
$5.57¢2 783
1
#92015
92015-1157
NUT,5MM
$4.66¢2 329
1
#92037
92037-1539
CLAMP,L=45
$4.76¢2 380
1
#92069
92069-1002
BULB,12V 60/55W,H4
No Disponible
1
#92145
92145-1268
SPRING,HEAD LAMP LENS
$4.73¢2 363
1
#92172
92172-0145
SCREW,5X14
$1.84¢920
1
#92191
92191-1217
TUBE,3.5X5.5X19
$2.17¢1 087
1
#92210
92210-0004
NUT,FLANGED,8MM
$4.88¢2 438
1
#92210A
92210-1060
NUT,SPECIAL,5MM
$2.18¢1 092
1
