REAR FENDER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

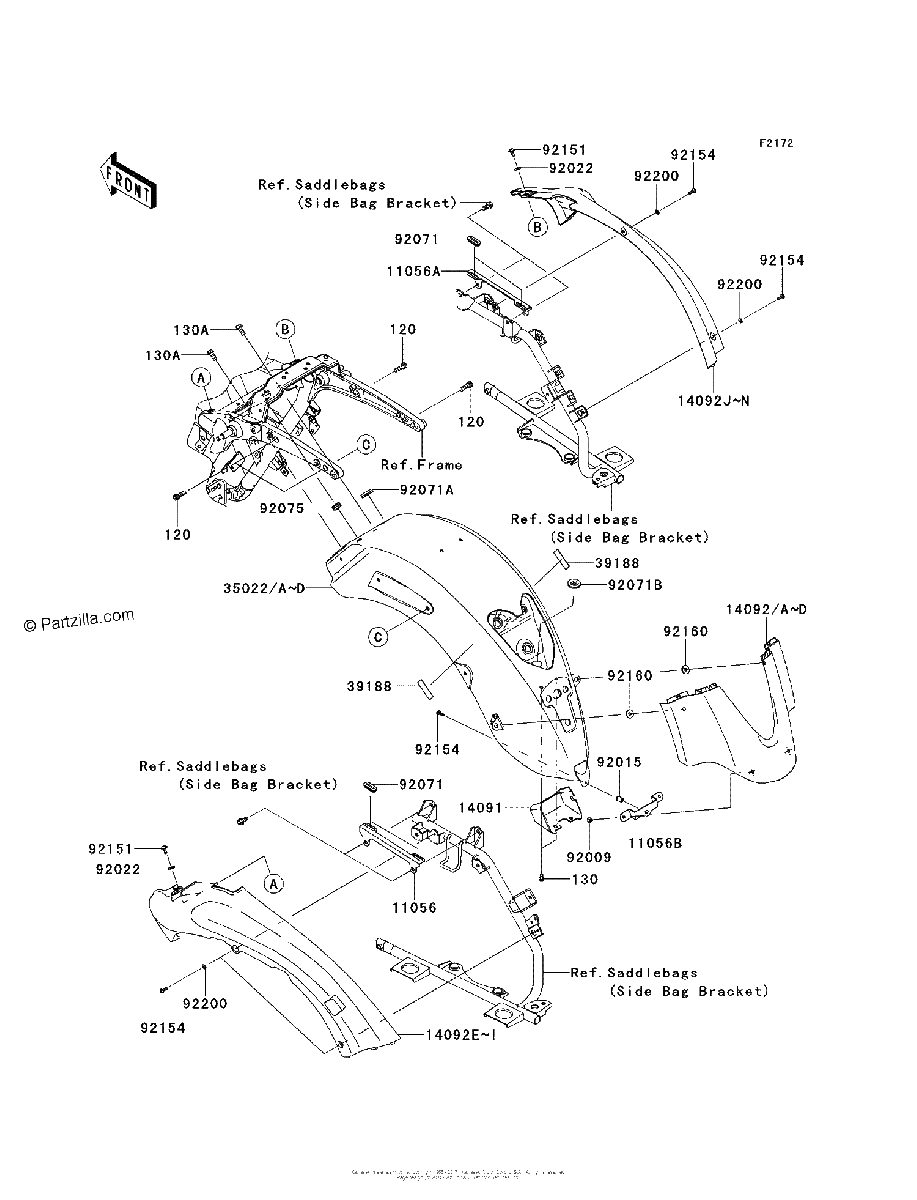

Diagrama de REAR FENDER S

Repuestos

#120
120CA0825
BOLT-SOCKET,8X25
$1.78¢891
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130A
130BA0816
BOLT FLANGED,8X16
$1.07¢535
1
#11056
11056-0390
BRACKET,Left Hand
$12.37¢6 187
1
#11056A
11056-0391
BRACKET,Right Hand
$12.37¢6 187
1
#11056B
11056-1087
BRACKET
$9.60¢4 801
1
#14091
14091-1630
COVER,HARNESS CONNECTOR
$10.37¢5 187
1
#14092J
14092-0801-816
COVER,STRUT,Right Hand,C F RED
$130.06¢65 032
1
#14092J
14092-0801-H8
COVER,STRUT,Right Hand,EBONY
$130.06¢65 032
1
#14092J
14092-0801-723
COVER,STRUT,Right Hand,C P BLUE
$130.06¢65 032
1
#14092M
14092-0801-723
COVER,STRUT,Right Hand,C P BLUE
$130.06¢65 032
1
#14092J
14092-0801-660
COVER,STRUT,Right Hand,M S BLACK
$113.92¢56 960
1
#14092C
14092-0797-723
COVER,C P BLUE
$190.24¢95 122
1
#14092
14092-0797-17P
COVER,C L GREEN
$190.24¢95 122
1
#14092A
14092-0797-17P
COVER,C L GREEN
$190.24¢95 122
1
#14092
14092-0797-660
COVER,M S BLACK
$177.97¢88 987
1
#14092
14092-0797-723
COVER,C P BLUE
$190.24¢95 122
1
#14092
14092-0797-816
COVER,C F RED
$190.24¢95 122
1
#14092K
14092-0801-17P
COVER,STRUT,Right Hand,C L GREEN
$130.06¢65 032
1
#14092
14092-0797-H8
COVER,EBONY
$190.24¢95 122
1
#14092F
14092-0800-17P
COVER,STRUT,Left Hand,C L GREEN
$130.06¢65 032
1
#14092E
14092-0800-17P
COVER,STRUT,Left Hand,C L GREEN
$130.06¢65 032
1
#14092E
14092-0800-660
COVER,STRUT,Left Hand,M S BLACK
$113.92¢56 960
1
#14092E
14092-0800-723
COVER,STRUT,Left Hand,C P BLUE
$130.06¢65 032
1
#14092H
14092-0800-723
COVER,STRUT,Left Hand,C P BLUE
$130.06¢65 032
1
#14092E
14092-0800-816
COVER,STRUT,Left Hand,C F RED
$130.06¢65 032
1
#14092E
14092-0800-H8
COVER,STRUT,Left Hand,EBONY
$130.06¢65 032
1
#14092J
14092-0801-17P
COVER,STRUT,Right Hand,C L GREEN
$130.06¢65 032
1
#35022
35022-0083-17P
FENDER COMP REAR,C L GREEN
$1237.04¢618 522
1
#35022A
35022-0083-17P
FENDER COMP REAR,C L GREEN
$1237.04¢618 522
1
#35022
35022-0083-660
FENDER COMP REAR,M S BLACK
$1168.25¢584 125
1
#35022
35022-0083-723
FENDER COMP REAR,C P BLUE
$1237.04¢618 522
1
#35022C
35022-0083-723
FENDER COMP REAR,C P BLUE
$1237.04¢618 522
1
#35022
35022-0083-816
FENDER COMP REAR,C F RED
$1237.04¢618 522
1
#35022
35022-0083-H8
FENDER COMP REAR,EBONY
$1237.04¢618 522
1
#39188
39188-0016
TAPE
$4.07¢2 035
1
#92009
92009-1332
SCREW,TAPPING,5X10
$3.59¢1 794
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1654
WASHER,6.5X16X1.0
$3.31¢1 656
1
#92071
92071-1187
GROMMET
$4.53¢2 266
1
#92071A
92071-1228
GROMMET
$6.09¢3 048
1
#92071B
92071-1265
GROMMET
$4.44¢2 219
1
#92075
92075-1067
DAMPER
$4.28¢2 139
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
