COWLING INNER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

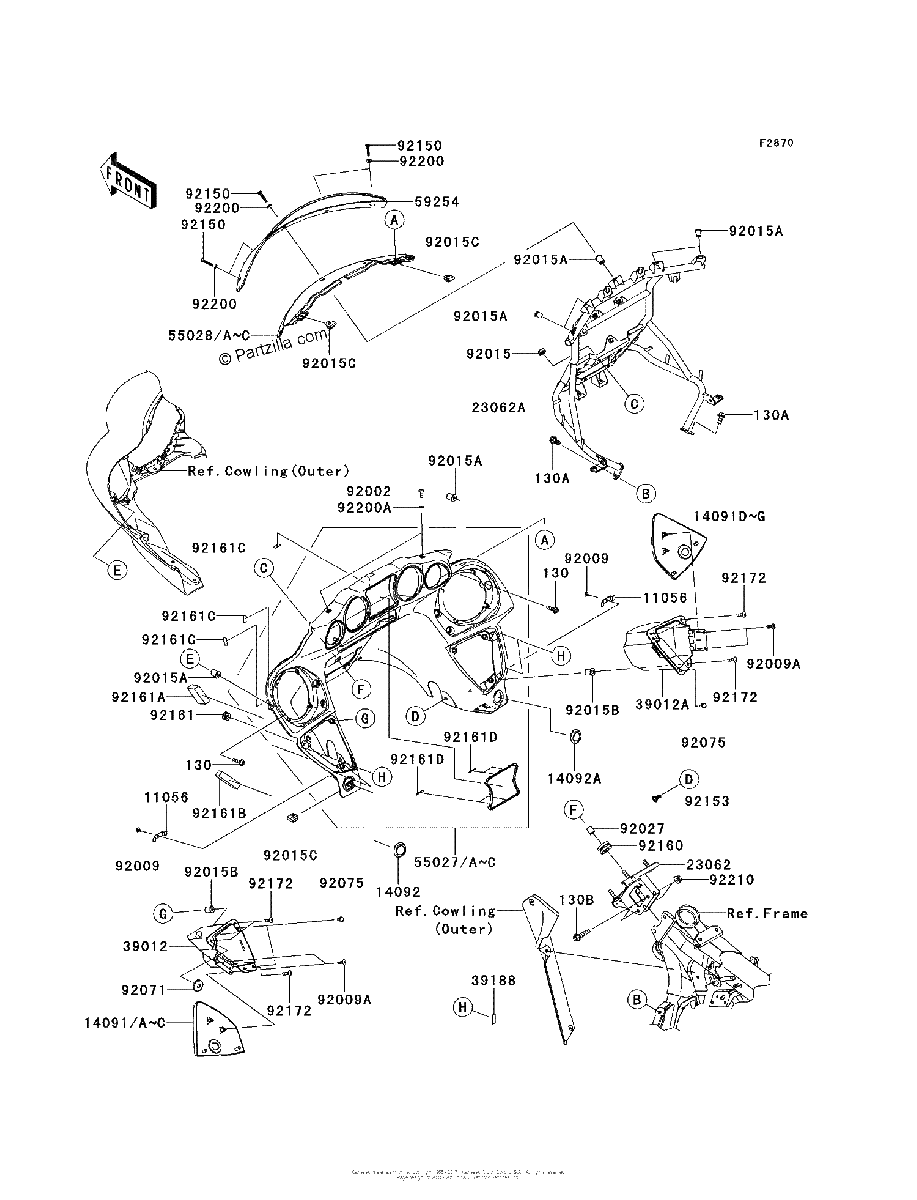

Diagrama de COWLING INNER

Repuestos

#130
130BB0622
BOLT-FLANGED,6X22
$3.35¢1 673
1
#130A
130BB0816
BOLT FLANGED,8X16
$1.53¢765
1
#130B
130BB0835
BOLT-FLANGED,8X35
$4.06¢2 030
1
#11056
11056-0373
BRACKET
$3.54¢1 771
1
#14091
14091-0946-816
COVER,STORAGE CASE,Left Hand,C F RED
$87.27¢43 637
1
#14091
14091-0946-723
COVER,STORAGE CASE,Left Hand,C P BLUE
$87.27¢43 637
1
#14091
14091-0946-6Z
COVER,STORAGE CASE,Left Hand,F BLACK
$23.44¢11 718
1
#14091
14091-0946-17P
COVER,STORAGE CASE,Left Hand,C L GRN
$87.27¢43 637
1
#14091B
14091-0946-723
COVER,STORAGE CASE,Left Hand,C P BLUE
$87.27¢43 637
1
#14091D
14091-0947-17P
COVER,STORAGE CASE,Right Hand,C L GRN
$87.27¢43 637
1
#14091D
14091-0947-6Z
COVER,STORAGE CASE,RH,F.BLACK
$23.44¢11 718
1
#14091D
14091-0947-723
COVER,STORAGE CASE,Right Hand,C P BLUE
$87.27¢43 637
1
#14091F
14091-0947-723
COVER,STORAGE CASE,Right Hand,C P BLUE
$87.27¢43 637
1
#14091D
14091-0947-816
COVER,STORAGE CASE,Right Hand,C F RED
$87.27¢43 637
1
#14092
14092-0213
COVER,SUB LAMP SW.
$6.15¢3 076
1
#14092A
14092-0214
COVER,DC SOCKET
$6.15¢3 076
1
#23062
23062-0105
BRACKET COMP,HEAD PIPE
$106.33¢53 164
1
#23062A
23062-0720
BRACKET-COMP,COWLING
$409.38¢204 689
1
#39012
39012-0027
CASE-STORAGE,LH
$62.92¢31 458
1
#39012A
39012-0028
CASE-STORAGE,RH
$59.90¢29 952
1
#39188
39188-0555
TAPE,10X30
$3.51¢1 754
1
#55027
55027-0063-723
COWLING Assembly,Upper,INNER,C P BLU
$1219.89¢609 943
1
#55027
55027-0063-6Z
COWLING-ASSY,UPP,INNER,BLACK
$744.56¢372 278
1
#55027
55027-0063-17P
COWLING Assembly,Upper,INNER,C L GRN
$1219.89¢609 943
1
#55027
55027-0063-816
COWLING Assembly,Upper,INNER,C F RED
$1219.89¢609 943
1
#55027B
55027-0063-723
COWLING Assembly,Upper,INNER,C P BLU
$1219.89¢609 943
1
#55028B
55028-0227-723
COWLING,CNT,C P BLUE
$145.11¢72 554
1
#55028
55028-0227-723
COWLING,CNT,C P BLUE
$145.11¢72 554
1
#55028
55028-0227-816
COWLING,CNT,C F RED
$145.11¢72 554
1
#55028
55028-0227-6Z
COWLING,CNT,F BLACK
$60.66¢30 331
1
#55028
55028-0227-17P
COWLING,CNT,C L GREEN
$145.11¢72 554
1
#59254
59254-0001
DEFLECTOR
$93.53¢46 765
1
#92002
92002-1700
BOLT,6X14
$5.65¢2 823
1
#92009A
92009-1332
SCREW,TAPPING,5X10
$3.59¢1 794
1
#92009
92009-1155
SCREW,TAPPING,4X8
$2.61¢1 305
1
#92015A
92015-1700
NUT
$7.84¢3 922
1
#92015B
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015C
92015-1904
NUT,CLIP,6MM
$5.91¢2 956
1
#92015
92015-1406
NUT,FLANGED,8MM
$4.06¢2 030
1
#92027
92027-012
COLLAR,8.8X12X14
$5.60¢2 800
1
#92071
92071-079
GROMMET,TAIL LAMP WIRE
$3.52¢1 759
1
#92075
92075-1808
DAMPER,6X10X15
$1.28¢638
1
#92150
92150-1554
BOLT,SOCKET,6X30
$5.01¢2 507
1
#92153
92153-1451
BOLT,SOCKET,6X15
$1.64¢822
1
#92160
92160-1007
DAMPER
$5.01¢2 507
1
#92161A
92161-0784
DAMPER
$2.43¢1 213
1
#92161B
92161-0785
DAMPER
$2.43¢1 213
1
#92161C
92161-0965
DAMPER
$1.55¢776
1
#92161D
92161-0996
DAMPER,3X25X0.3
$0.91¢454
1
#92161
92161-0317
DAMPER
$2.81¢1 403
1
#92172
92172-0428
SCREW,5X18
$0.93¢466
1
#92200A
92200-1465
WASHER,6.2X10X1
$1.44¢719
1
#92200
92200-1388
WASHER,6.5X14X1
$2.10¢1 052
1
#92210
92210-0004
NUT,FLANGED,8MM
$4.88¢2 438
1
