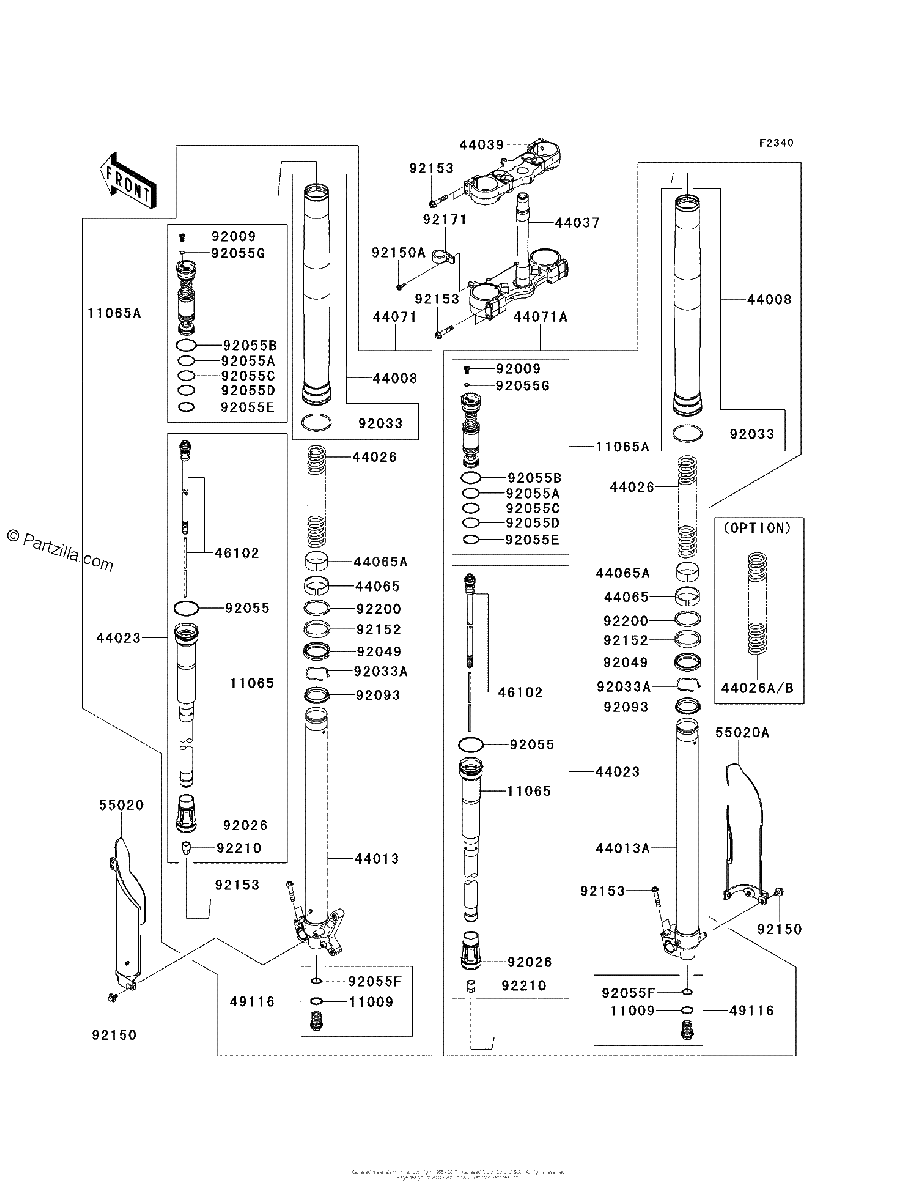

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11009
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
#11065
CAP,CYLINDER COMP
$300.87¢150 437
#11065A
CAP,BASE VALVE,BLUE
$300.87¢150 437
#44008
PIPE FORK OUTER
$748.42¢374 210
#44013
PIPE-FORK INNER,LH
$749.33¢374 664
#44013A
PIPE-FORK INNER,RH
$749.33¢374 664
#44023
CYLINDER SET FORK
$707.72¢353 861
#44026
SPRING-FRONT FORK,K=4.7N/MM
$104.71¢52 354
#44026A
SPRING FRONT FORK,K=4.6N/MM
$104.71¢52 354
#44026B
SPRING FRONT FORK,K=4.8N/MM
$104.71¢52 354
#44026A
SPRING FRONT FORK,K=4.8N/MM
$104.71¢52 354
#44037
HOLDER FORK UNDER,F BLACK
$709.12¢354 562
#44039
HOLDER FORK UPPER,F BLACK
$294.42¢147 211
#44065
BUSHING-FRONT FORK
$21.70¢10 850
#44065A
BUSHING-FRONT FORK
$22.67¢11 333
#44071
DAMPER Assembly,FORK,Left Hand
$1988.22¢994 112
#44071A
DAMPER Assembly,FORK,Right Hand
$1988.22¢994 112
#46102
ROD,PISTON
$681.39¢340 693
#49116
VALVE-ASSY
$231.95¢115 977
#55020
GUARD,FORK,Left Hand,EBONY
$64.43¢32 217
#55020A
GUARD,FORK,Right Hand,EBONY
$64.43¢32 217
#92009
SCREW
$7.05¢3 525
#92026
SPACER
$48.96¢24 478
#92033A
RING SNAP
$6.18¢3 088
#92033
RING SNAP
$4.42¢2 208
#92049
SEAL OIL
$25.41¢12 708
#92055E
RING-O
$5.13¢2 565
#92055A
RING-O
$5.32¢2 662
#92055B
RING O
$5.32¢2 662
#92055C
RING O
$5.32¢2 662
#92055D
RING O
$5.32¢2 662
#92055F
RING O
$1.30¢650
#92055G
RING O,2.8X6.6X1.9
$3.97¢1 984
#92055
RING O
$5.32¢2 662
#92093
SEAL,FORK OUTER TUBE
$20.13¢10 063
#92150A
BOLT,5X16
$4.76¢2 380
#92150
BOLT,6X14
$4.62¢2 311
#92152
COLLAR
$7.70¢3 852
#92153
BOLT,8X40
$5.08¢2 541
#92171
CLAMP
$8.20¢4 100
#92200
WASHER
$5.03¢2 513
#92210
NUT
$23.20¢11 598
