CHASSIS ELECTRICAL EQUIPMENT ACF

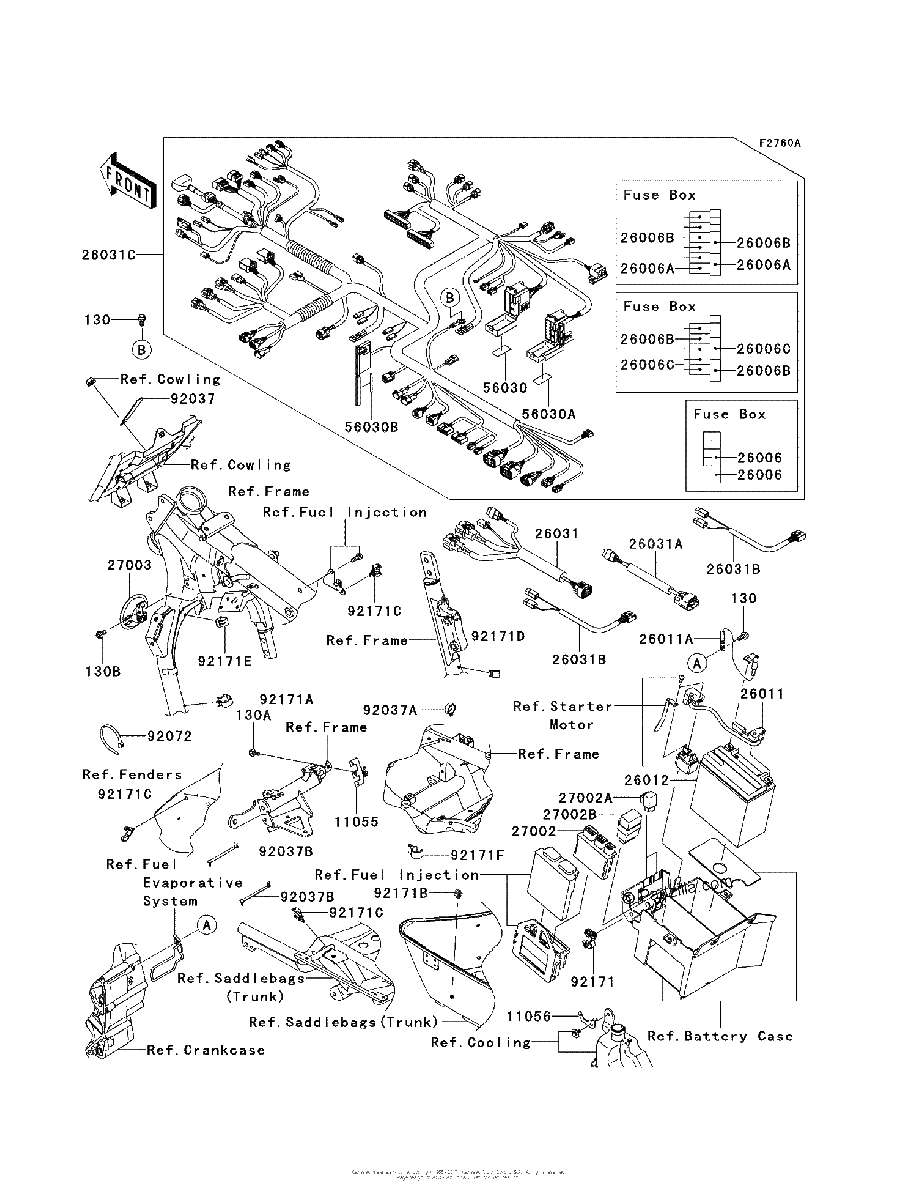

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X14
$1.26¢631
#130A
BOLT FLANGED,6X12
$2.19¢1 094
#130B
BOLT FLANGED,6X18
$1.74¢869
#11055
BRACKET,CONNECTOR
$9.66¢4 831
#11056
BRACKET,FUSE BOX
$4.90¢2 450
#26006C
FUSE,MINI BLADE,20A,YELLOW
$4.84¢2 419
#26006
FUSE,MINI BLADE,3A,VIOLET
$6.69¢3 344
#26006A
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
#26006B
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26011
WIRE-LEAD,BATTERY(+)
$70.99¢35 494
#26011A
WIRE-LEAD,BATTERY(-)
$67.58¢33 788
#26012
BATTERY,MF,FTZ16 BS,12V 18AH
No Disponible
#26031
HARNESS,Rear,SUB
$139.77¢69 887
#26031A
HARNESS,HIGH MOUNT LAMP
$52.30¢26 150
#26031B
HARNESS,SPEAKER
$10.89¢5 444
#26031C
HARNESS,MAIN
$1447.29¢723 644
#27002B
RELAY Assembly,SIGNAL LAMP
$147.95¢73 975
#27002A
RELAY-ASSY
$51.68¢25 838
#27002
RELAY-ASSY,BOX
No Disponible
#27003
HORN
$97.76¢48 881
#56030B
LABEL,FUSE BOX
$6.99¢3 494
#56030A
LABEL,FUSE BOX
$8.68¢4 338
#56030
LABEL,FUSE BOX
$6.96¢3 481
#92037B
CLAMP,SPEED,L=80.5
$7.80¢3 900
#92037A
CLAMP,HOSE
$7.41¢3 706
#92037
CLAMP,HARNESS,L=100
$8.85¢4 425
#92072
BAND,L=202
$1.51¢756
#92171E
CLAMP,15MM DIA.
$4.16¢2 081
#92171D
CLAMP,10MM DIA.
$4.39¢2 194
#92171C
CLAMP,13MM DIA.
$1.99¢994
#92171B
CLAMP
No Disponible
#92171A
CLAMP,20MM DIA.
$4.39¢2 194
#92171
CLAMP,CLIP,DIA=20
$2.68¢1 338
#92171F
CLAMP
$4.76¢2 381
