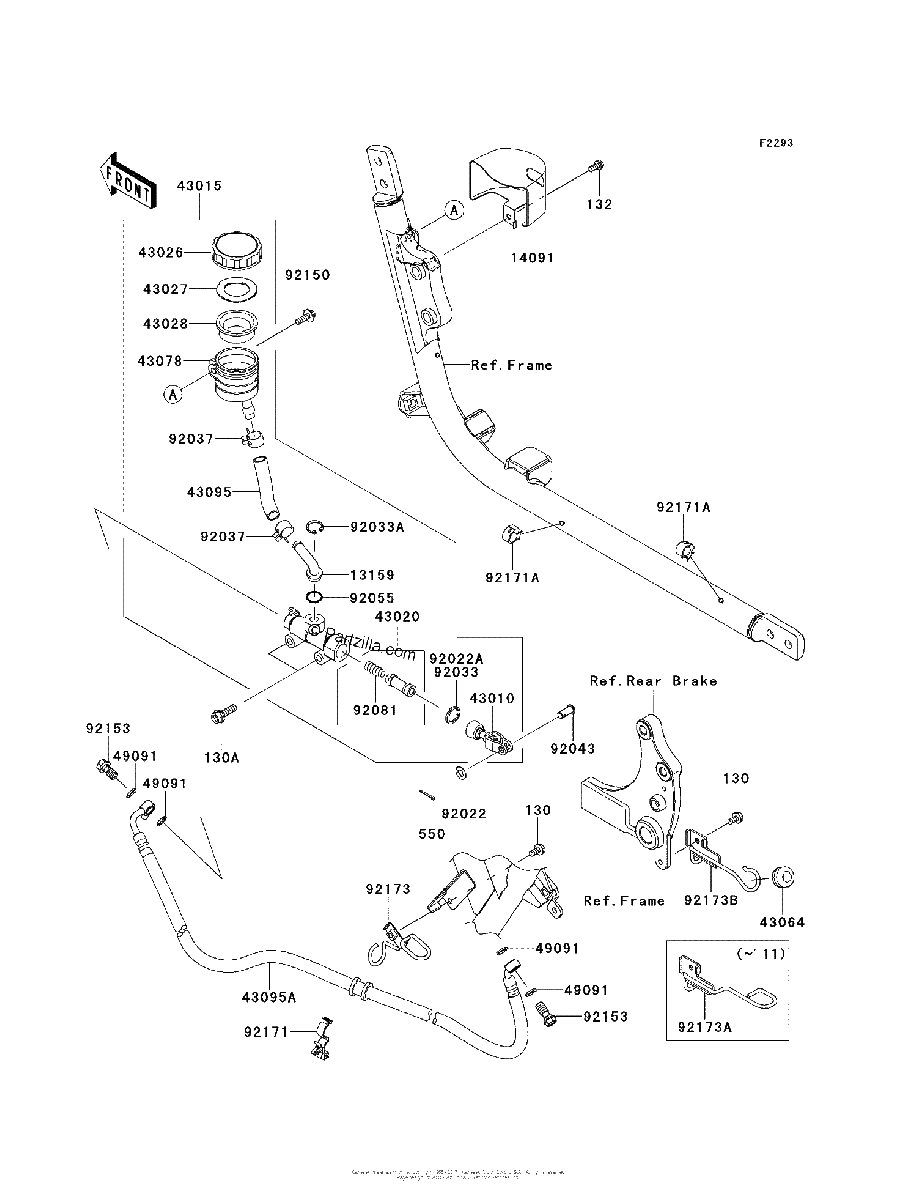

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X12
$2.01¢1 006
#130A
BOLT-FLANGED,8X25
$3.15¢1 576
#132
BOLT-FLANGED-SMALL,6X12
$1.78¢891
#550
PIN COTTER,2.0X15
$1.08¢541
#13159
CONNECTOR,RR MASTER CYLINDER
$14.42¢7 210
#14091
COVER,RESERVOIR TANK
$75.13¢37 565
#43010
ROD Assembly BRAKE
$53.67¢26 835
#43015
CYLINDER-ASSY-MASTER,RR
$305.51¢152 755
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP BRAKE
$35.82¢17 911
#43027
PLATE DIAPHRAGM
$4.84¢2 421
#43028
DIAPHRAGM,MASTER CYLINDER
$17.26¢8 631
#43064
GROMMET,HOSE CLAMP
$3.94¢1 972
#43078
RESERVOIR,Rear MASTER CYLINDER
$26.48¢13 242
#43095A
HOSE BRAKE,Rear
$168.22¢84 111
#43095
HOSE-BRAKE,RR MASTER CYLINDER
$16.47¢8 234
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92022A
RING-SNAP,20.9X24.6X1.2
No Disponible
#92022
WASHER,8.5X16X1.2
$0.97¢483
#92033A
RING-SNAP,20.5MM
$4.53¢2 266
#92033
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
#92037
CLAMP,BRAKE HOSE
$12.72¢6 360
#92043
PIN,8X16
$9.04¢4 520
#92055
RING-O,14.8X2.4
No Disponible
#92081
SPRING,MASTER CYLINDER
$12.59¢6 296
#92150
BOLT,6X20
$4.01¢2 007
#92153
BOLT,OIL,L=23
$4.98¢2 490
#92171A
CLAMP,15MM DIA.
$3.83¢1 915
#92171
CLAMP
$3.58¢1 788
#92173A
CLAMP,BRAKE HOSE
$25.55¢12 776
#92173B
CLAMP,CALIPER HOLDER
$23.64¢11 822
#92173
CLAMP,BRAKE HOSE
$26.25¢13 127
