MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

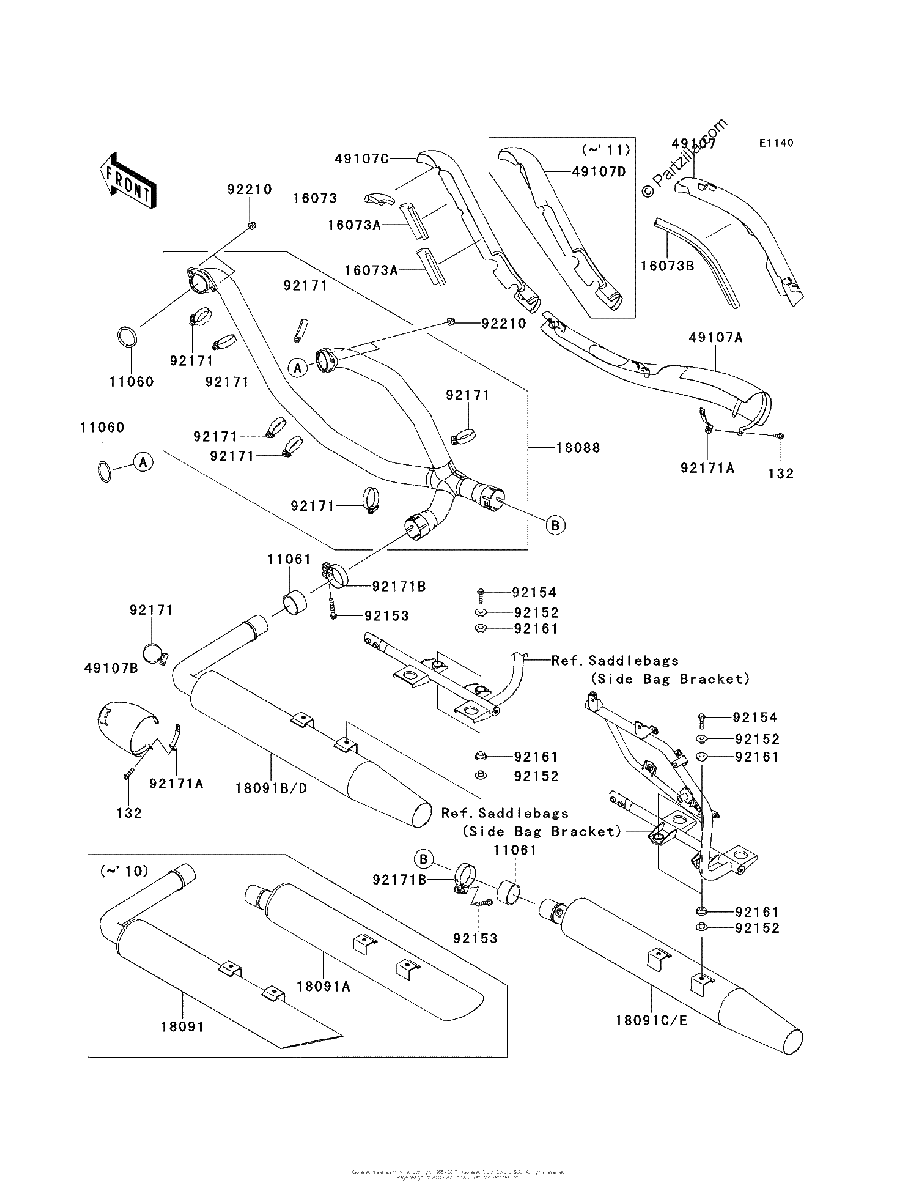

Diagrama de MUFFLER S

Repuestos

#132
132BC0620
BOLT-FLANGED-SMALL,6X20
$1.08¢541
1
#11060
11060-1119
GASKET,EXHAUST PIPE
$8.74¢4 370
1
#11061
11061-0240
GASKET,MUFFLER CONNECTING
$36.14¢18 072
1
#16073B
16073-0128
INSULATOR
$59.68¢29 842
1
#16073A
16073-0126
INSULATOR
$15.17¢7 584
1
#16073
16073-0125
INSULATOR
$12.19¢6 095
1
#18088
18088-0414
PIPE EXHAUST
$790.96¢395 479
1
#18091E
18091-0834
BODY COMP MUFFLER,Right Hand
$1212.97¢606 487
1
#18091C
18091-0834
BODY COMP MUFFLER,Right Hand
$1212.97¢606 487
1
#18091B
18091-0833
BODY COMP MUFFLER,Left Hand
$1212.97¢606 487
1
#18091D
18091-0833
BODY COMP MUFFLER,Left Hand
$1212.97¢606 487
1
#18091C
18091-0716
BODY COMP MUFFLER,Right Hand
$1235.40¢617 700
1
#18091B
18091-0715
BODY-COMP-MUFFLER,LH
$1235.40¢617 700
1
#18091A
18091-0606
BODY COMP MUFFLER,Right Hand
No Disponible
1
#18091
18091-0605
BODY COMP MUFFLER,Left Hand
$1245.77¢622 886
1
#49107
49107-0122
COVER-EXHAUST PIPE,RR
No Disponible
1
#49107D
49107-0172
COVER EXHAUST PIPE,Front F
$369.18¢184 592
1
#49107C
49107-0166
COVER-EXHAUST PIPE,FR-F
No Disponible
1
#49107B
49107-0154
COVER-EXHAUST PIPE,LH
No Disponible
1
#49107A
49107-0153
COVER-EXHAUST PIPE,FR-R
No Disponible
1
#92152
92152-0082
COLLAR,8.8X12X10.6
$10.56¢5 278
1
#92153
92153-0702
BOLT,8X45
$2.98¢1 489
1
#92154
92154-0136
BOLT,FLANGED,8X32
$2.17¢1 087
1
#92161
92161-0135
DAMPER
$2.85¢1 426
1
#92171B
92171-0358
CLAMP
$27.01¢13 507
1
#92171A
92171-0294
CLAMP
$15.90¢7 952
1
#92171
92171-0072
CLAMP
$10.15¢5 077
1
#92210
92210-1132
NUT,CAP,8MM
$3.83¢1 915
1
