HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

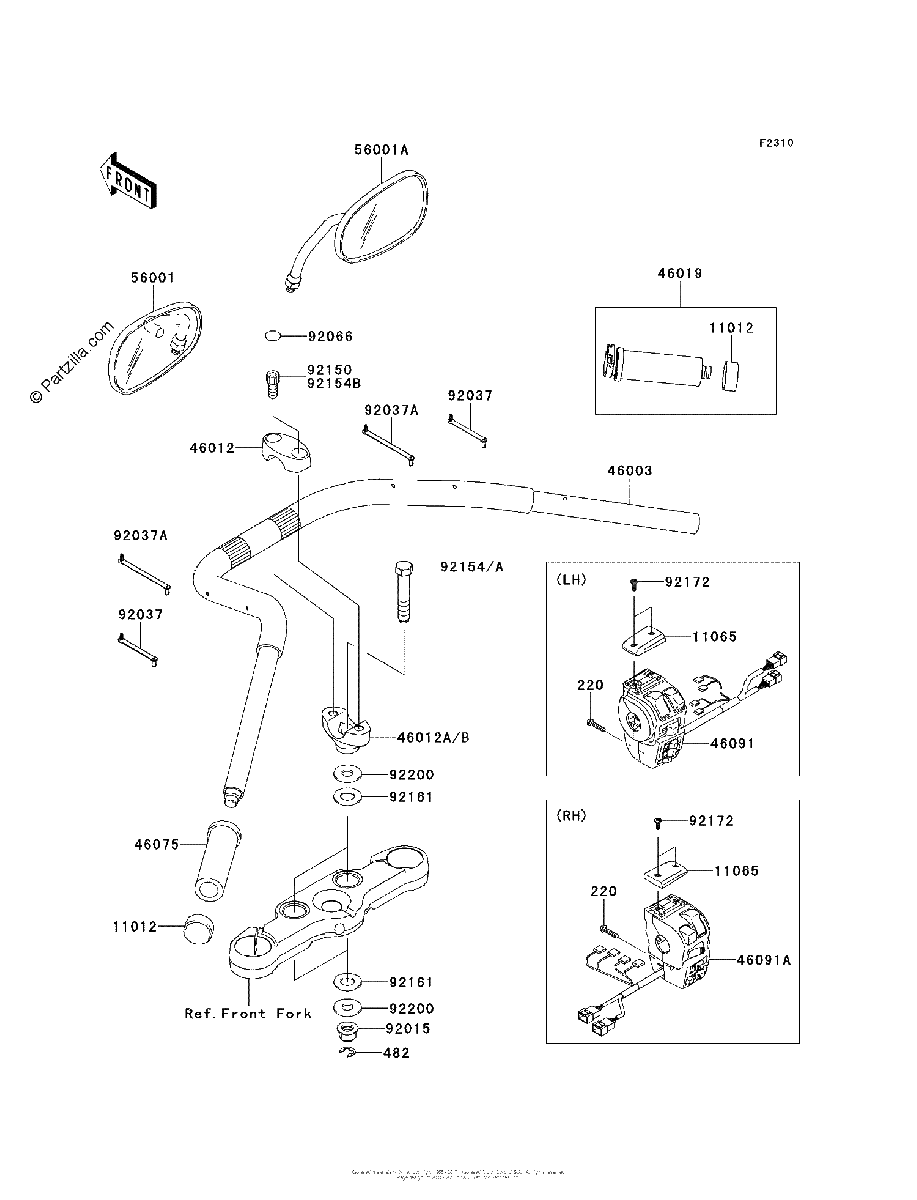

Diagrama de HANDLEBAR

Repuestos

#220
220AB0525
SCREW PAN CROS,5X25
$3.46¢1 731
1
#482
482EA0100
CIRCLIP-TYPE-E,10MM
$1.10¢550
1
#11012
11012-1975
CAP,GRIP END
$21.56¢10 781
1
#11065
11065-0270
CAP,HOUSING SWITCH
$51.85¢25 925
1
#46003
46003-0174
HANDLE
No Disponible
1
#46012
46012-0072
HOLDER-HANDLE,UPP
$144.49¢72 244
1
#46012A
46012-0083
HOLDER HANDLE,Lower
$144.63¢72 313
1
#46012B
46012-0083
HOLDER HANDLE,Lower
$144.63¢72 313
1
#46012A
46012-0077
HOLDER HANDLE,Lower
$158.20¢79 100
1
#46019
46019-1109
GRIP Assembly,THROTTLE
$78.96¢39 481
1
#46075
46075-1074
GRIP,Left Hand
$25.86¢12 931
1
#46091
46091-0141
HOUSING-ASSY-CONTROL,LH
$597.39¢298 694
1
#46091A
46091-0142
HOUSING-ASSY-CONTROL,RH
No Disponible
1
#56001A
56001-0033
MIRROR Assembly,Right Hand
$80.30¢40 150
1
#56001
56001-0032
MIRROR Assembly,Left Hand
$80.30¢40 150
1
#92015
92015-1401
NUT,FLANGED,14MM
$11.29¢5 644
1
#92037A
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92037
92037-1163
CLAMP,SPEED,L=58
$6.42¢3 213
1
#92066
92066-1285
PLUG
$7.72¢3 863
1
#92150
92150-1942
BOLT,SOCKET,10X23
$7.30¢3 650
1
#92154B
92154-0350
BOLT,SOCKET,10X25
$4.84¢2 419
1
#92154A
92154-0318
BOLT,UPSET,14X77
$24.06¢12 031
1
#92154
92154-0278
BOLT,UPSET,14X79
$5.81¢2 906
1
#92154
92154-0318
BOLT,UPSET,14X77
$24.06¢12 031
1
#92161
92161-0836
DAMPER,18X35X2.2
$2.91¢1 456
1
#92172
92172-0420
SCREW,4X12
$1.38¢688
1
#92200
92200-0534
WASHER,14.2X35X2.3
$3.65¢1 825
1
