RADIATOR EBF EEF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

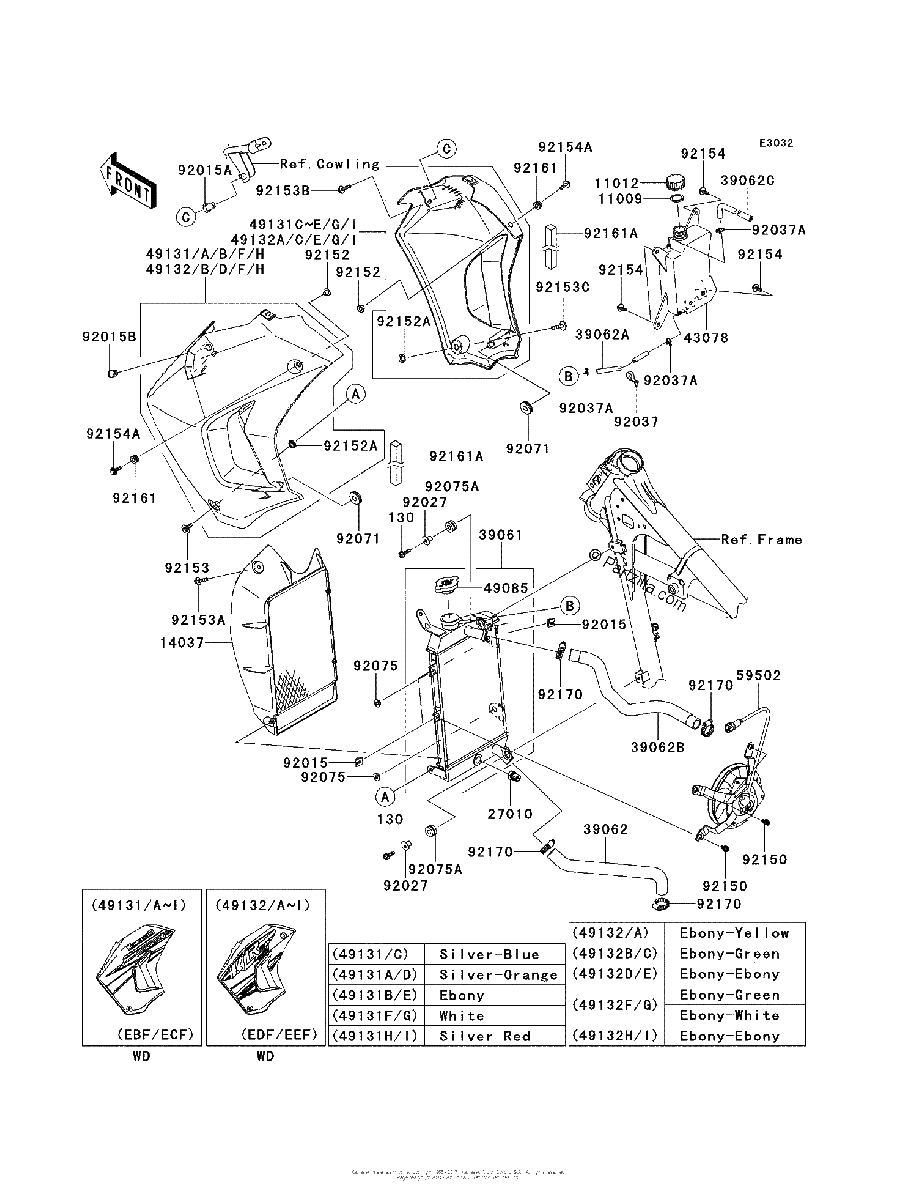

Diagrama de RADIATOR EBF EEF

Repuestos

#130
130BA0620
BOLT-FLANGED,6X20
$1.54¢771
1
#11009
11009-1145
GASKET,RESERVOIR TANK CAP
$1.30¢650
1
#11012
11012-1084
CAP
$1.51¢753
1
#14037
14037-0056
SCREEN
$64.84¢32 419
1
#27010
27010-1443
SWITCH
$141.81¢70 903
1
#39061
39061-0098
RADIATOR-ASSY
$1171.38¢585 689
1
#39062
39062-0149
HOSE-COOLING,W/P-RAD.
$42.52¢21 258
1
#39062A
39062-0340
HOSE COOLING,RESERVOIR CAP
$15.33¢7 665
1
#39062B
39062-0341
HOSE-COOLING,HEAD-RAD.
$53.58¢26 789
1
#39062C
39062-1220
HOSE COOLING,RESERVOIR
$25.64¢12 823
1
#43078
43078-0072
RESERVOIR
$71.50¢35 748
1
#49085
49085-1070
CAP-ASSY-PRESSURE,P1.1
$52.92¢26 462
1
#49131
49131-5457-X1
SHROUD ENGINE,Left Hand,G SILVER
$368.70¢184 351
1
#49131
49131-5455-15S
SHROUD ENGINE,Left Hand,P S WHITE
$365.01¢182 505
1
#49131
49131-5358-H8
SHROUD-ENGINE,LH,EBONY
$368.70¢184 351
1
#49131
49131-5357-X1
SHROUD-ENGINE,LH,G.SILVER
$368.70¢184 351
1
#49131
49131-5356-X1
SHROUD ENGINE,Left Hand,G SILVER
$368.70¢184 351
1
#49131E
49131-5361-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49131B
49131-5358-H8
SHROUD-ENGINE,LH,EBONY
$368.70¢184 351
1
#49131C
49131-5359-X1
SHROUD-ENGINE,RH,G.SILVER | [CA,US]
$368.70¢184 351
1
#49131C
49131-5360-X1
SHROUD ENGINE,Right Hand,G SILVER
$365.01¢182 505
1
#49131C
49131-5361-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49131F
49131-5455-15S
SHROUD ENGINE,Left Hand,P S WHITE
$365.01¢182 505
1
#49131G
49131-5456-15S
SHROUD ENGINE,Right Hand,P S WHITE
$368.70¢184 351
1
#49131C
49131-5456-15S
SHROUD ENGINE,Right Hand,P S WHITE
$368.70¢184 351
1
#49131H
49131-5457-X1
SHROUD ENGINE,Left Hand,G SILVER
$368.70¢184 351
1
#49131I
49131-5458-X1
SHROUD ENGINE,Right Hand,G SILVER
$368.70¢184 351
1
#49131C
49131-5458-X1
SHROUD ENGINE,Right Hand,G SILVER
$368.70¢184 351
1
#49132A
49132-5041-H8
SHROUD ENGINE,Right Hand,EBONY
$339.70¢169 849
1
#49132
49132-5073-H8
SHROUD ENGINE,Left Hand,EBONY
$368.70¢184 351
1
#49132A
49132-5074-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49132
49132-5075-H8
SHROUD ENGINE,Left Hand,EBONY
$368.70¢184 351
1
#49132A
49132-5076-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49132
49132-5040-H8
SHROUD ENGINE,Left Hand,EBONY
$339.70¢169 849
1
#49132
49132-5038-H8
SHROUD ENGINE,Left Hand,EBONY
$368.70¢184 351
1
#49132A
49132-5039-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49132
49132-5036-H8
SHROUD ENGINE,Left Hand,EBONY
$339.70¢169 849
1
#49132A
49132-5037-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#59502
59502-0583
FAN Assembly
$557.39¢278 697
1
#92015A
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92015B
92015-1700
NUT
$7.84¢3 922
1
#92015
92015-1487
NUT
$4.36¢2 179
1
#92027
92027-1183
COLLAR,6.5X10X14.1
$5.01¢2 507
1
#92037A
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92037
92037-1163
CLAMP,SPEED,L=58
$5.91¢2 956
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92075A
92075-209
DAMPER
$4.28¢2 139
1
#92075
92075-1138
DAMPER,8MM
$3.31¢1 656
1
#92150
92150-1186
BOLT,6X12
$3.06¢1 529
1
#92152A
92152-1235
COLLAR
$3.78¢1 892
1
#92152
92152-0237
COLLAR,6.3X8.3X9.2
$5.12¢2 559
1
#92153A
92153-1008
BOLT,FLANGED WP,6X25
$2.32¢1 162
1
#92153B
92153-1457
BOLT,FLANGED,6X30
$2.92¢1 461
1
#92153C
92153-1895
BOLT,6X30
$3.78¢1 892
1
#92153
92153-0864
BOLT,6X20
$6.80¢3 398
1
#92154A
92154-0392
BOLT,FLANGED,6X20
$2.53¢1 265
1
#92154
92154-0391
BOLT,6X16
$1.71¢857
1
#92161A
92161-0509
DAMPER
$20.79¢10 396
1
#92161
92161-0056
DAMPER
$2.85¢1 426
1
#92170
92170-1033
CLAMP,COOLING HOSE
$13.79¢6 894
1
