FOOTRESTS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

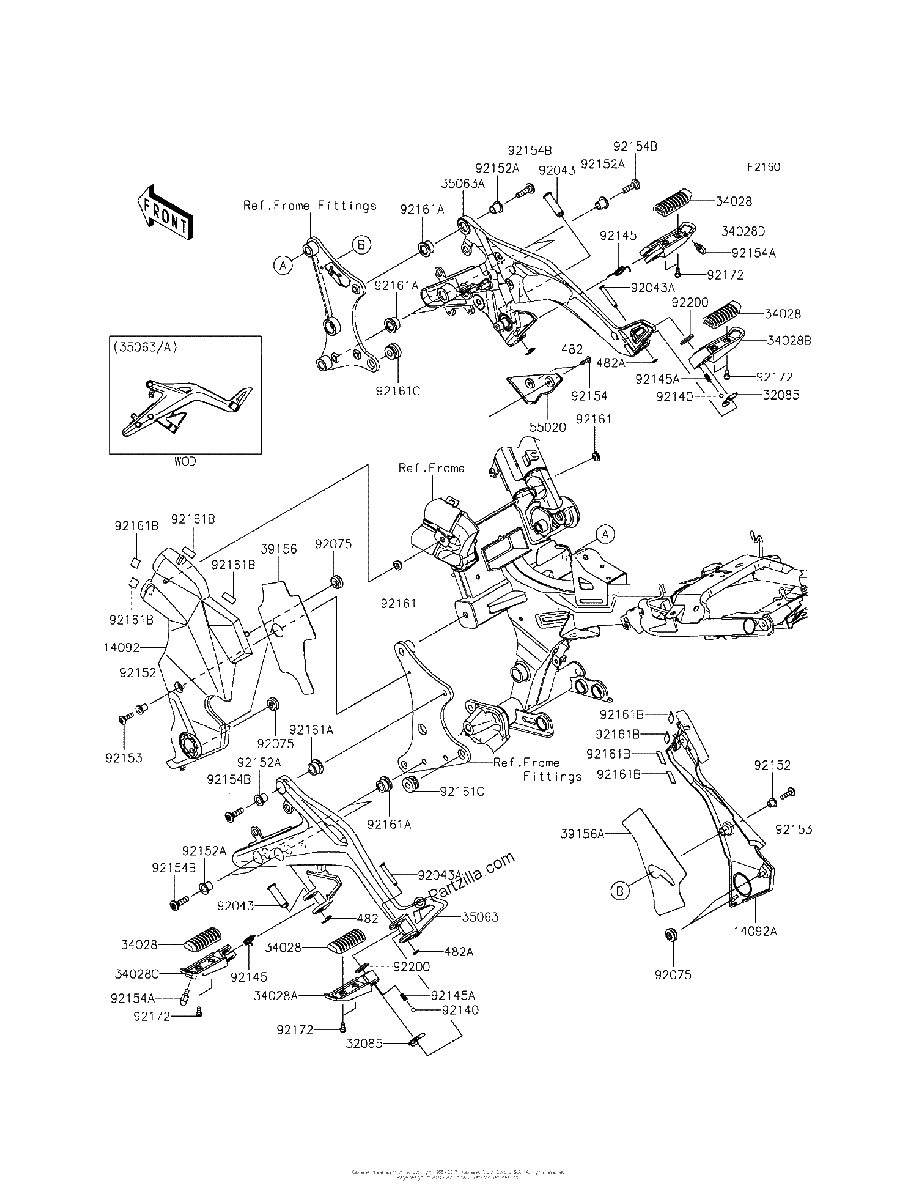

Diagrama de FOOTRESTS

Repuestos

#482A
482EA5000
CIRCLIP-TYPE-E
$1.24¢621
1
#482
482EA0100
CIRCLIP-TYPE-E,10MM
$1.01¢506
1
#14092
14092-0738
COVER,PIVOT,Left Hand
$54.61¢27 307
1
#14092A
14092-0739
COVER,PIVOT,Right Hand
$49.96¢24 978
1
#32085
32085-0047
STOPPER,REAR STEP
$5.07¢2 536
1
#34028D
34028-0328
STEP,FR,RH
$38.33¢19 165
1
#34028C
34028-0327
STEP,Front,Left Hand
$38.33¢19 165
1
#34028B
34028-0315
STEP,RR,RH
$47.87¢23 937
1
#34028A
34028-0314
STEP,Rear,Left Hand
$47.87¢23 937
1
#34028
34028-0133
STEP,RUBBER
$13.50¢6 751
1
#35063A
35063-0872-18R
STAY,STEP,RH,F.S.BLACK
$405.54¢202 768
1
#35063
35063-0871-18R
STAY,STEP,LH,F.S.BLACK
$373.59¢186 795
1
#39156A
39156-0818
PAD,PIVOT COVER,RH
$8.95¢4 474
1
#39156
39156-0817
PAD,PIVOT COVER,LH
$10.06¢5 031
1
#55020
55020-0742
GUARD,STEP STAY,Right Hand
$15.75¢7 877
1
#92043A
92043-0200
PIN,6X40
$2.53¢1 265
1
#92043
92043-0026
PIN,12X37.5
$5.07¢2 536
1
#92075
92075-1067
DAMPER
$4.28¢2 139
1
#92140
92140-0008
BALL,6.35MM
No Disponible
1
#92145A
92145-1319
SPRING
$1.60¢799
1
#92145
92145-0723
SPRING,STEP RETURN
$3.35¢1 673
1
#92152A
92152-0976
COLLAR,10.6X13.8X15
$3.75¢1 874
1
#92152
92152-0975
COLLAR,6.8X10X15.1
$2.63¢1 317
1
#92153
92153-1267
BOLT,SOCKET,6X23
$2.37¢1 185
1
#92154B
92154-0842
BOLT,SOCKET,8X30
$3.75¢1 874
1
#92154A
92154-0838
BOLT,BANK SENSOR
$4.84¢2 421
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92161C
92161-1523
DAMPER
$3.52¢1 759
1
#92161B
92161-1407
DAMPER,12X20X1
$0.87¢437
1
#92161A
92161-0946
DAMPER,14X26X13.9
$1.49¢747
1
#92161
92161-0631
DAMPER
$6.75¢3 375
1
#92172
92172-0473
SCREW-PAN-WP-CROS,5X14
$1.99¢995
1
#92200
92200-0772
WASHER,16X26X2.3
$3.54¢1 771
1
