TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

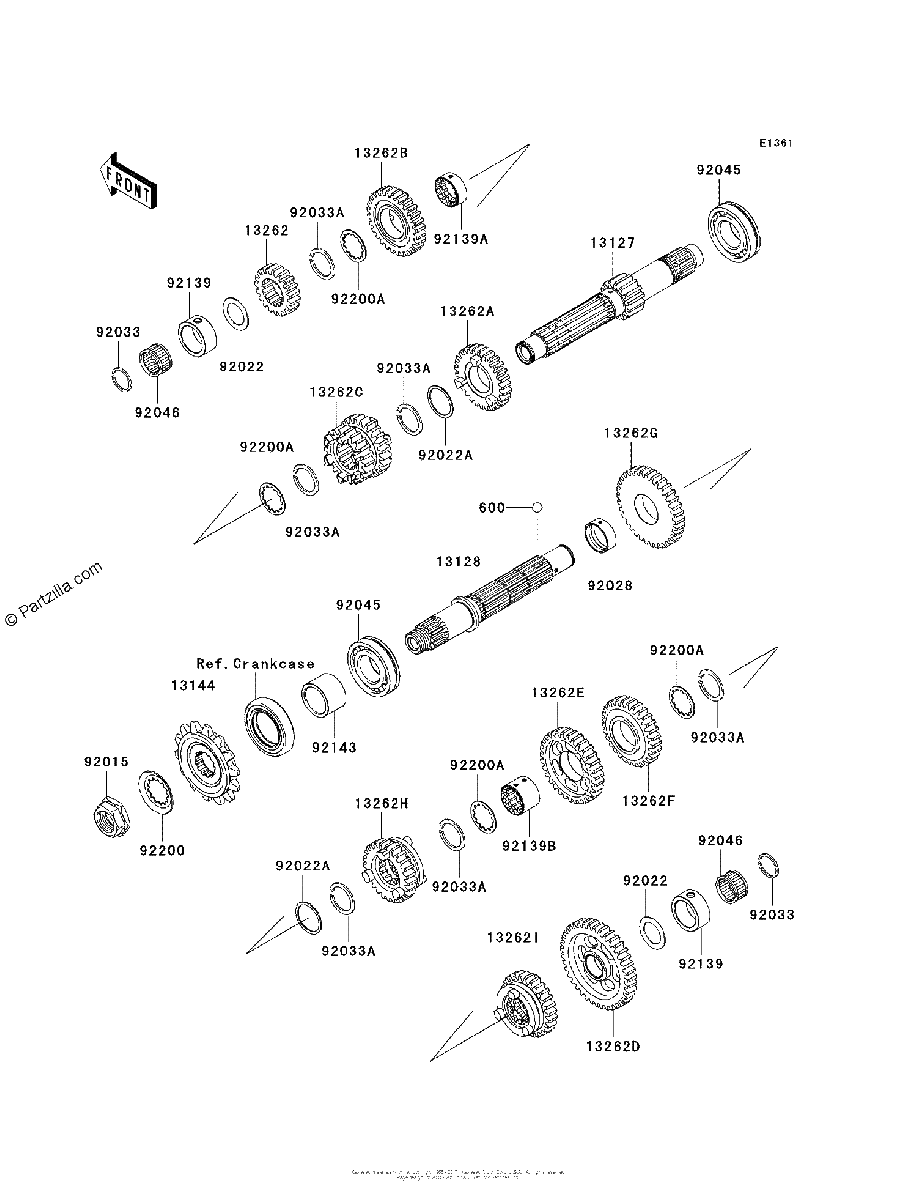

Diagrama de TRANSMISSION

Repuestos

#600
600A0500
BALL-STEEL,5/32
$0.82¢408
1
#13127
13127-0051
SHAFT TRANSMISSION INPUT,15T
$248.19¢124 096
1
#13128
13128-0037
SHAFT TRANSMISSION OUTPUT
$200.27¢100 136
1
#13144
13144-0054
SPROCKET-OUTPUT,14T
No Disponible
1
#13262I
13262-0470
GEAR,OUTPUT 5TH,27T
$142.92¢71 461
1
#13262
13262-0461
GEAR,INPUT 2ND,19T
$71.43¢35 713
1
#13262H
13262-0469
GEAR,OUTPUT TOP,25T
$132.47¢66 234
1
#13262A
13262-0462
GEAR,INPUT 5TH,27T
$102.26¢51 129
1
#13262B
13262-0463
GEAR,INPUT TOP,28T
$114.41¢57 207
1
#13262C
13262-0464
GEAR,INPUT 3RD4TH,22T25T
$155.01¢77 504
1
#13262G
13262-0468
GEAR,OUTPUT 2ND,34T
$96.04¢48 018
1
#13262D
13262-0465
GEAR,OUTPUT LOW,39T
$132.30¢66 148
1
#13262E
13262-0466
GEAR,OUTPUT 3RD,31T
$96.04¢48 018
1
#13262F
13262-0467
GEAR,OUTPUT 4TH,29T
$96.04¢48 018
1
#92015
92015-1963
NUT,20MM
$13.56¢6 779
1
#92022A
92022-161
WASHER,25.3X30X1
$9.71¢4 853
1
#92022
92022-112
WASHER,20.5X30X1,STEEL
$8.10¢4 048
1
#92028
92028-1564
BUSHING,9.4X25X28
$21.94¢10 971
1
#92033A
92033-026
RING SNAP,24MM
$8.03¢4 013
1
#92033
92033-015
RING-SNAP,20MM
$3.90¢1 949
1
#92045
92045-1013
BEARING BALL,#6205NX3
$23.63¢11 816
1
#92046
92046-044
BEARING-NEEDLE,20R2513P
$22.87¢11 437
1
#92139B
92139-0297
BUSHING,21.7X28X20
$31.21¢15 606
1
#92139A
92139-0294
BUSHING,21.7X28X11
$24.77¢12 385
1
#92139
92139-0293
BUSHING,25X33X14
$42.52¢21 258
1
#92143
92143-1968
COLLAR,SPROCKET
$22.45¢11 224
1
#92200
92200-0506
WASHER
No Disponible
1
#92200A
92200-1389
WASHER
$2.01¢1 006
1
